Maintenance and Cleaning
Install the printhead
128

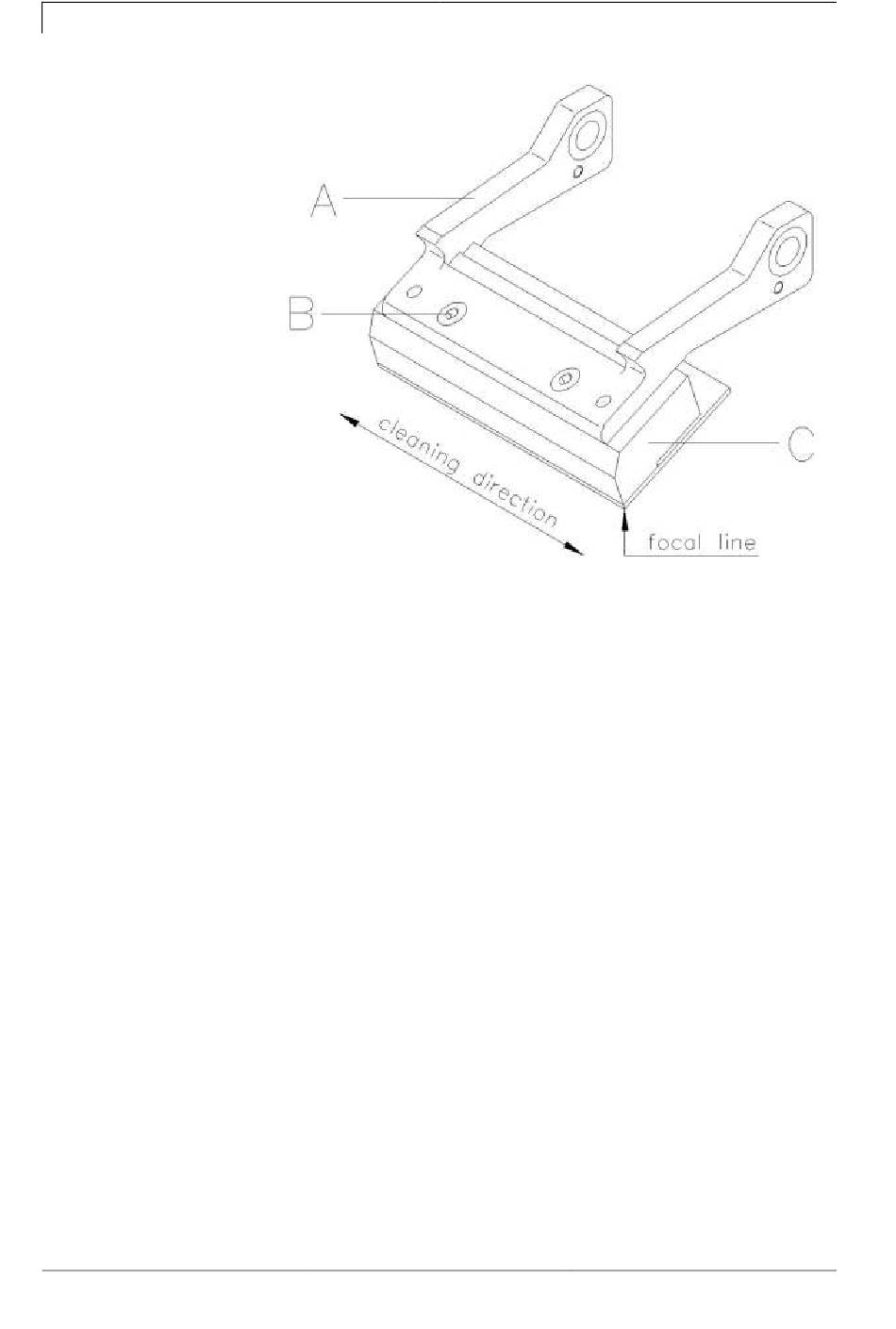

Figure 25
1. Insert the connection assembly to the new printhead.
2. Position the printhead in the printhead support (A), so the
engaging pieces catch in the appropriate holes in the printhead
support (A).
3. Hold the printhead holder (A) with a finger slightly on the pressure
roll and check the correct position of printhead (C).
4. Screw in the screw (B) and tighten it with an Allen key.
5. Insert again ribbon cassette (see chapter 8, page 43).
6. Enter the resistance value of the new printhead in the menu
Service Functions/Heater resistance. The value is indicated on the
type plate of printhead.
7. Start a test print to check printhead position.
