Print offset
X-Shift
Y-Shift
Lane repeats
Lane repeat shift
Example

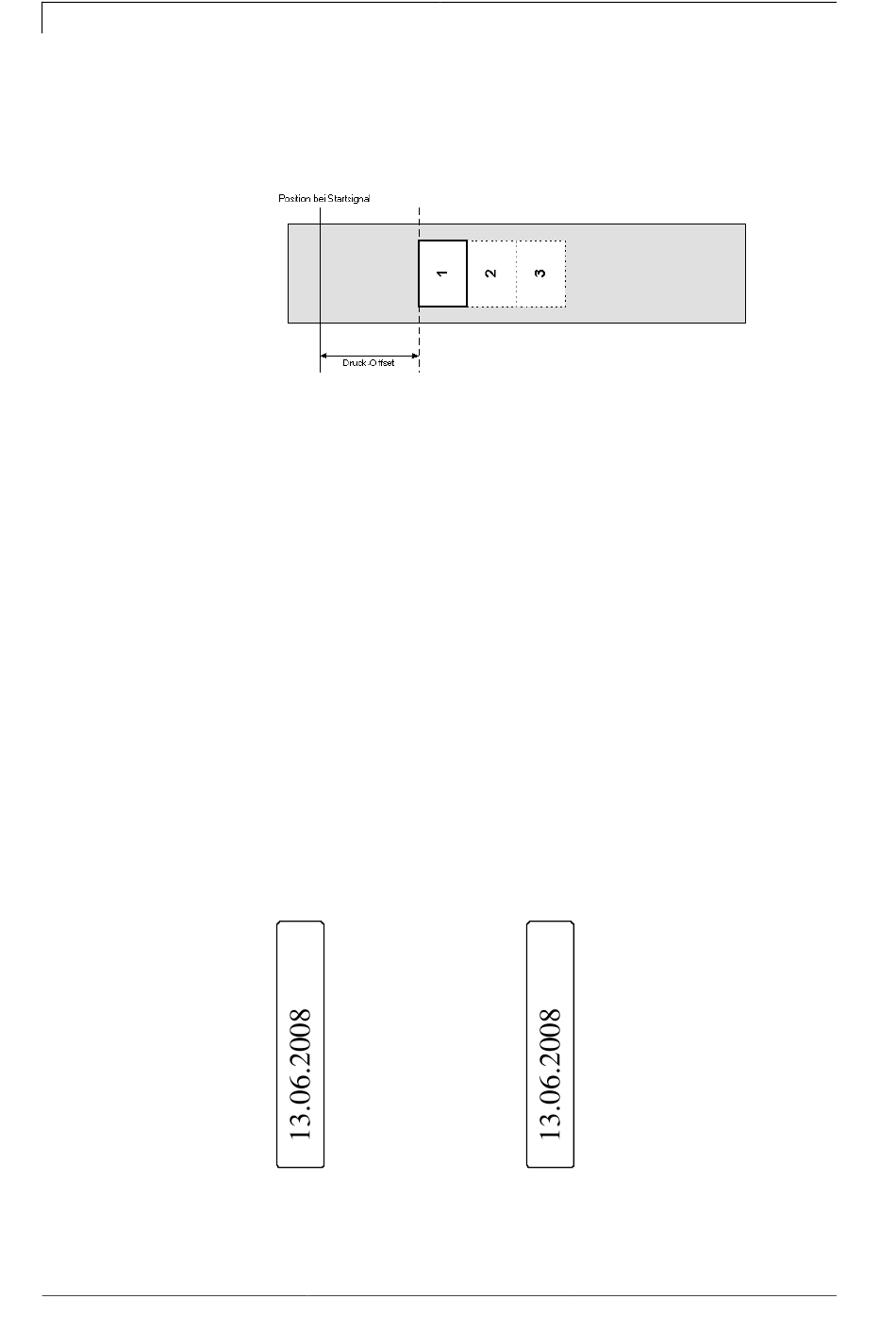

Layout
88
Indication of distance of the layout (res. the first layout in case more
layouts per cycles are to be printed) to the zero point of machine.
Settings possible either in mm or ms.
Value range: 1 ... 999 mm

10.14.2 Ribbon Saving SHIFT Parameters

Indication of displacement of the printout in X direction. The printout
can be displaced by the entry of a positive or negative value in both
directions.
Indication of displacement of the printout in printing direction. Enter
value 0 in order to achieve a print result in which the columns are
arranged side by side on the transfer ribbon.
Indication of number of lanes printed side by side.
Indication of distance when changing to a new lane.
X-Shift: 2 mm; Y-Shift: −3 mm
Lanes: 2; R-Shift: −5
Operating Manual
X-Shift: 2 mm; Y-Shift: −3 mm
Lanes: 2; R-Shift: +3 mm
