Dynacode II IP
Unit of print offset

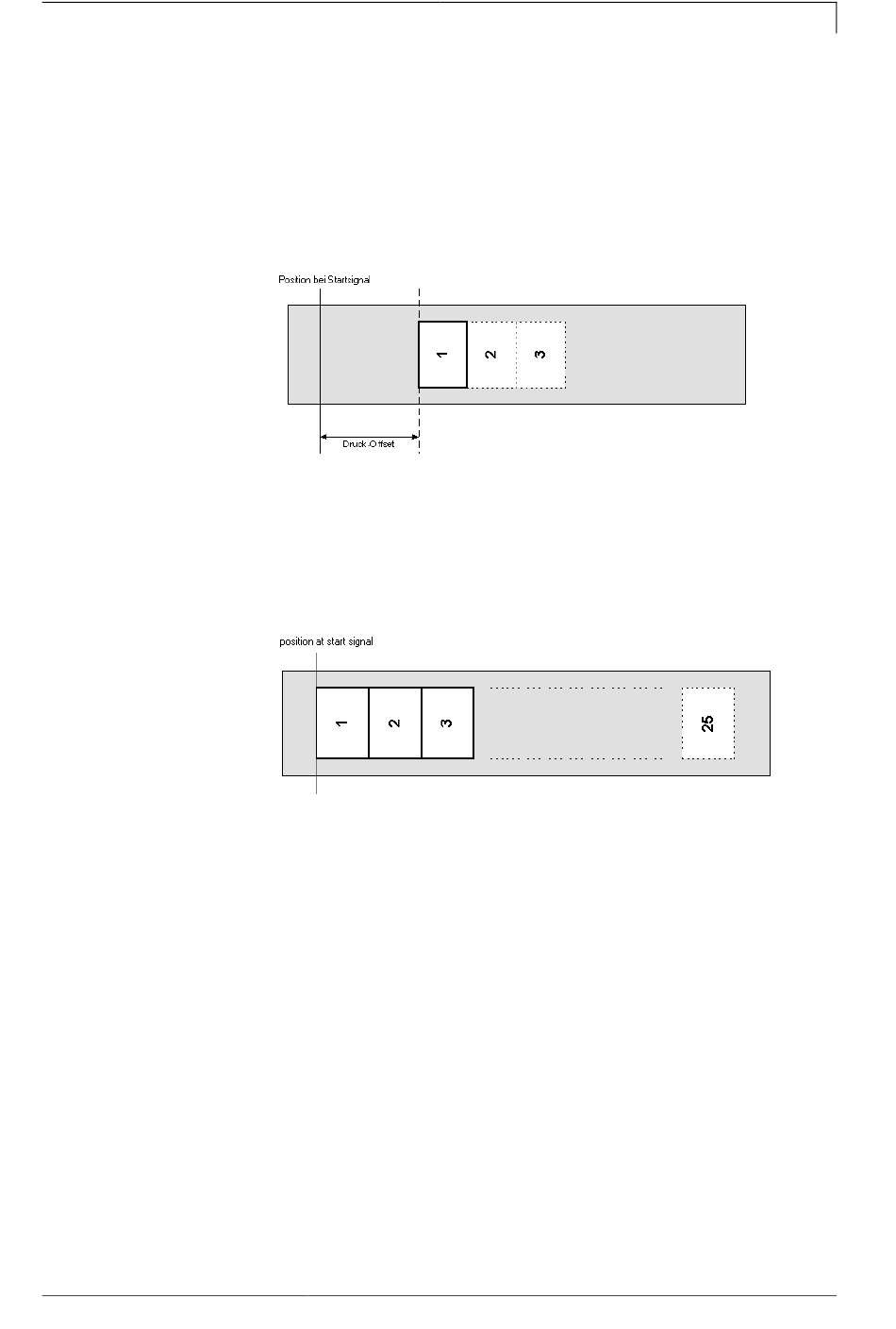

Print offset
Print position
Layouts/cycle
Resolution
Material feed 360
degrees
Material speed
03.21
Selection for the unit of print offset.
It is possible to choose between mm or ms.
Indication of distance of the layout (res. the first layout in case more
layouts per cycles are to be printed) to the zero point of machine.
Settings possible either in mm or ms.
Value range: 1 ... 999 mm
Indication of position of print carriage in mm.
Value range: 12 ... 93 mm
Indication of number of printed layouts per print start (cycle).
Value range: 1 ... 25.
Indication of resolution of used encoder.
Indication of material feed per rotation of encoder in mm. These
settings help measuring the material speed.
The material feeding per encoder rotation corresponds for instance, in
a 1:1 translation between the encoder and the roller, to the roller
circumference.
Indication of material speed in mm/s (only for reading purposes).
Value range: 12 ... 93 mm/s
