Carl Valentin DYNACODE II IP53 Operating Manual page 39

Dynacode II IP
03.21
NOTICE!
Check that all cables are safely enclosed by the grommets (M) so
that no water or dust can enter. Too large grommets and loose
cables lead to entering of impurities into the case.
Suitable cable grommets in different sizes are available ex works.
The size (diameter) is indicated on the respective grommet.
O

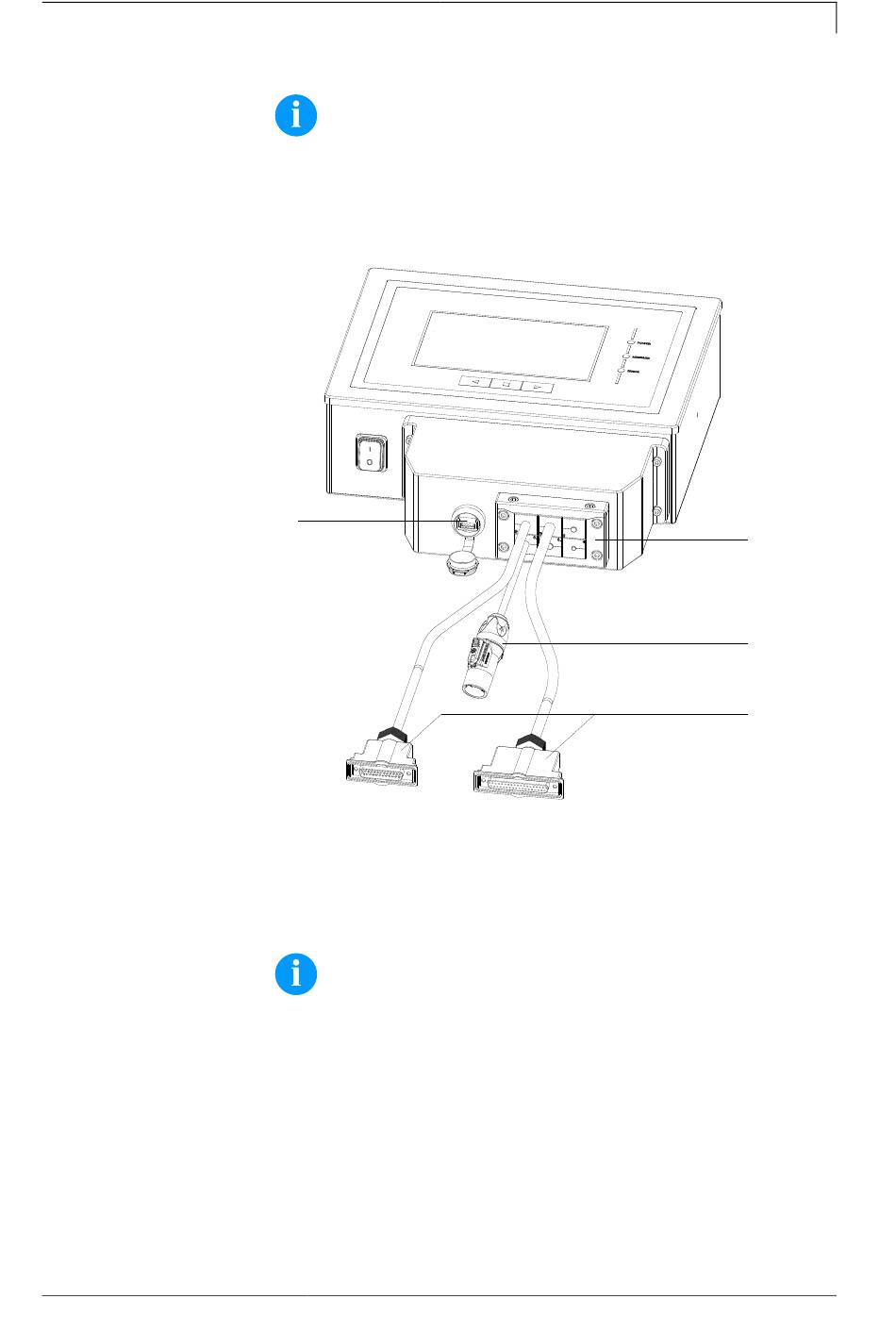

Figure 17
For loading of print data, the integrated USB interface (O) is
accessible from the outside.
NOTICE!
The protection class IP 65 is only achieved if the cap of the
interface is firmly closed, i.e. no USB stick or data cable is
inserted.
Do not bend the connection cable (D, F and others) directly at the
cable entry strip (K).
Operating Manual
Installation and Initial Operation
K
D
F
39
