Machine Overview

The continuous and intermittent operating direct print module is a
direct print module with high resolution for installation in horizontal and
vertical packaging machines. Not only the easy to change ribbon
cassette and/or cleaning cassette is convincing but also different print
widths, left and right versions and because of the separate control unit
the direct print module can be integrated in almost each packaging
process without any problems.
Flexible labelling of packaging foil is effected either by means of
Windows printer driver included in delivery or by our proven design
software Labelstar Office.
With eight vector fonts, six bitmap fonts and six proportional fonts the
direct print module has a large selection at different font types. It can
be printed inverse, in italic format or 90 degrees turned fonts.
The handling of our durable direct print modules is easy and
comfortable. The device settings can be made by the integrated,
intuitive touch-screen display.
The advanced technology achieves a high print quality.
Time-saving firmware update is possible by interface. As default, the
direct print module is equipped with a serial, USB and Ethernet
interface. Additionally, the direct print module is equipped with an USB
Host that permits the connection of an external USB keyboard and/or
an USB memory stick. The direct print module automatically
recognizes by which interface it is controlled.
Thanks to the large number of options the direct print module can be
adapted to each task.

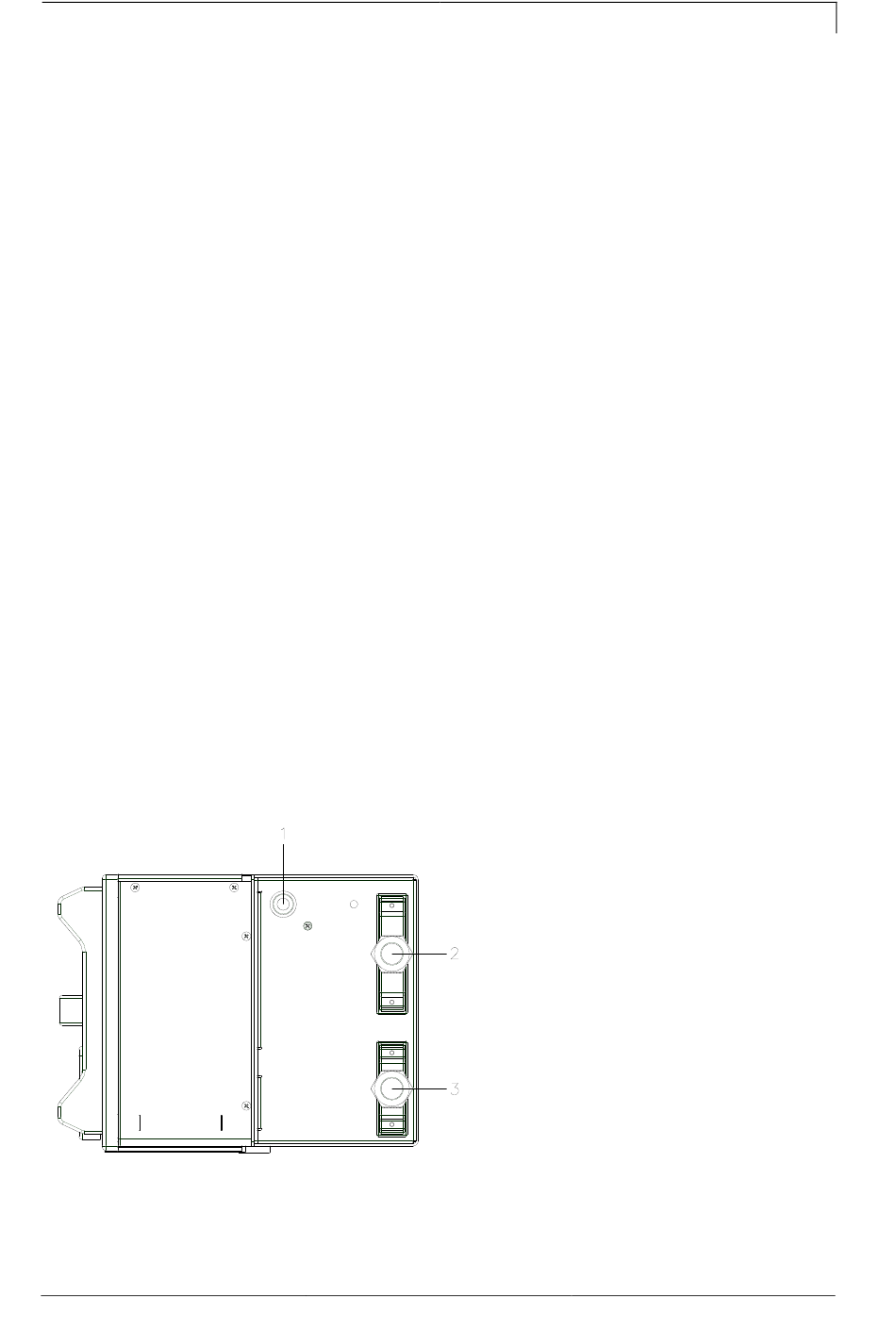

2.1 Connection Side of Print Mechanics

Operating Manual
A = Pneumatic connection
B = Connecting cable SPI
B = (printhead + sensors)
C = Connecting cable Power
