Function Menu
Print offset
Min. distance
between prints
Printhead down time
Ribbon motor early
start time
Min. print speed
Minimization print
offset
82

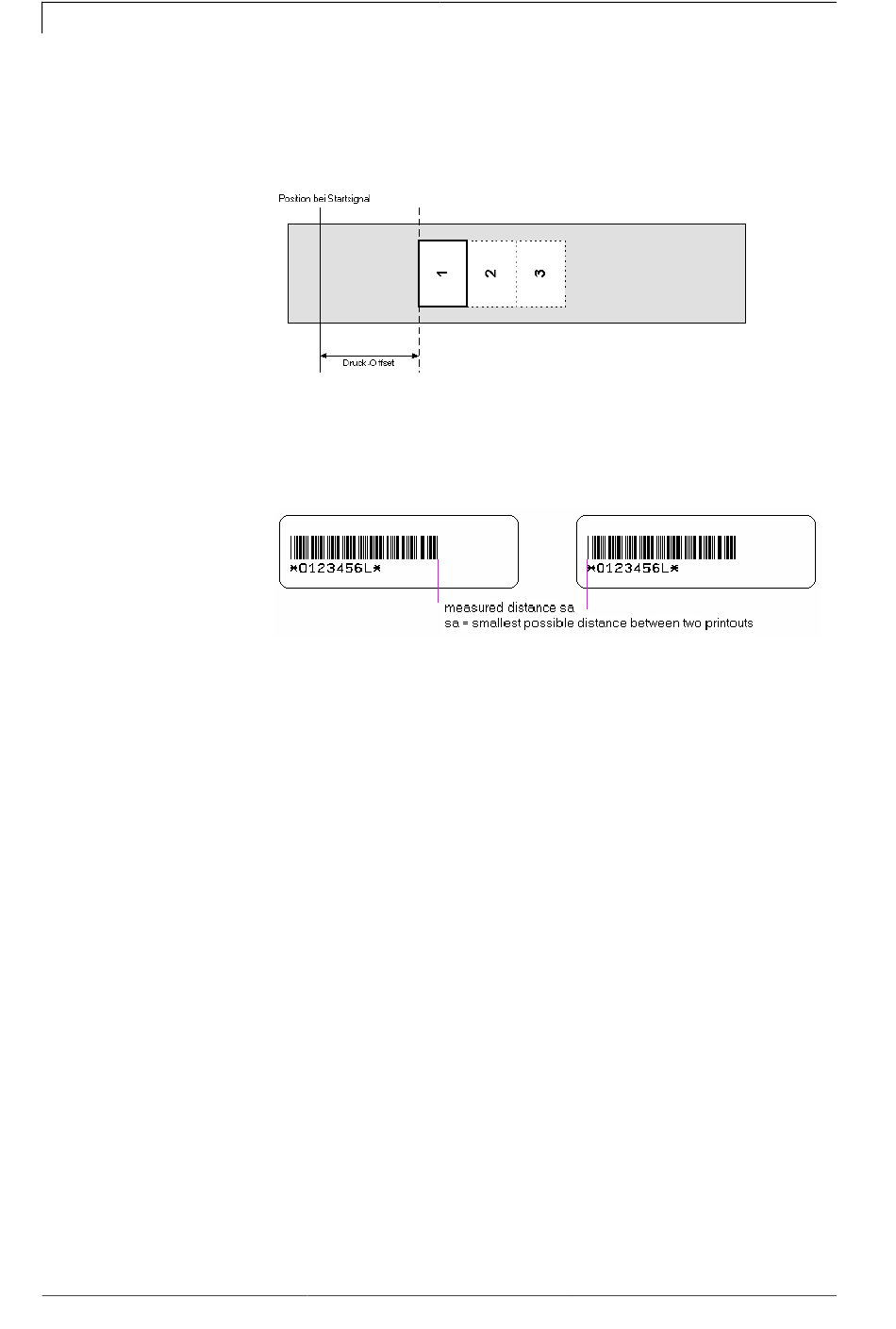

Indication of distance of the layout (res. the first layout in case more
layouts per cycles are to be printed) to the zero point of machine.
Settings possible either in mm or ms.
Value range: 1 ... 999 mm
The smallest possible distance between two prints with full ribbon
saving (the print offset must be set to the minimum value). As basis
for the calculation the set ribbon saving parameters are used, as well
as mode and especially the indicated max. print speed.
A detailed description can be found on page 151.

10.12.2 Expert Parameters

This is used from ribbon saving algorithm for the calculation of start
time of printhead downwards movement.
This value is added to the acceleration time of transfer ribbon
movement. Time indication for the time between 'motor reached
material speed' and 'printhead burns'.
If the same value is entered as for PhDownT, the printhead upwards
movement is not started before the transfer ribbon motor reached the
material speed.
If the min. print speed is increased, the max. number of cycles is also
increased.
The smallest possible print offset is automatically set in the menu
Machine parameters/Print offset.
On: The print offset value range is set to the smallest possible value
that can be achieved with the current settings (e.g. print speed).
Off: The print offset value range remains at the default setting.
