Machine Overview
12

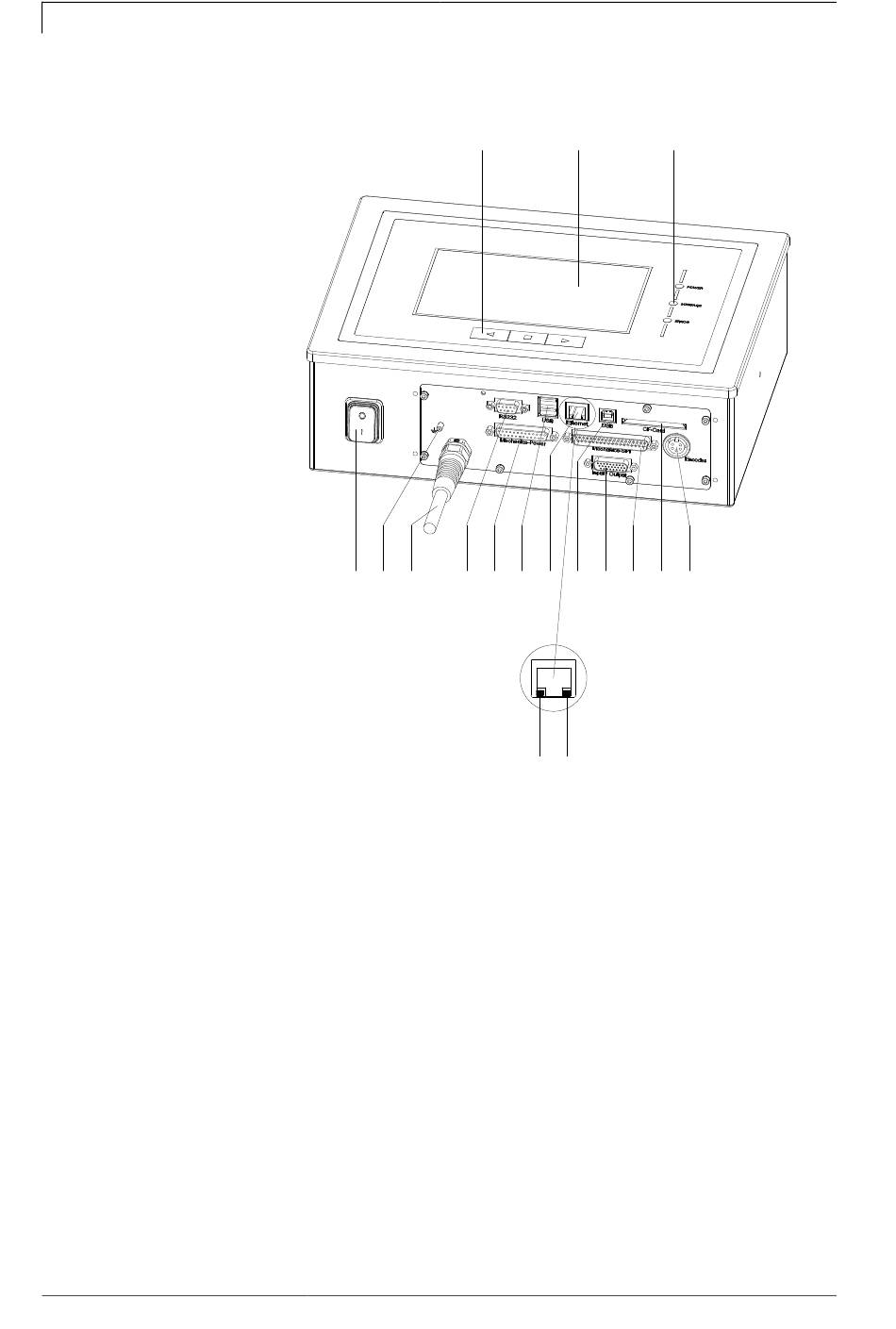

2.2 Connector Assignment of Control Unit

O N M
Figure 2
A = Function keys
B = Touch Panel
C = Status LED
D = Encoder connection
E = Slot for memory card
F = Connecting cable SPI
G = External inputs/outputs
H = USB port
I = Ethernet port
J = USB host for USB keyboard and USB stick
K = Connecting cable Power
L = Serial interface RS-232
M = Power supply
N = Grounding bolt
O = Switch
Operating Manual
A B
L K J I H G F
1 - LED green
1 - Lighting = Speed 100 MBit
1 - Off = Speed 10 MBit
2 - LED orange
2 - Lighting = Connection active
–Flashing = Data transfer
2
2 - Off = No connection
1 2
Dynacode II IP
C
E D
03.21
