Dynacode II IP
Example 1:
Example 2:
03.21

15.2 Cycles for the continuous mode

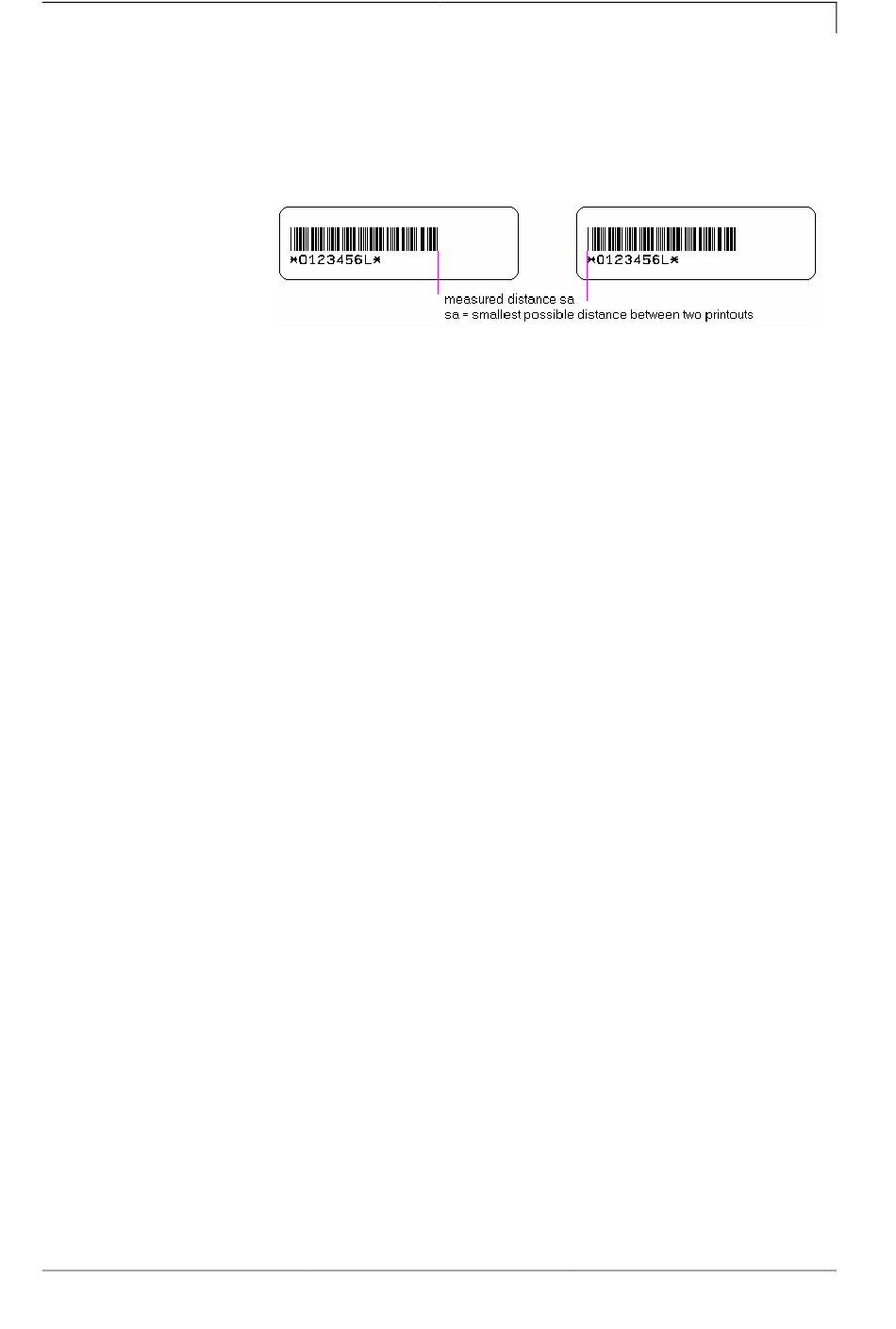

sa/mm: The smallest possible distance between two prints with full
ribbon saving (the print offset must be set to the minimum value).
Layout: 75 mm printing surface sa at 200 mm/s = 30 mm
The total distance that can be covered in one minute at 200 mm/s:
s = v * t = 200 mm/s * 60 s = 12 m.
A path of print length + sa = 75 mm + 30 mm = 105 mm is required for
a printout. The result is the number of cycles of 12 m / 105 mm = 114
prints per minute.
Bag length: 300 mm
Print length: 40 mm
What is the maximum print speed for Dynacode II IP53?
sa = 300 mm - 40 mm = 260 mm
Search in the tables for sa: 260 mm
The table Dynacode II IP c53, transfer ribbon length 900 m (page 151)
indicates that the maximum print speed is approx. 650 mm/s.
Operating Manual
Additional Information
151
