Load Transfer Ribbon Cassette

As for the electrostatic unloading the thin coating of the thermal
printhead or other electronic parts can be damaged, the transfer
ribbon should be antistatic.
The use of wrong materials can lead to direct print module
malfunctions and the guarantee can expire.
NOTICE!
Before a new transfer ribbon roll is loaded, the printhead must
be cleaned using the printhead and roller cleaner (97.20.002).
For detailed information, please see page 126.
The handling instructions for the use of Isopropanol (IPA) must
be observed. In the case of skin or eye contact, immediately
wash off the fluid thoroughly with running water. If the irritation
persists, consult a doctor. Ensure good ventilation.

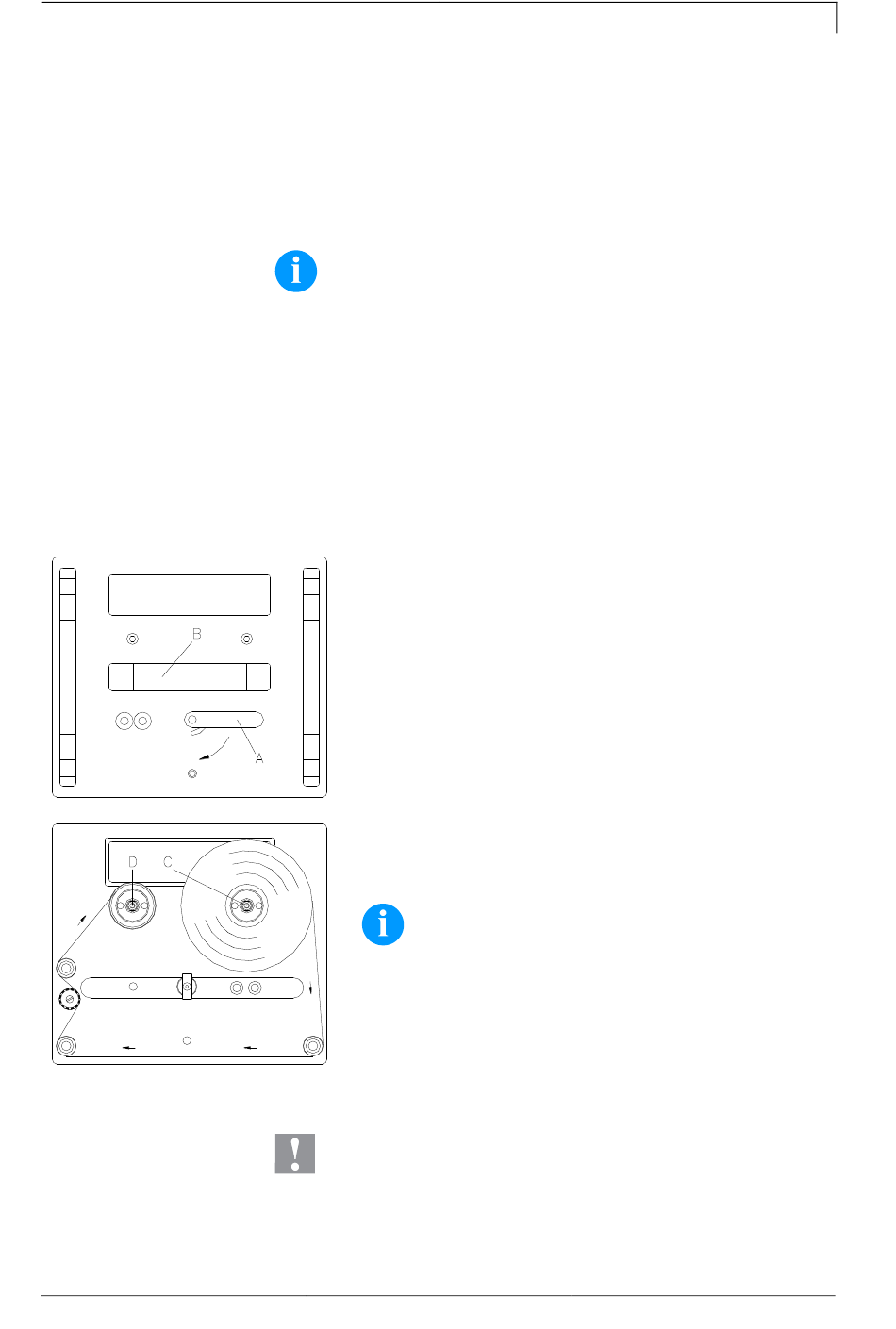

8.1 Transfer Ribbon with Coating Outside

1. Turn the lever (A) 90° in clockwise direction.
2. Remove the ribbon cassette from the print mechanics
by pulling handle (B).
3. Load a new ribbon roll as far as it will go onto the
unwinding roll (C).
4. Load an empty cardboard roll as far as it will go onto the
rewinding unit (D).
5. Insert the ribbon according to illustration.
6. Fix the ribbon with an adhesive tape at the empty roll
and tighten it by some turns of the core.
7. Push the ribbon cassette again onto print mechanics
and take care that the ribbon not rip.
8. Turn the lever (A) 90° anticlockwise.
NOTICE!
The above illustration shows a left-hand printing
system. If you are using a right-hand system, then
the new roll is to be inserted at the left and the
cardboard core is to be inserted at the right side.
CAUTION!
Impact of static material on people!

Use antistatic transfer ribbon, because static discharge
can occur when removing.
