Important notes
Print principle
Print position
10.15

1.5 Intermittent mode

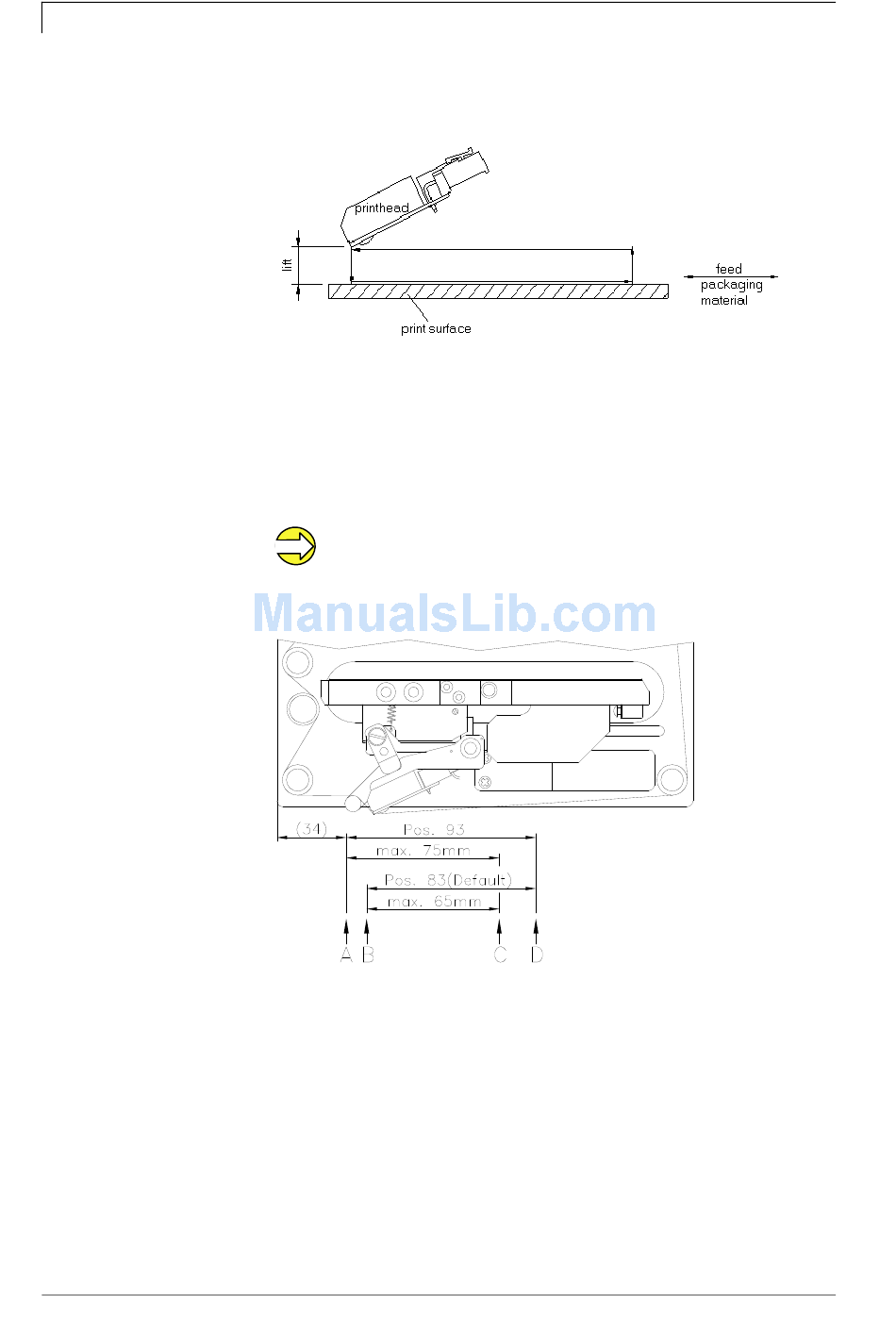

Figure 5
After starting a print order the printhead moves against the print
medium. Afterwards the printing carriage moves corresponding to the
set or transferred layout length linear over the material which is to be
printed. After the print procedure the printhead again lifts up and the
printing carriage moves again to the starting position.
The direct print module is delivered with a default print length of
65 mm. In order to use the maximum print length, the print position
value must be changed to 93 (see chapter 7.5. Machine
parameters (intermittent mode), page 52.
A: Print position/start position value = 93 mm
B: Print position/start position value = 83
C: Max. position print end
D: Stand-by position
