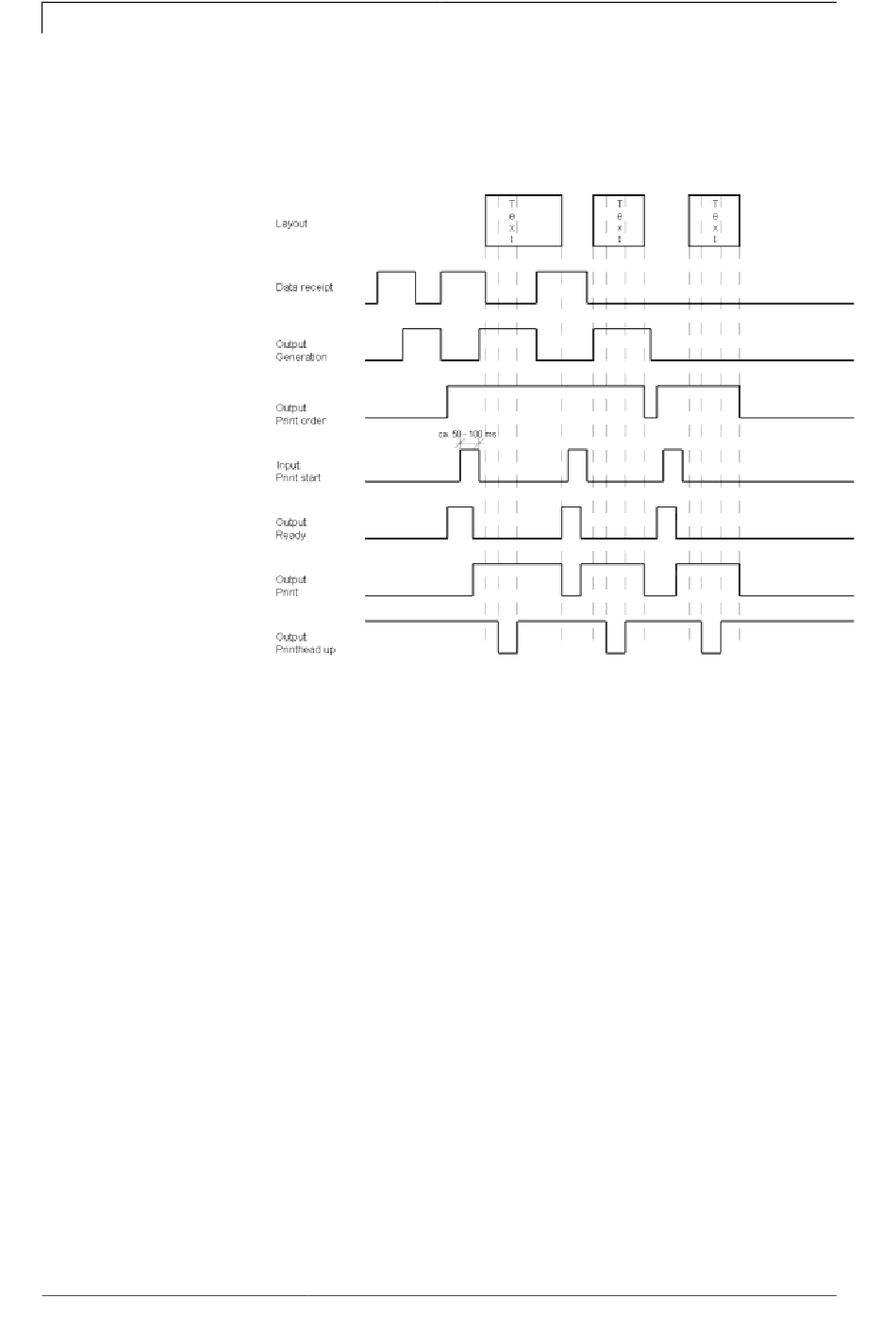

Signal Diagrams
Layout
Data receipt
Data receipt/
generation
Generation
Print order
Print
134
Number of layouts per print order: 1
Data memory: extended
Ribbon saving: On
Trigger input print start: increasing slope
Figure 29
For a better comparison we used the same layouts as before.
As soon as the generation of the layout is finished a new one is send
to the direct print module.
The time of receipt for the first layout is normally shorter because at
this time the direct print module has no further action. At receipt of the
following layout, the time of receipt is longer because the direct print
module receives data and prints at the same time.
In mode 'data memory: extended' already received data is always
generated after the start of a print order.
Before the current print order is finished the next one is already
generated. The signal output is therefore active and the next start
impulse can be send.
Before the next start impulse is send, the print has to be finished as
otherwise the impulse is ignored.
