Function Menu
Print offset
Printhead down time
Printhead valve
react time
Ignore empty lines
Set print offset to
minimum
Ribbon saving mode
STANDARD
86

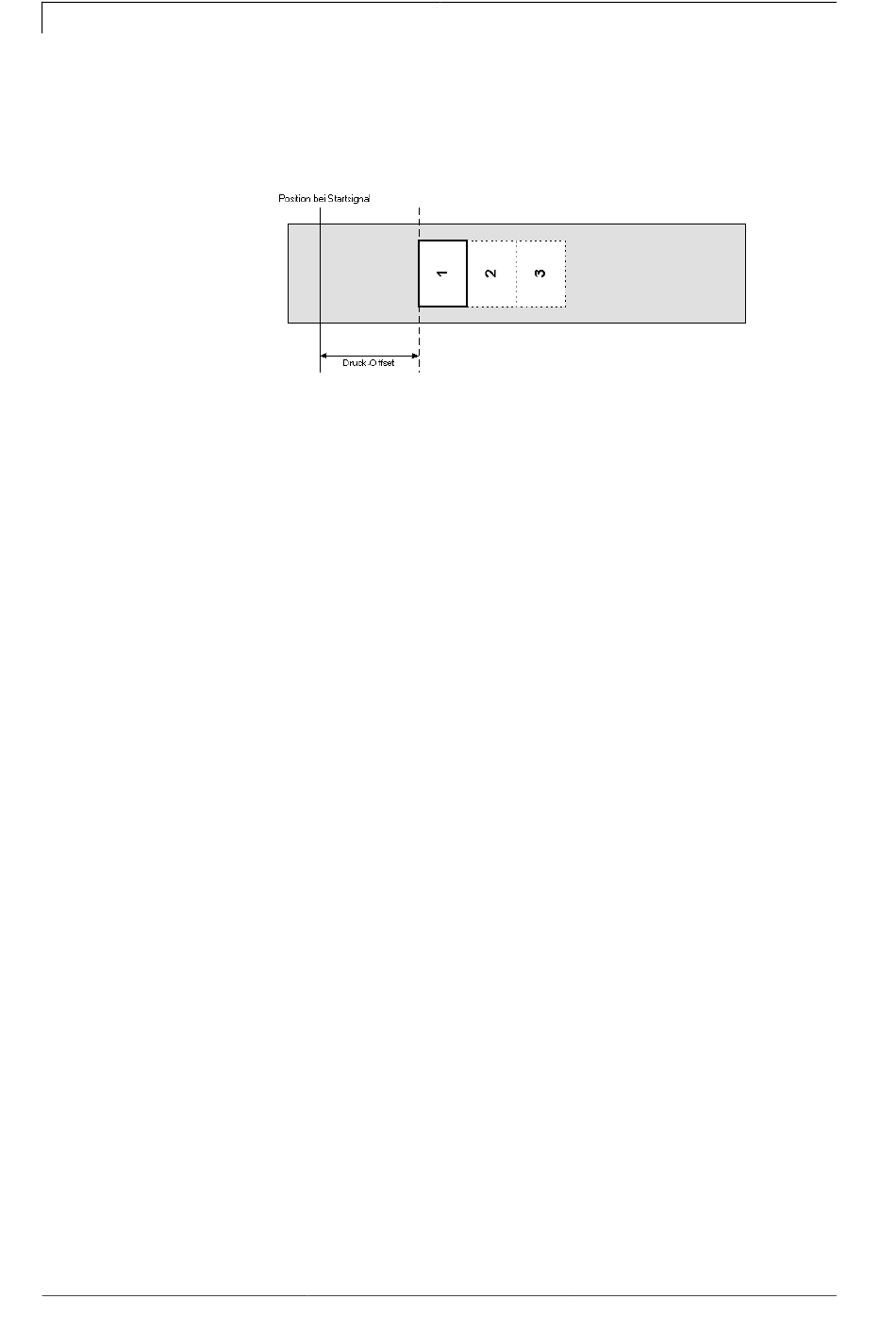

Indication of distance of the layout (res. the first layout in case more
layouts per cycles are to be printed) to the zero point of machine.
Settings possible either in mm or ms.
Value range: 1 ... 999 mm

10.13.2 Expert Parameters

Is used from the ribbon saving algorithm to calculate the start of the
printhead downwards movement.
The time is calculated when the printhead upwards movement is
started.
In the default operation, the printing system stops for the entire layout
length until a new layout can be printed, even if the layout is mainly
empty. As some label programs do not provide any layout length,
issues may occur in connection with the number of cycles, as the
layout length remains constant despite varying lengths of the range to
be printed. With this option, all empty lines can be ignored in the
beginning, at the end or both.
Quick selection to set the print offset to the smallest possible value.
On: The print offset value is reset to the smallest possible value.
Off: The value remains at the preset print offset value.

10.13.3 General Parameters

Maximum ribbon saving performance, i.e. with this setting there is no
loss of transfer ribbon (apart from the safety distance of 1 mm, so the
print fields are not printed one into the other).
No settings are allowed with which the ribbon saving no more cannot
be achieved. This particularly applies for the print offset, which can
only be adjusted now in the valid range.
