Technical Data

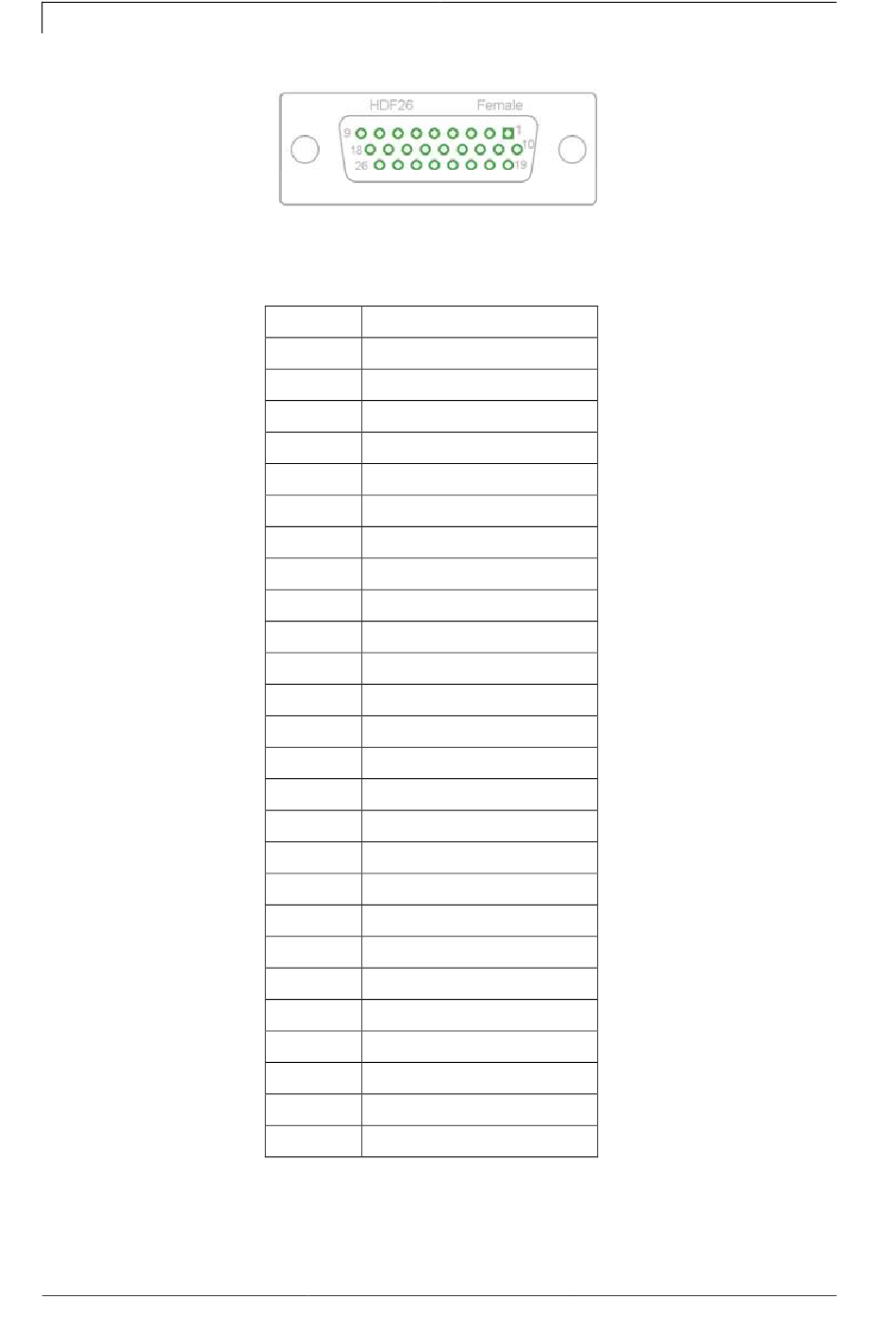

Configuration of
D-Sub socket
Cable identification
24
Figure 8
Number Color
1 white
2 brown
3 green
4 yellow
5 grey
6 pink
7 blue
8 red
9 black
10 violet
11 grey-pink
12 red-blue
13 white-green
14 brown-greed
15 white-yellow
16 yellow-brown
17 white-grey
18 grey-brown
19 white-pink
20 pink-brown
21 white-blue
22 brown-blue
23 white-red
24 brown-red
25 white-black
26 brown-black
