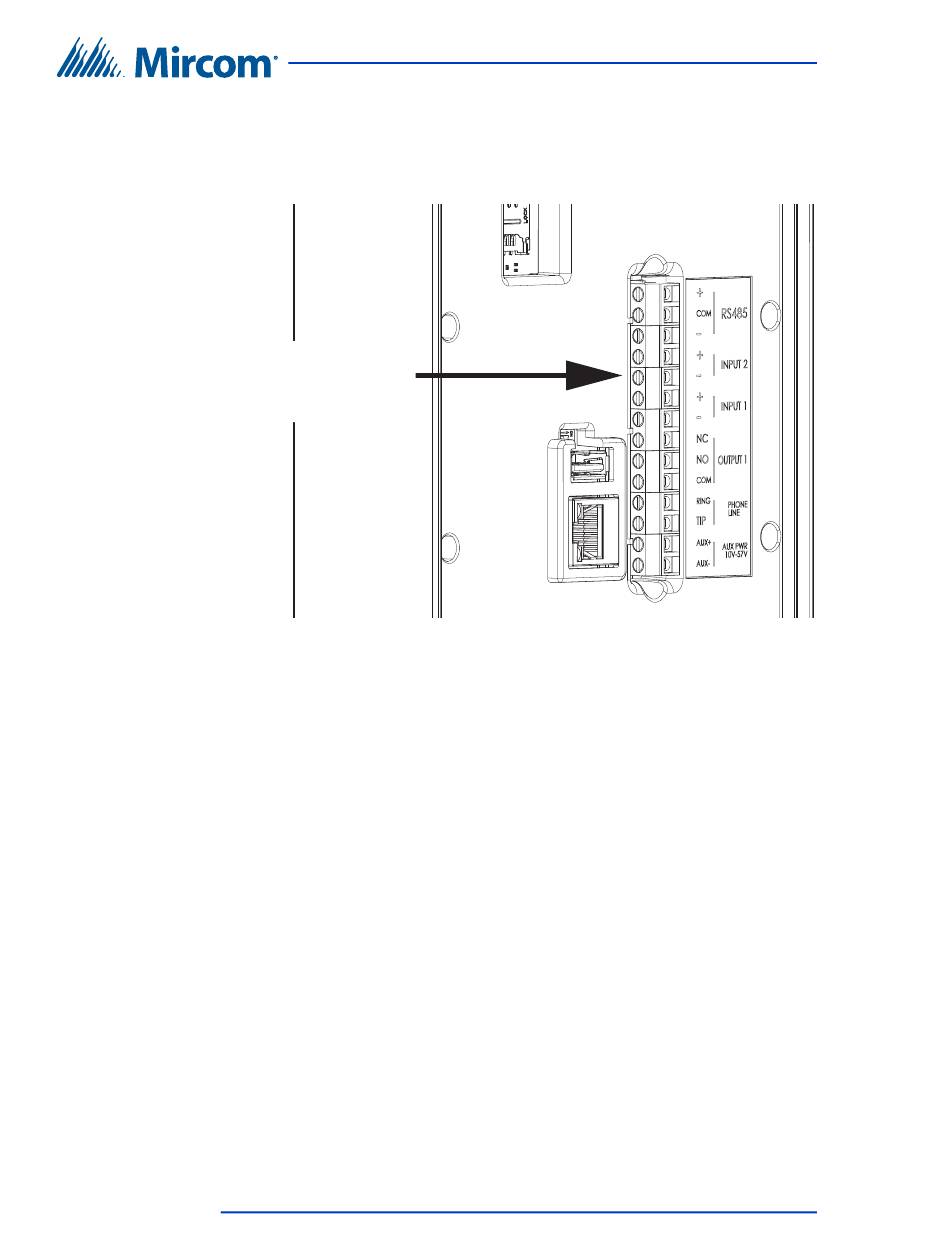

Insert the terminal
block with the screws
facing left
3.2
RJ45 Connector
Connect the RJ45 connector to a PoE (Power over Ethernet)-powered router or
switch. The RJ45 connector provides power through PoE, and also provides a
connection to the LAN for configuration.
3.3
USB Port and Switch
The USB port and switch are for debugging. Leave the switch at its factory
position (on the right).
3.4
Slot for mini-SIM Card
On TX3 Nano models with -C (for example, TX3-NANO-S4-CX), insert a mini-
SIM (2FF) card into this slot to allow the TX3 Nano to make cellular calls.
TX3 Nano Installation Manual
18
Copyright 2018
USB: 2.4 m (8 ft)
Outputs: consult the documentation for the door strike or maglock
Figure 14. The terminal block
