OPERATION
To operate the
F/T Move
as a child node. More waypoints can be added in the same way. To remove a
Waypoint
waypoint, use the Structure tab Delete button.
Alternatively,
F/T Waypoint
command by using the Structure tab.

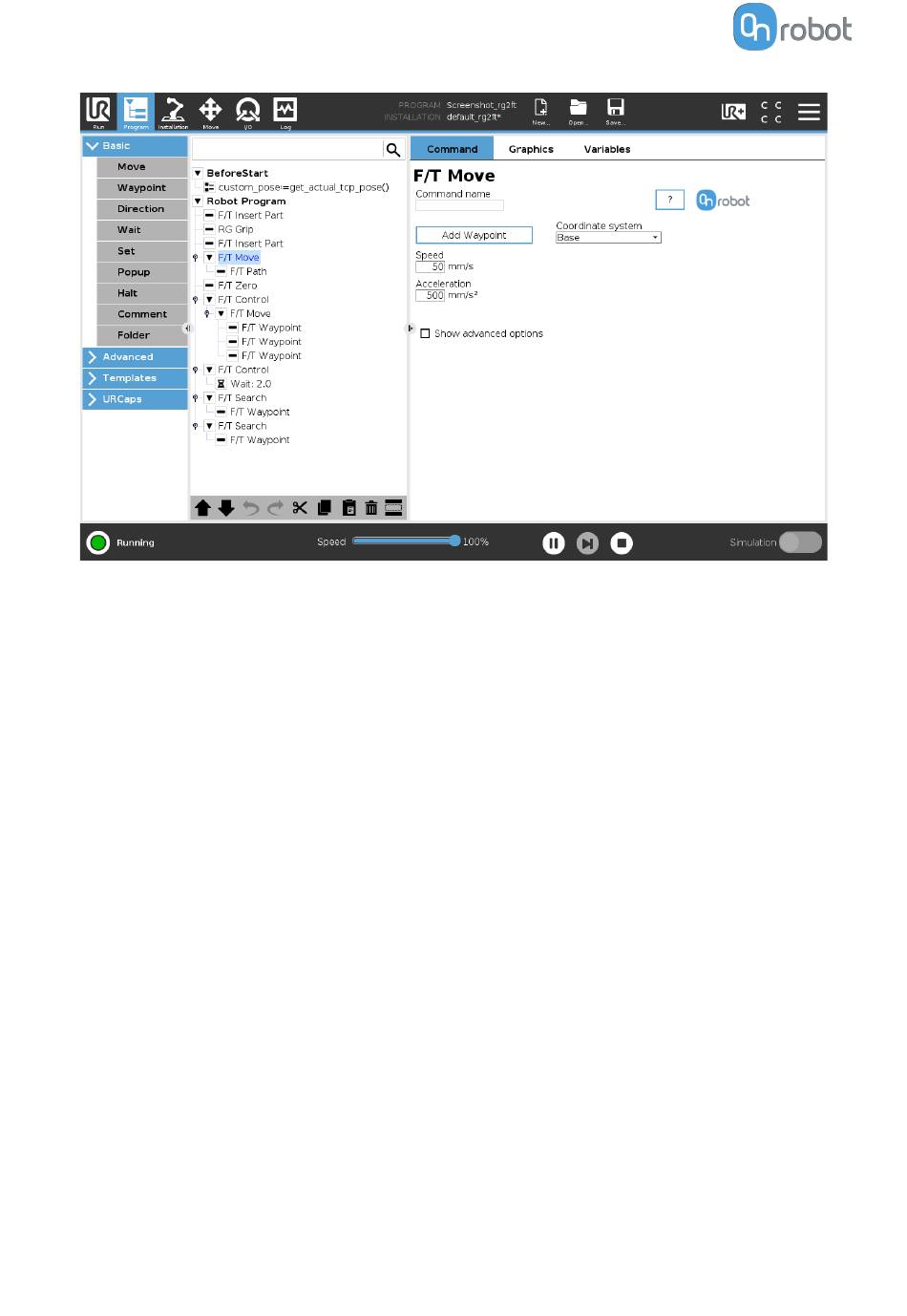

Speed: The movement speed limit while moving. The movement is carried out in a constant
translational speed. If the route or path has sharp changes in the direction, or the orientation,
the actual speed of the robot may be less than specified, but still constant throughout the
route or Path.
Acceleration: The acceleration and deceleration parameter of the movement.
Coordinate system: The coordinate system used both for the movement and for the sensor
reading. It can be set to Base, Tool, Custom (Base), Custom (Tool) (according to the UR's
reference frames). The Custom coordinate systems are calculated from the basis coordinate
system and the given Roll, Pitch and Yaw values. For the Custom (Base) coordinate system, it
is also possible to use the Get TCP orientation button to specify the orientation of the
coordinate system, by the orientation of the current TCP. To test the given orientation, the
Rotate tool to this orientation [HOLD] button can be used.
Show advanced options: If checked then more options become available:
