Web Client: Configuration Menu - OnRobot HEX-E QC User Manual

ADDITIONAL SOFTWARE OPTIONS
Low power limit may not be enough for higher percentage of vacuum and the target vacuum
level may not be reached.
The Channel A and Channel B vacuum level can be set individually or in tandem by checking
the Lock checkbox.
Make sure to set high enough vacuum before you grip and lift any object.
To release the gripped object, click on the Release button.

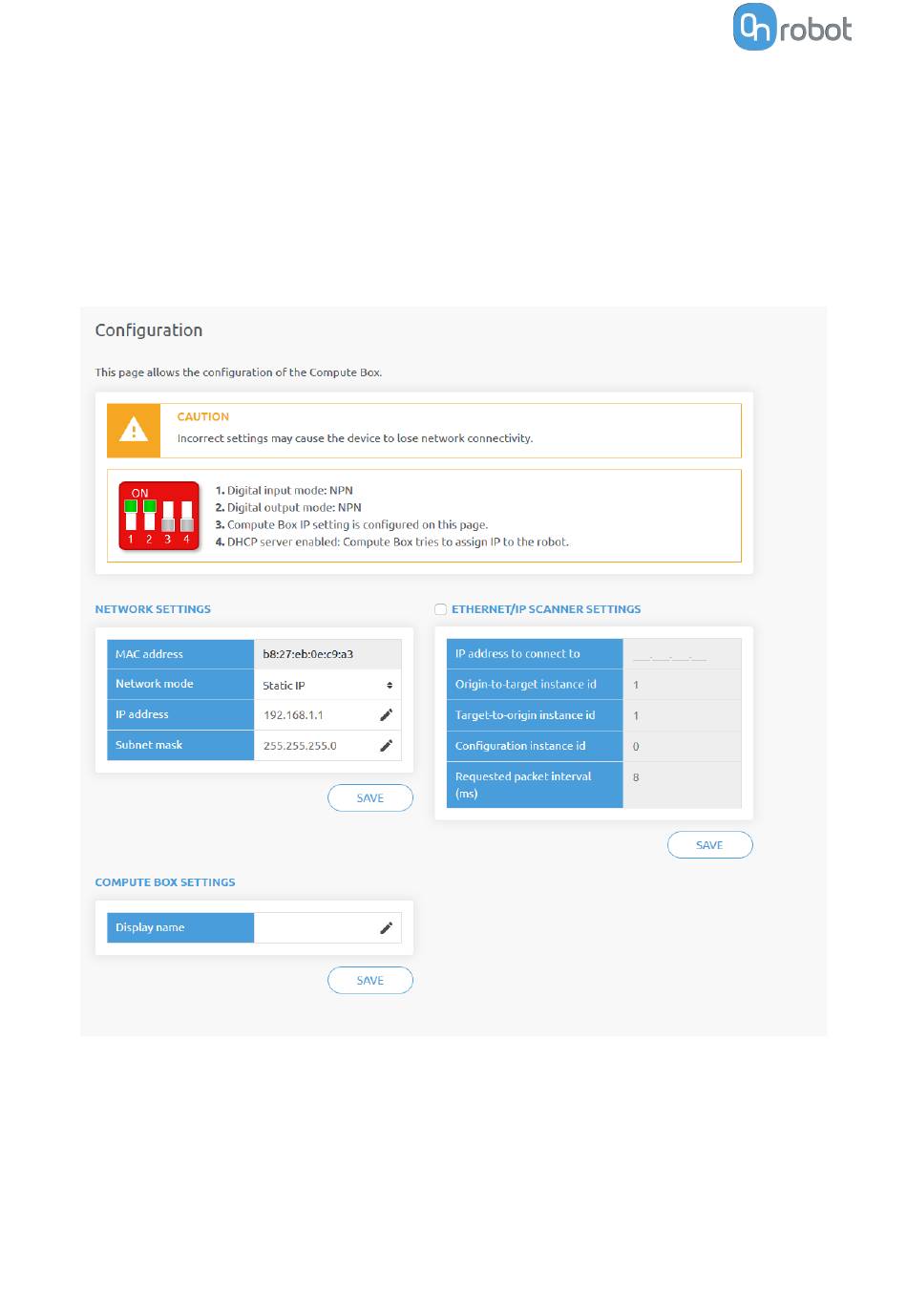

7.1.4. Web Client: Configuration Menu

Network settings:
The MAC address is a world-wide unique identifier that is fixed for the device.
The Network mode drop-down menu can be used to decide if the Compute Box will have a
static or a dynamic IP address:
If it is set to Dynamic IP, the Compute Box expects an IP address from a DHCP server. If
•
the network that the device is connected to has no DHCP server, then the fixed 192.168.1.1
IP is used for the device (after 60 seconds of timeout).
156
