OPERATION

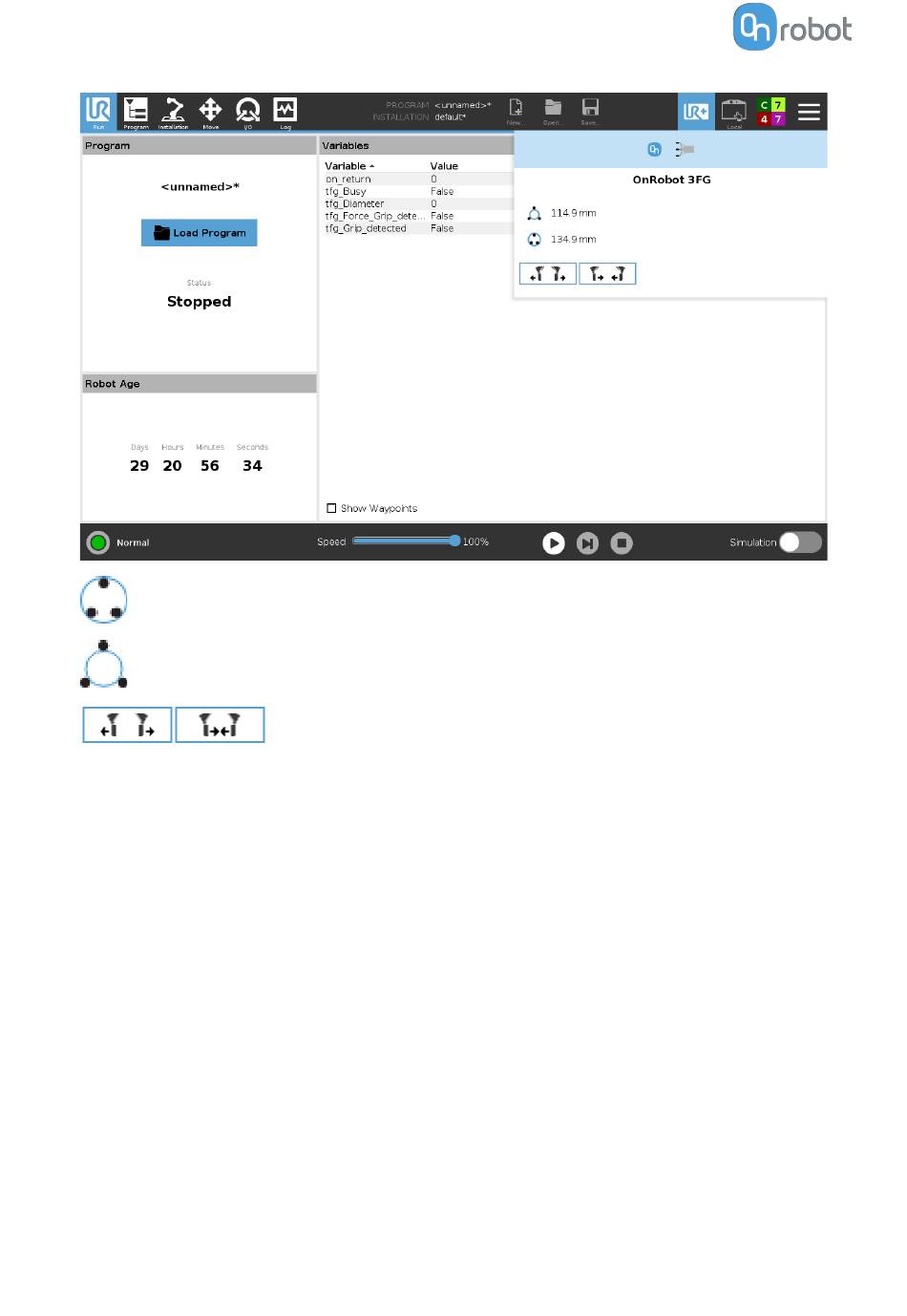

Current internal diameter.
Current external diameter.

6.2.2. HEX-E/H QC

To open up the toolbar follow the instructions in the
The toolbar for the HEX is called Hand Guide and it is shown below. This toolbar is used to
hand guide the robot by holding the End of Arm Tooling with your hand. It is possible to lock
some of the axes to reduce the degrees of freedom.
116
These are open and close hold-to-run buttons.
How to Access the Toolbar section.
