HARDWARE SPECIFICATION
and Size for Metric
Screws.

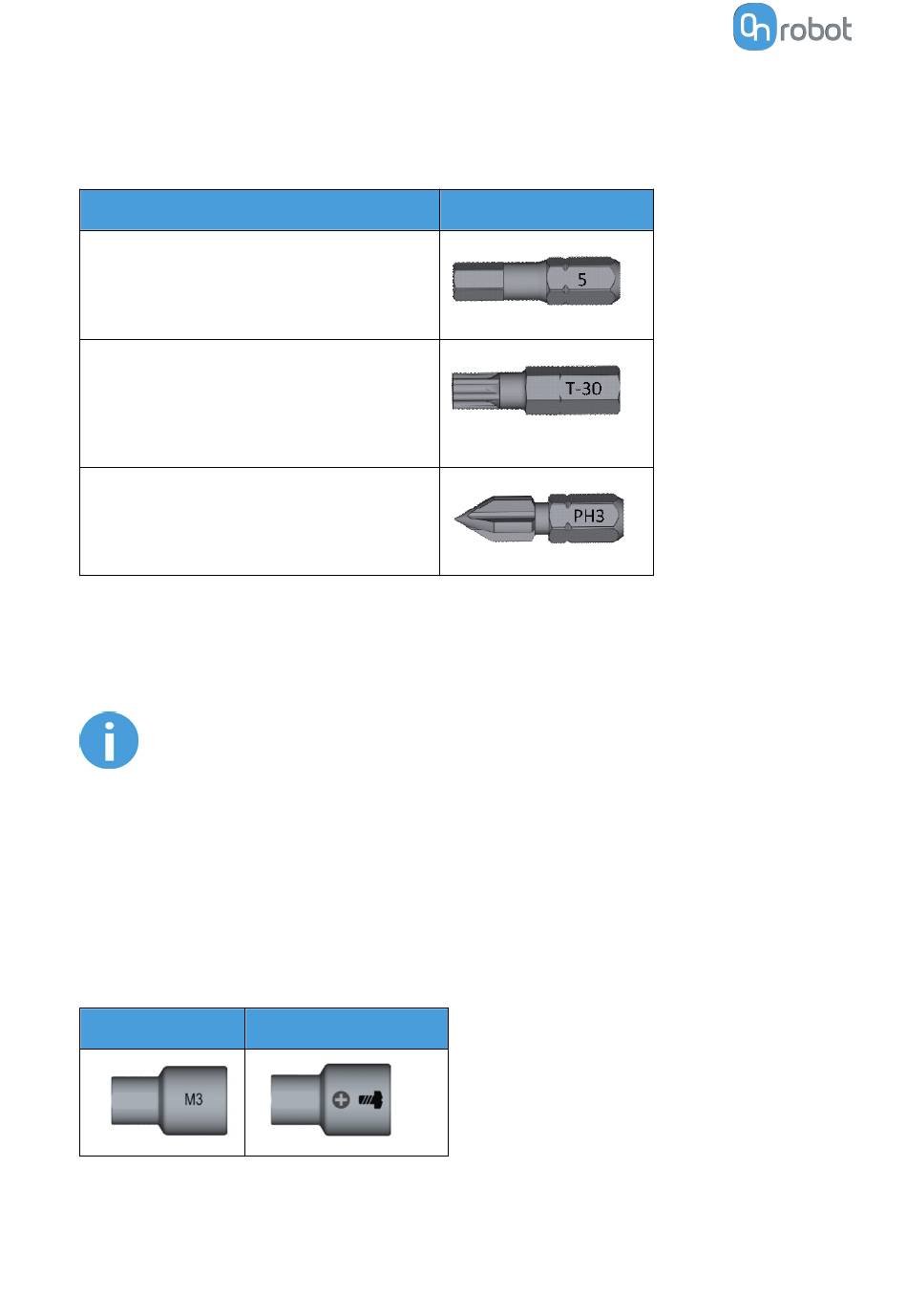

The bits have signifiers to help identifying what bit type and size these are.
Screw type standard
Din 912 / ISO 4762
ASME B18.3 HEX Cylinder
ISO 14579
ISO 14580
ISO 14581
ASME B18.6.3 Torx Button head
ASME B18.6.3 Torx Counter sunk
DIN 7985A
ASME B18.6.3 Cross recessed Button head
Supported bit shank properties:
Type 1/4" HEX
•
Length 25 mm
•
NOTE:
Bits longer that 25 mm could be used. However, the screw carrier and the
screw fix might not hold the screw properly in place.
4. Screw Carrier and Screw Fix
Select the right screw carrier and screw fix depending on the screw type and the size to
maximize the efficacy of the Screw-bit System based on the table on section Items needed
depending on Screw type and size.
The screw carriers have signifiers to help identifying what screw type and size these can be
used with.
Screw thread size
196
or Items Needed Depending on Screw Type and Size for US Standard
Screw type illustration
Shows bit size and type
