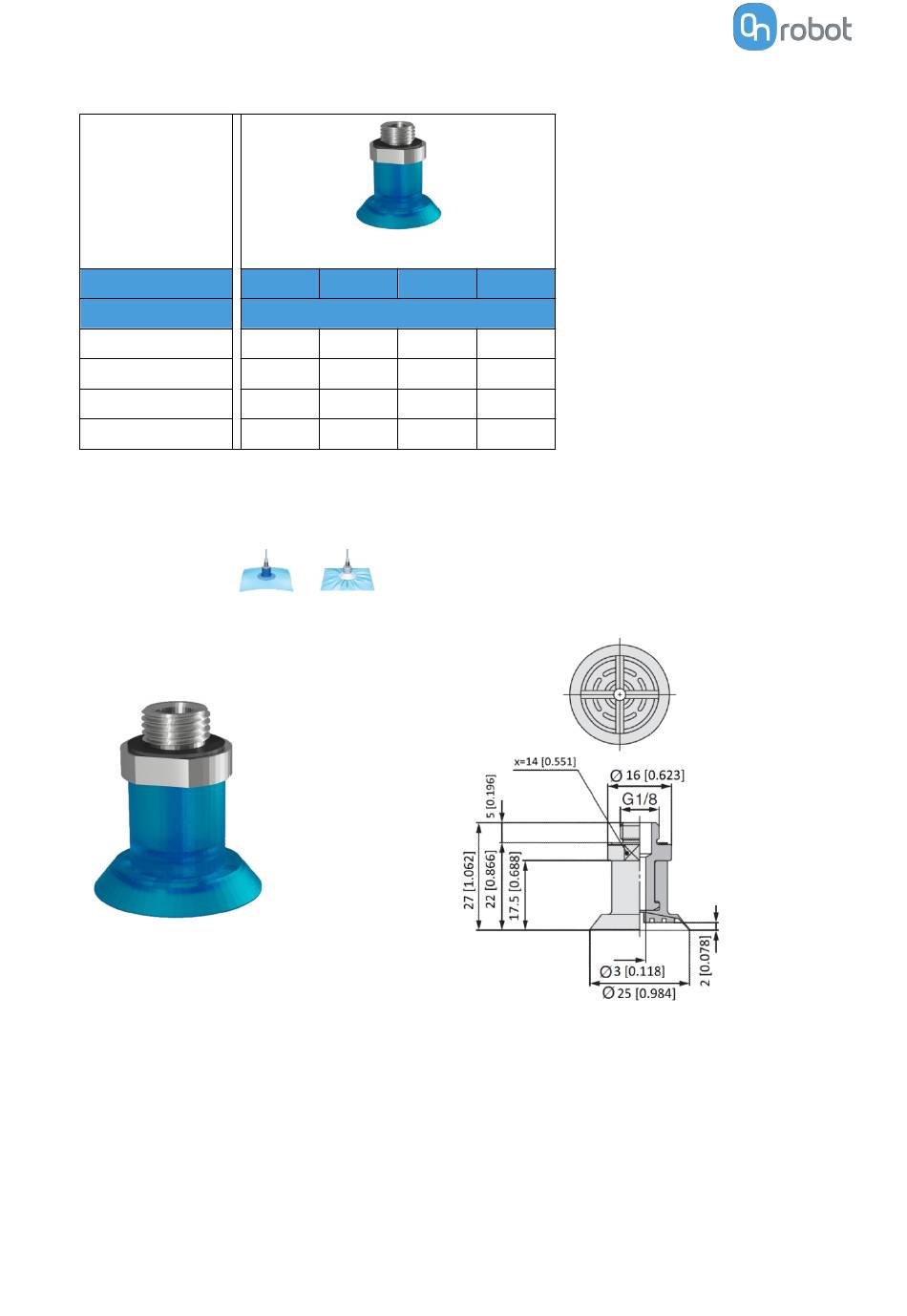

OnRobot HEX-E QC User Manual page 213

HARDWARE SPECIFICATION
Number of Cups
Surface
Foil
Thin paper
Foil - round shape
Plastic bag
The vacuum cup is silicone rubber compliant with the USA Food and Drug Administration
(FDA).
Using this vacuum cup reduces the wrinkles made on thin workpieces (film, vinyl, and so on)
during absorption:
This vacuum cup is an accessory and need to be purchased separately. To purchase the
vacuum cup, contact the vendor from where the VGx gripper has been purchased.
• Suction Cups for foil and bags Ø25 - PN 105922
Fittings and Blind Screws
It is possible to change suction cups simply by pulling them off the fittings. It might be a bit
challenging to remove the 15 mm Diameter vacuum cups. As suggestion try to stretch the
silicon to one of the sides and then pull it out.
25 mm
1 2 3
kg
0.83 1.07 1.43
1.08 1.71 2.23
1.28 2.32 3.32
0.32 0.54 0.63
.
4
1.57
3.21
4.25
0.74
