HARDWARE SPECIFICATION

8.2.3. Mountings

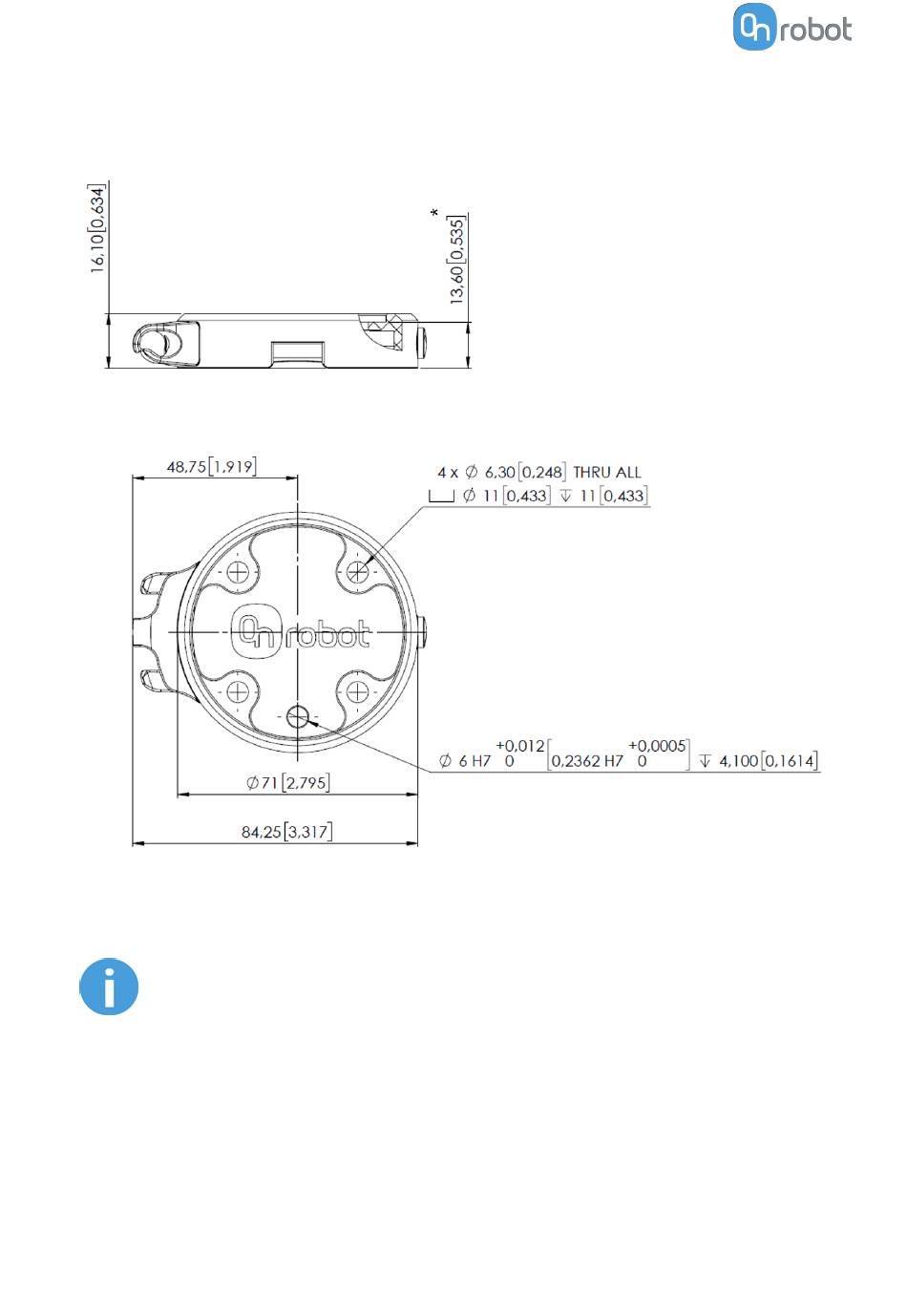

8.2.3.1. Quick Changer - Robot Side

* Distance from Robot flange interface to OnRobot tool.

All dimensions are in mm and [inches].

NOTE:

The cable holder (on the left side) is only required with the long (5 meter)

cable.

231
