Customized Adaptor Plates and Push-in Fittings
The design of the VGC10 is meant to facilitate the users to make their own adaptor plates to
create different kinds of configurations. The dimensions needed to create a customized

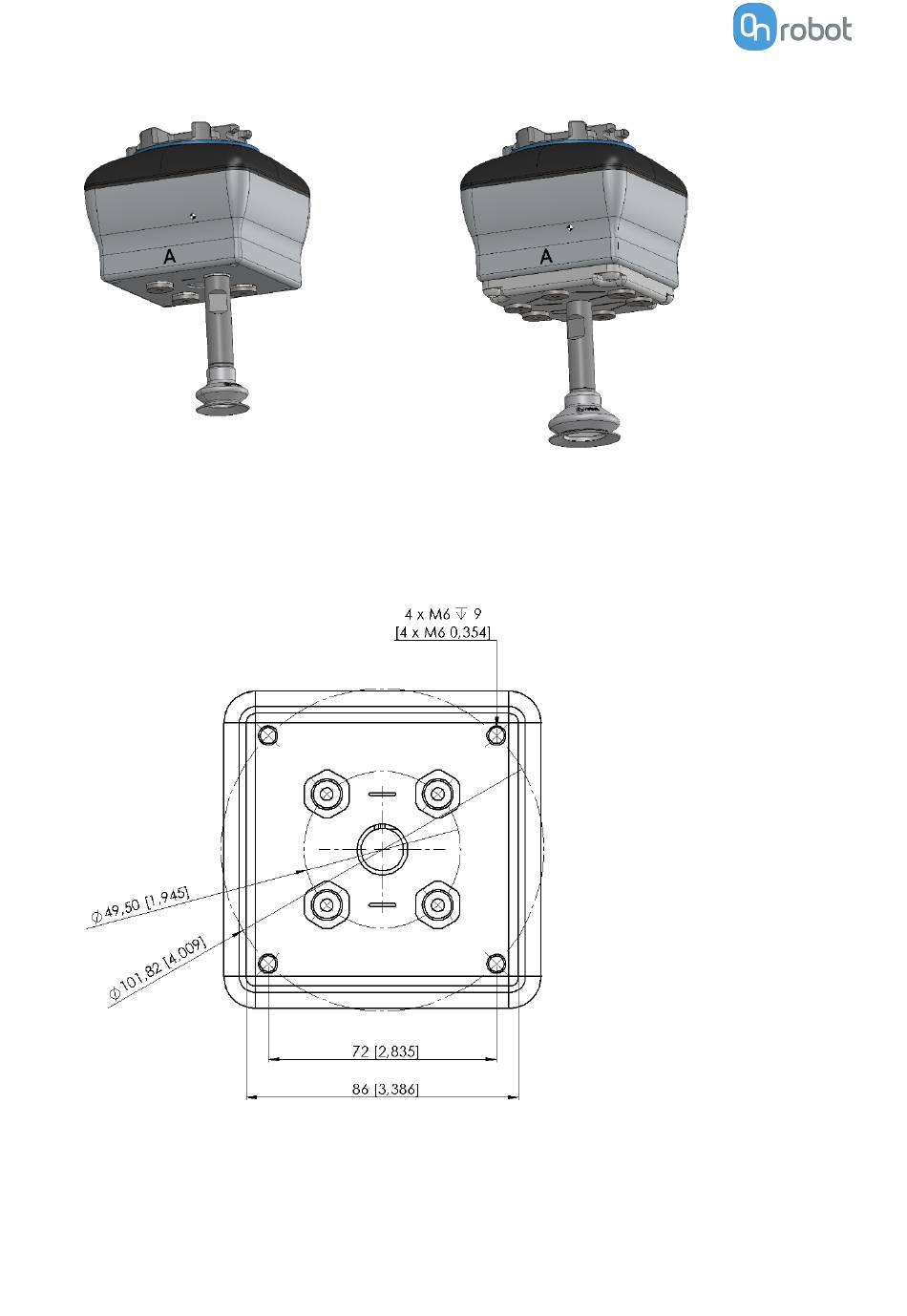

adaptor plate are shown in the image below.
The Push-in Fittings are used to attach 4 mm vacuum tubes to create customized
configuration that required remote vacuum. In most cases, this size is enough for generating
the needed vacuum from the pump in the gripper.
