HARDWARE SPECIFICATION

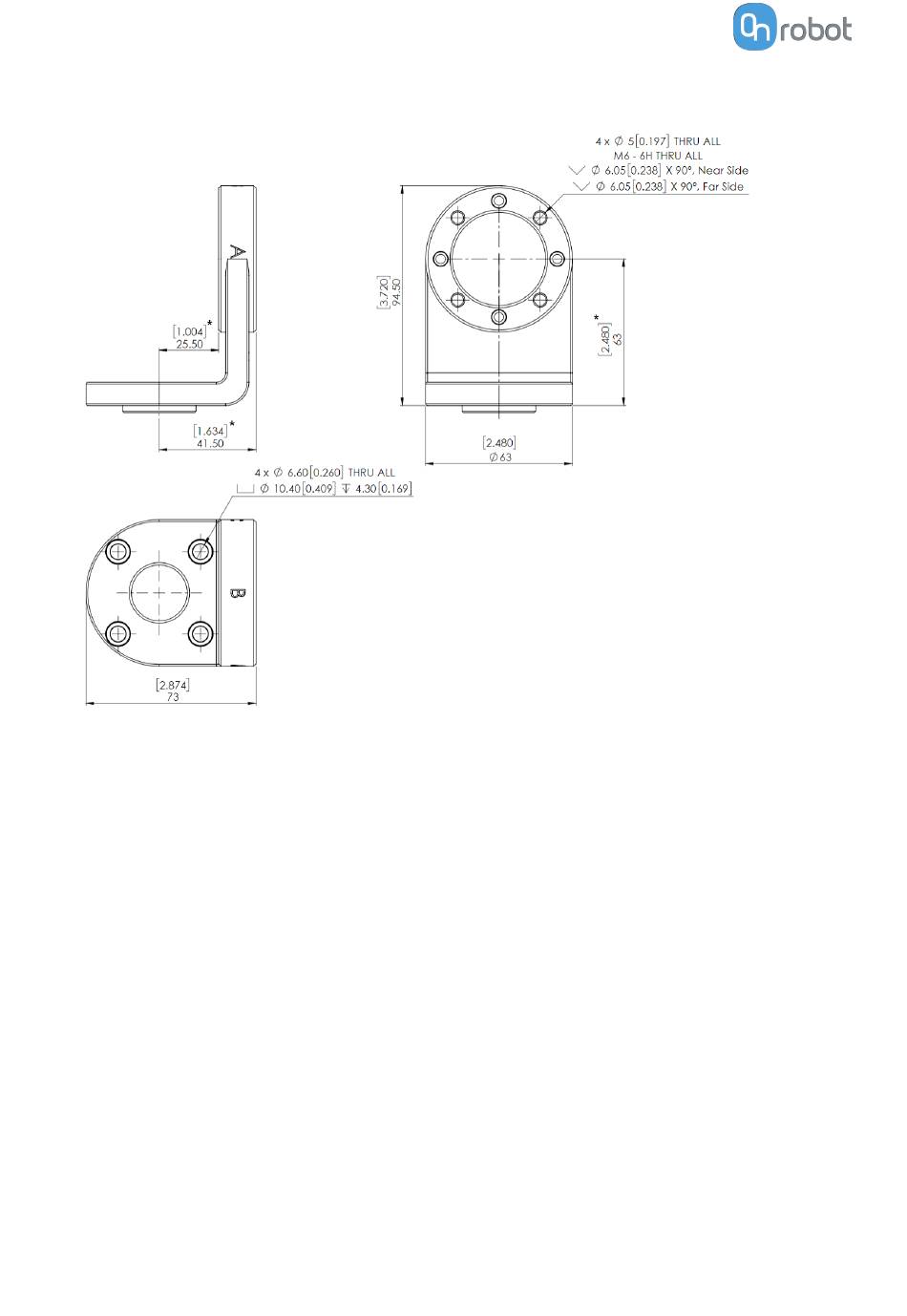

8.2.2. Angle Bracket

* Distance from Robot flange interface to OnRobot Quick Changer.
All dimensions are in mm and [inches].
230
