OnRobot HEX-E QC User Manual page 197

HARDWARE SPECIFICATION

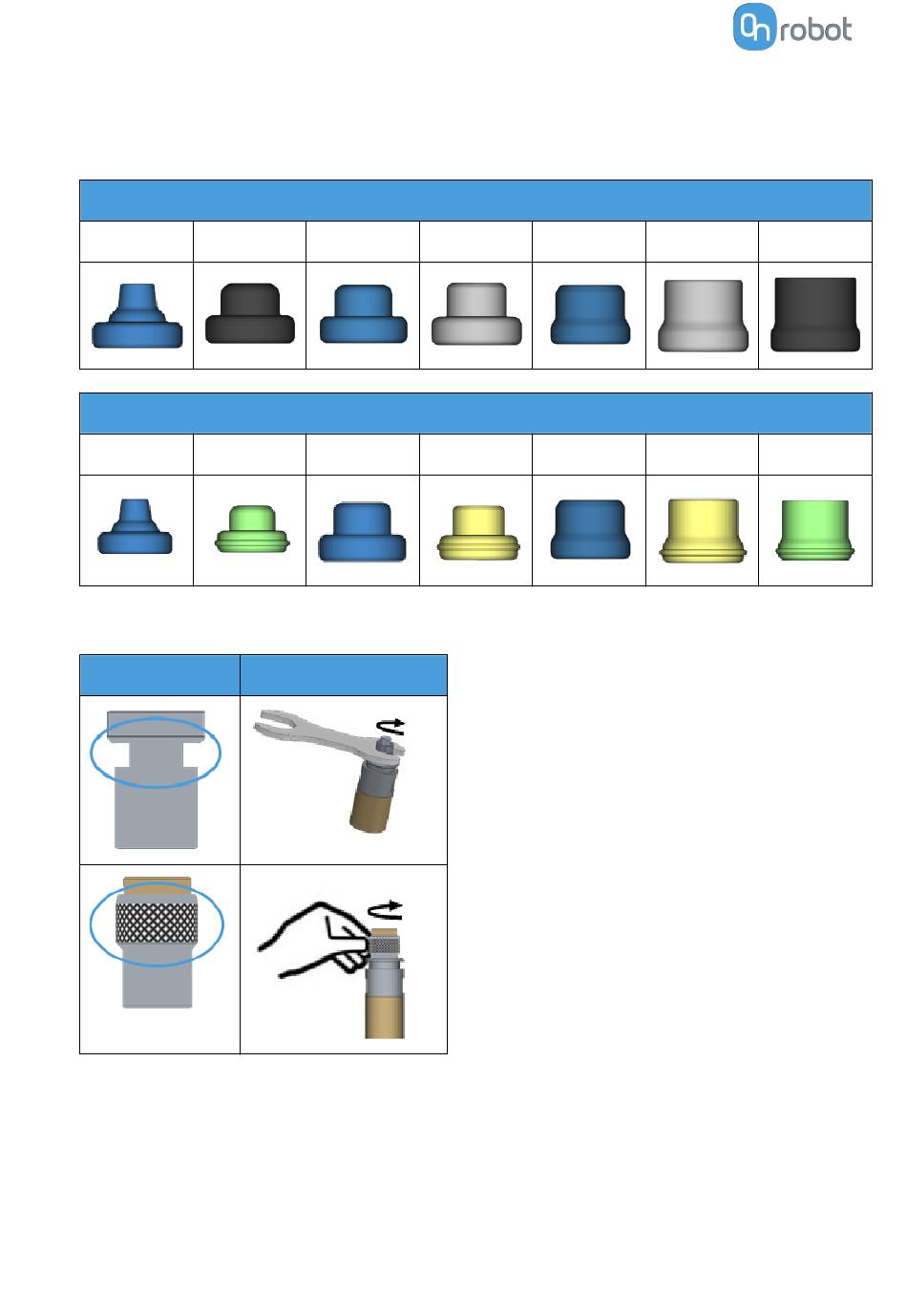

The screw fixes are only needed for the Din 912, ISO 4762, ISO 14579, ISO 14580 and ASME
B18.3 HEX Cylinder screw types. The screw fixes also have signifiers to show what size of
screw they support.
Screw fixes for Metric - Din 912, ISO 4762, ISO 14579, ISO 14580
M1.6
Screw fixes for US Standard - ASME B18.3 HEX Cylinder
1#
All screw carries must be adjusted to ensure high performance of the Screw-bit System.
Appearance
The screw carries must be adjusted so that the screw head seats stable on the screw carrier
avoiding a gap in between. See the pictures below as reference.
M2 M2.5
2# 4#
Adjustment method
M3 M4
6# 8#
M5 M6
10# 1/4"
197
