HARDWARE SPECIFICATION

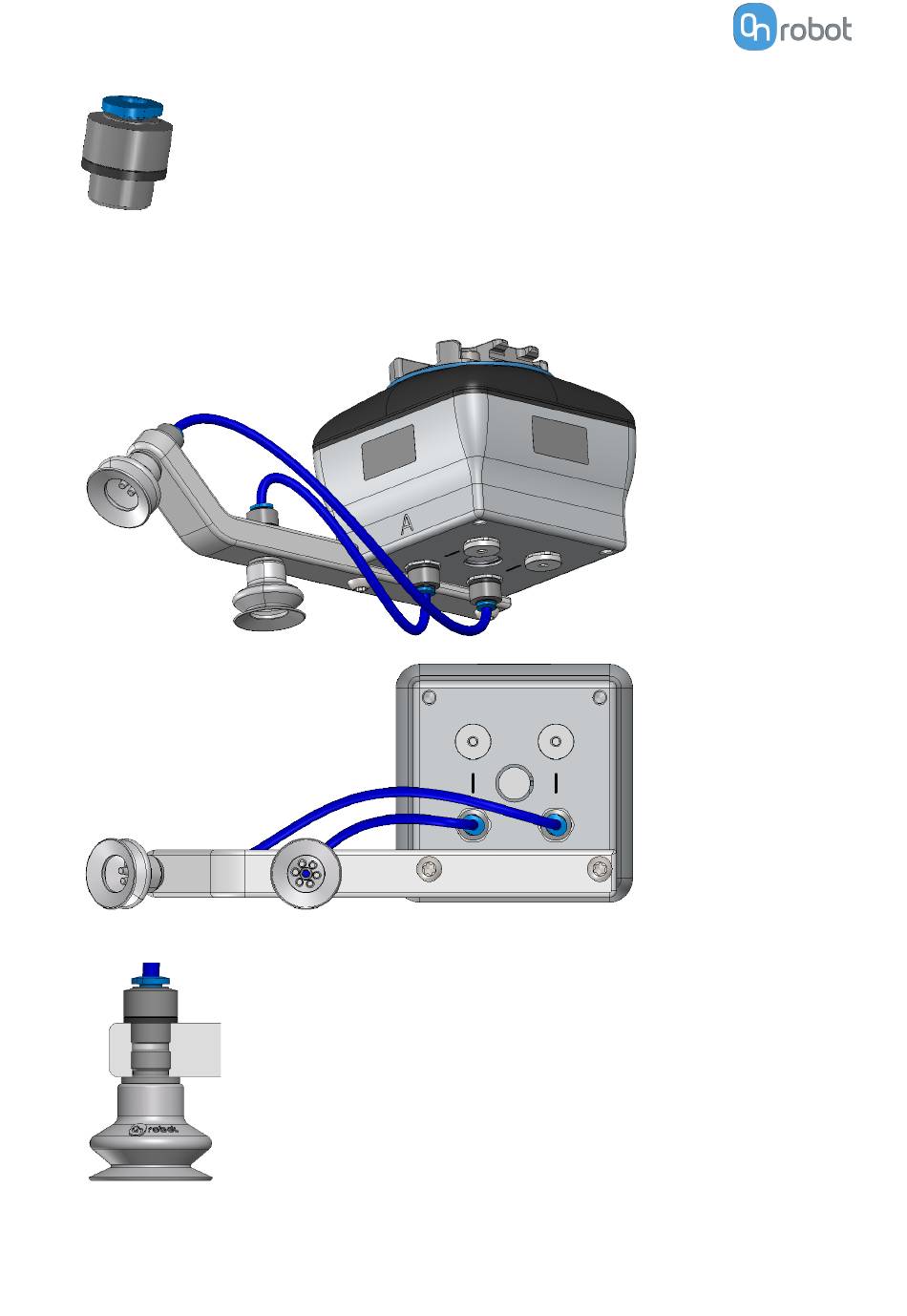

The commercial name of the Push-in Fittings is Fitting QSM-G1/8-4-I-R in case some more
units need to be purchased.
An example of a customized configuration with a homemade adaptor plate and remote
vacuum is shown below.
The image below shows how the push-in fittings and the normal fittings are communicated.
221
