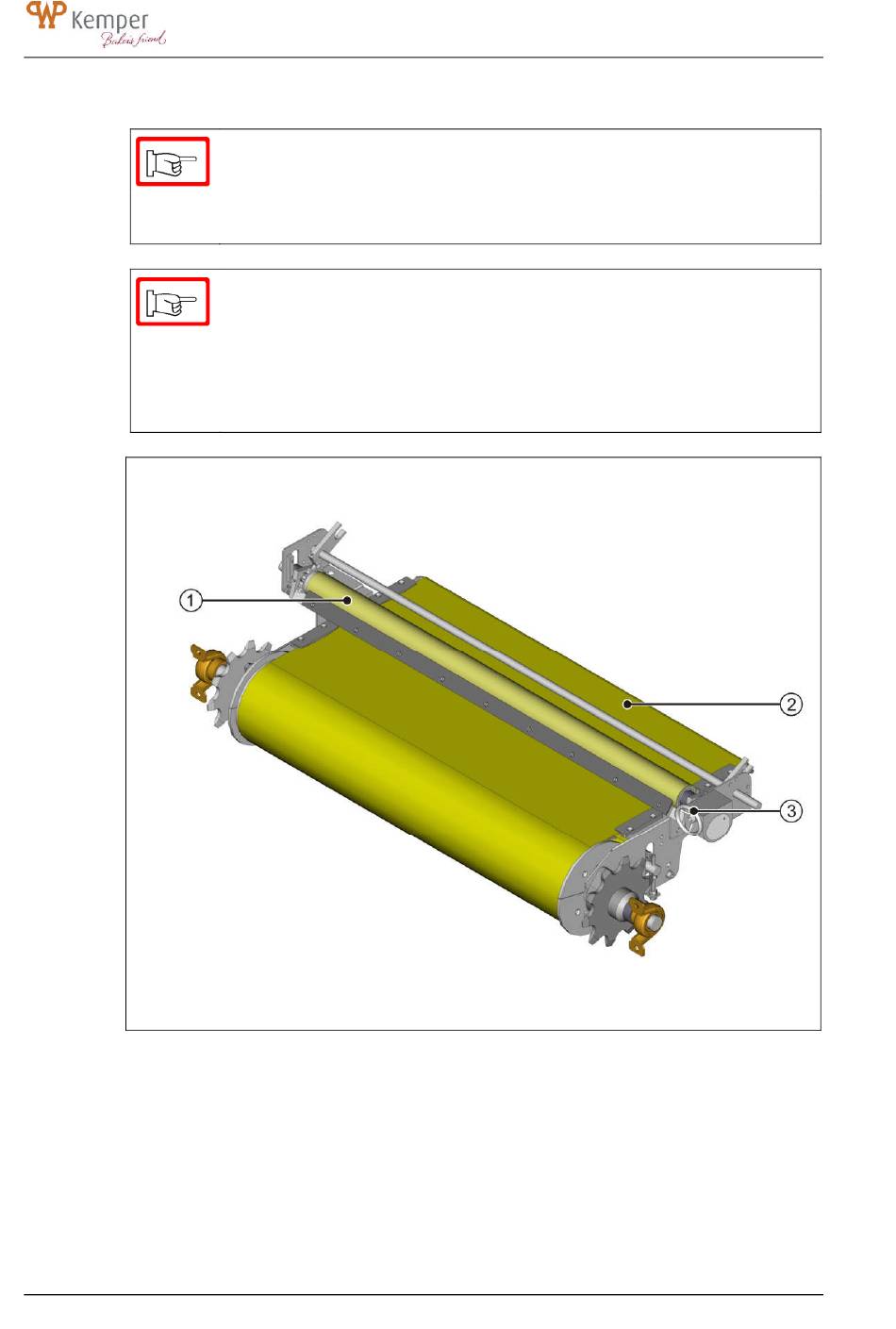

5.2.2 Function elements of the discharge belt 1

1 Pressure roller (line module)
2 Belt
3 Adjustment mechanism (for the pressure roller height)
26
Note!
The illustration of the discharge belt includes the pressure roller line
module.
Note!
The illustration of the pressure roller line module resembles the version
that is delivered. The version that is delivered may include a hand guard
and a flexible shaft to move the adjusting wheel to operate the adjustment
mechanism, which are not shown here.
