Tensioning The Cup Chains - Kemper EVOLUTION LINE Operating Manual

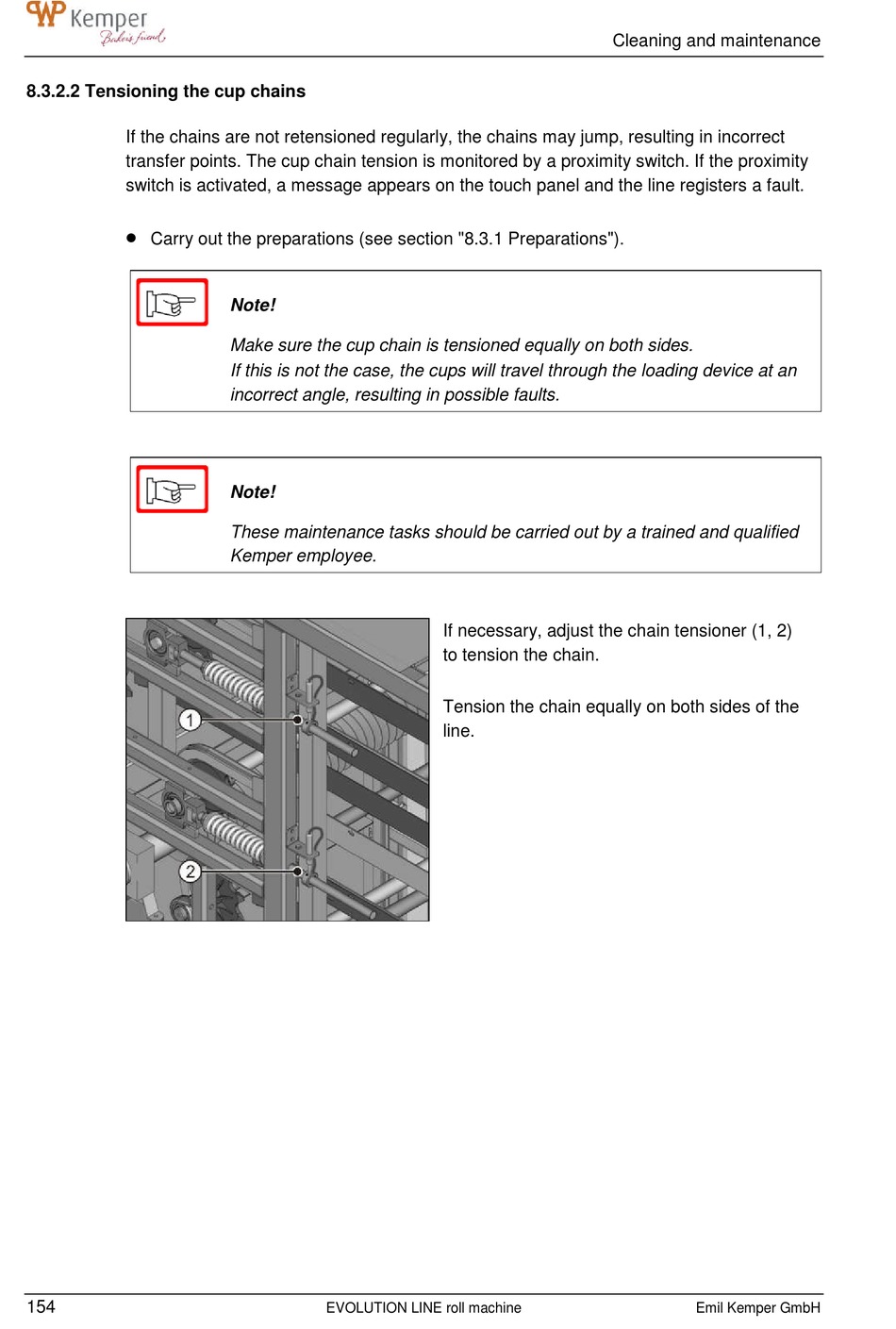

8.3.2.2 Tensioning the cup chains

If the chains are not retensioned regularly, the chains may jump, resulting in incorrect
transfer points. The cup chain tension is monitored by a proximity switch. If the proximity
switch is activated, a message appears on the touch panel and the line registers a fault.

Carry out the preparations (see section "8.3.1 Preparations").
154
Note!
Make sure the cup chain is tensioned equally on both sides.
If this is not the case, the cups will travel through the loading device at an
incorrect angle, resulting in possible faults.
Note!
These maintenance tasks should be carried out by a trained and qualified
Kemper employee.
EVOLUTION LINE roll machine
If necessary, adjust the chain tensioner (1, 2)
to tension the chain.
Tension the chain equally on both sides of the
line.
Cleaning and maintenance
Emil Kemper GmbH
