5.1.2 Overview of the roll-out station assembly

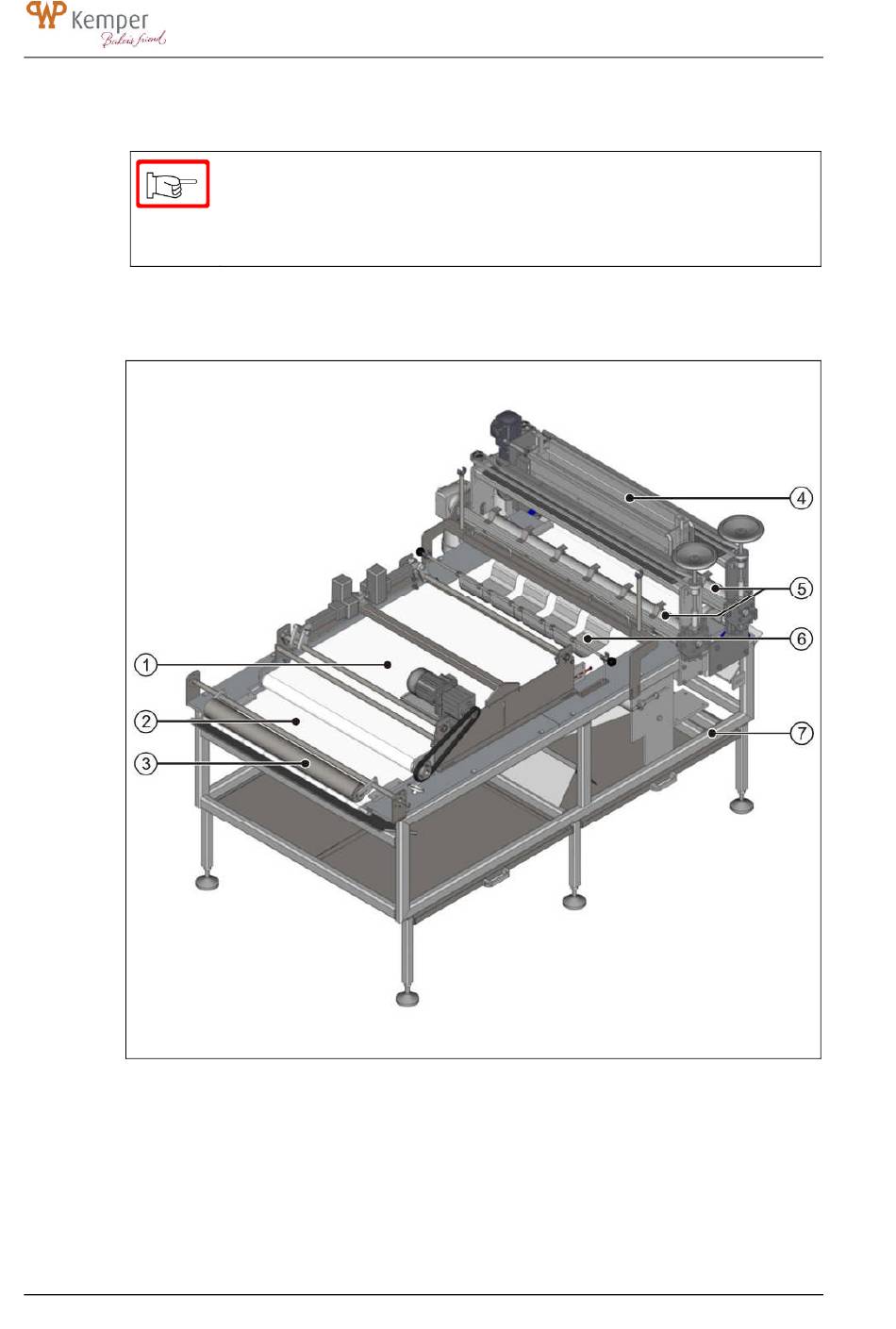

The following illustration displays configuration of the line modules and components of the
roll-out station assembly on the left in running direction:
1 Long-moulding belt
2 Conveyor belt
3 Alignment and pressure roller (timing
roller)
24
Note!
The illustration below contains optional line modules which may not be
included in the line's scope of delivery.
EVOLUTION LINE roll machine
4 Flour duster with flour break-up shaft
(optional)
5 Roll-out roller (optional)
6 Folding mats (optional)
7 Frame with collecting trays
Overview of the line
Emil Kemper GmbH
