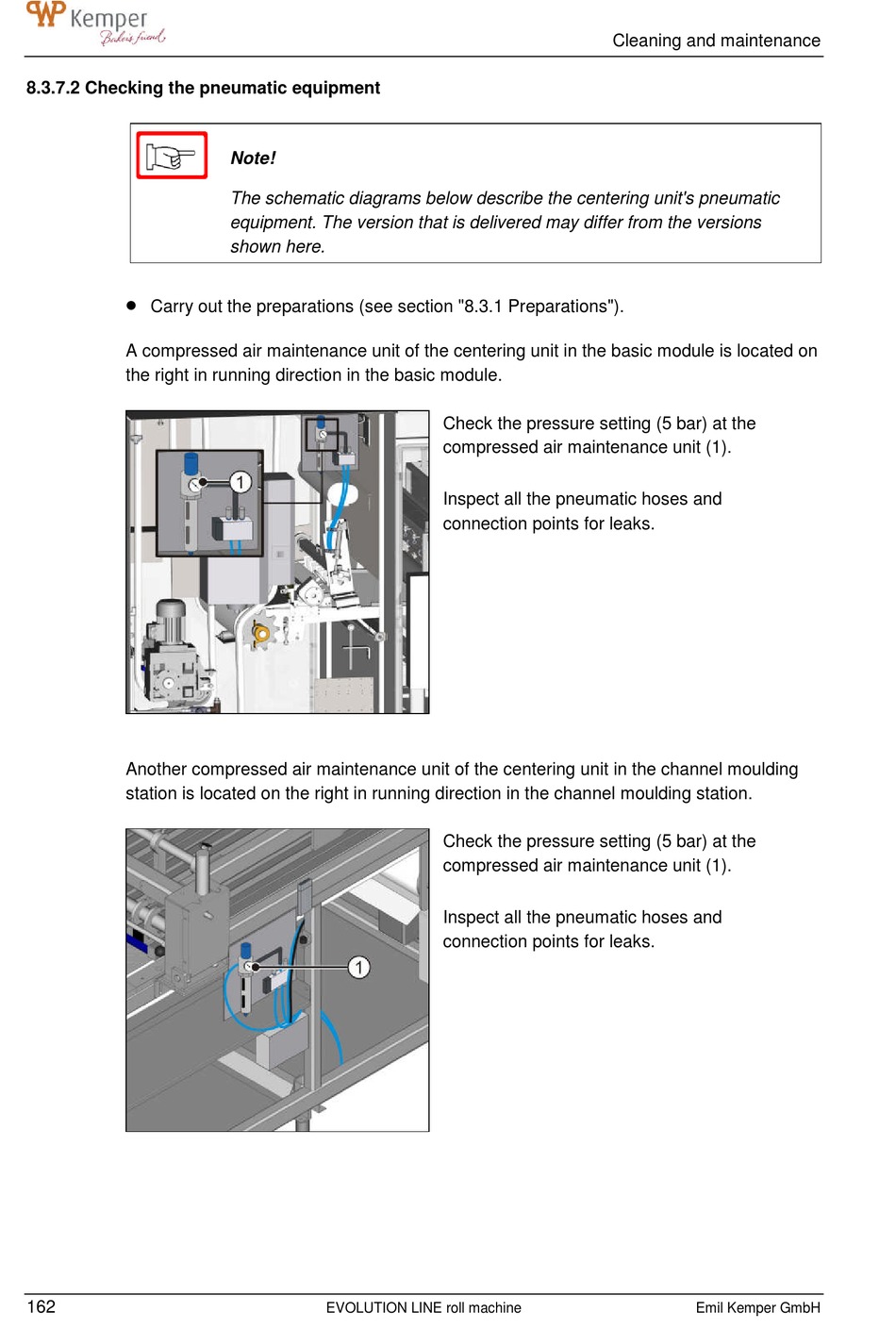

8.3.7.2 Checking the pneumatic equipment


Carry out the preparations (see section "8.3.1 Preparations").
A compressed air maintenance unit of the centering unit in the basic module is located on
the right in running direction in the basic module.
Another compressed air maintenance unit of the centering unit in the channel moulding
station is located on the right in running direction in the channel moulding station.
162
Note!
The schematic diagrams below describe the centering unit's pneumatic
equipment. The version that is delivered may differ from the versions
shown here.
EVOLUTION LINE roll machine
Check the pressure setting (5 bar) at the
compressed air maintenance unit (1).
Inspect all the pneumatic hoses and
connection points for leaks.
Check the pressure setting (5 bar) at the
compressed air maintenance unit (1).
Inspect all the pneumatic hoses and
connection points for leaks.
Cleaning and maintenance
