7.4.4 Setting the roll-out roller

Configuration of the line module Roll-out roller in the line is displayed in section
"5 Overview of the line".

7.4.4.1 Adjusting the height of the roll-out roller

7.4.5 Setting the centering unit

Configuration of the line module Centering unit in the line is displayed in section
"5 Overview of the line".

7.4.5.1 Replacing the centering flap

Emil Kemper GmbH

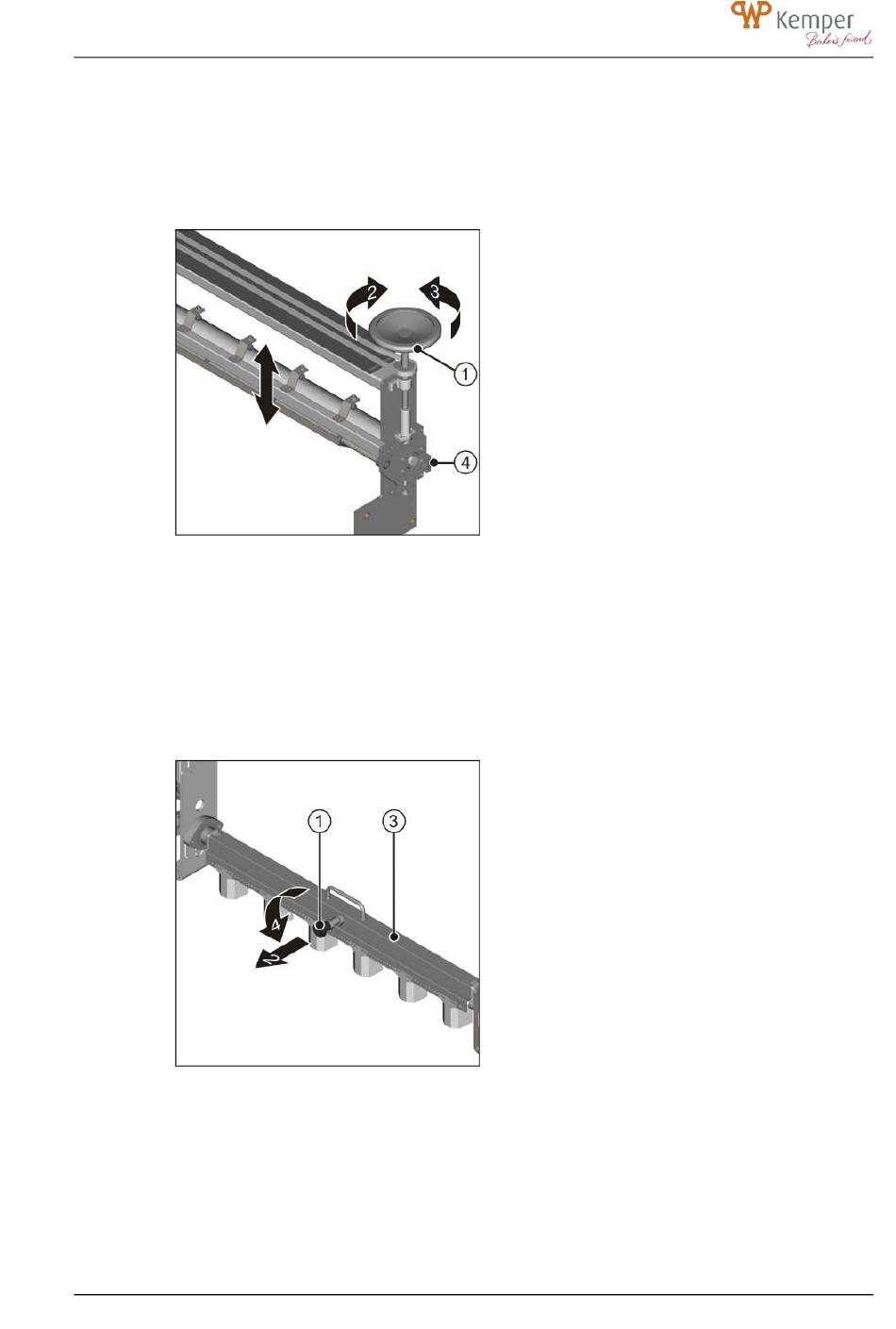

Turn the adjusting wheel (1)
clockwise (2) to increase the height of the
–
roll-out roller,
anti-clockwise (3) to decrease the height of
–
the roll-out roller.
The setting can be read on the scale (4).
Pull the index pin (1) from the centering flap (3)
in the direction of the arrow (3).
Turn the index pin (1) 90 degrees in the
direction of the arrow (4).
