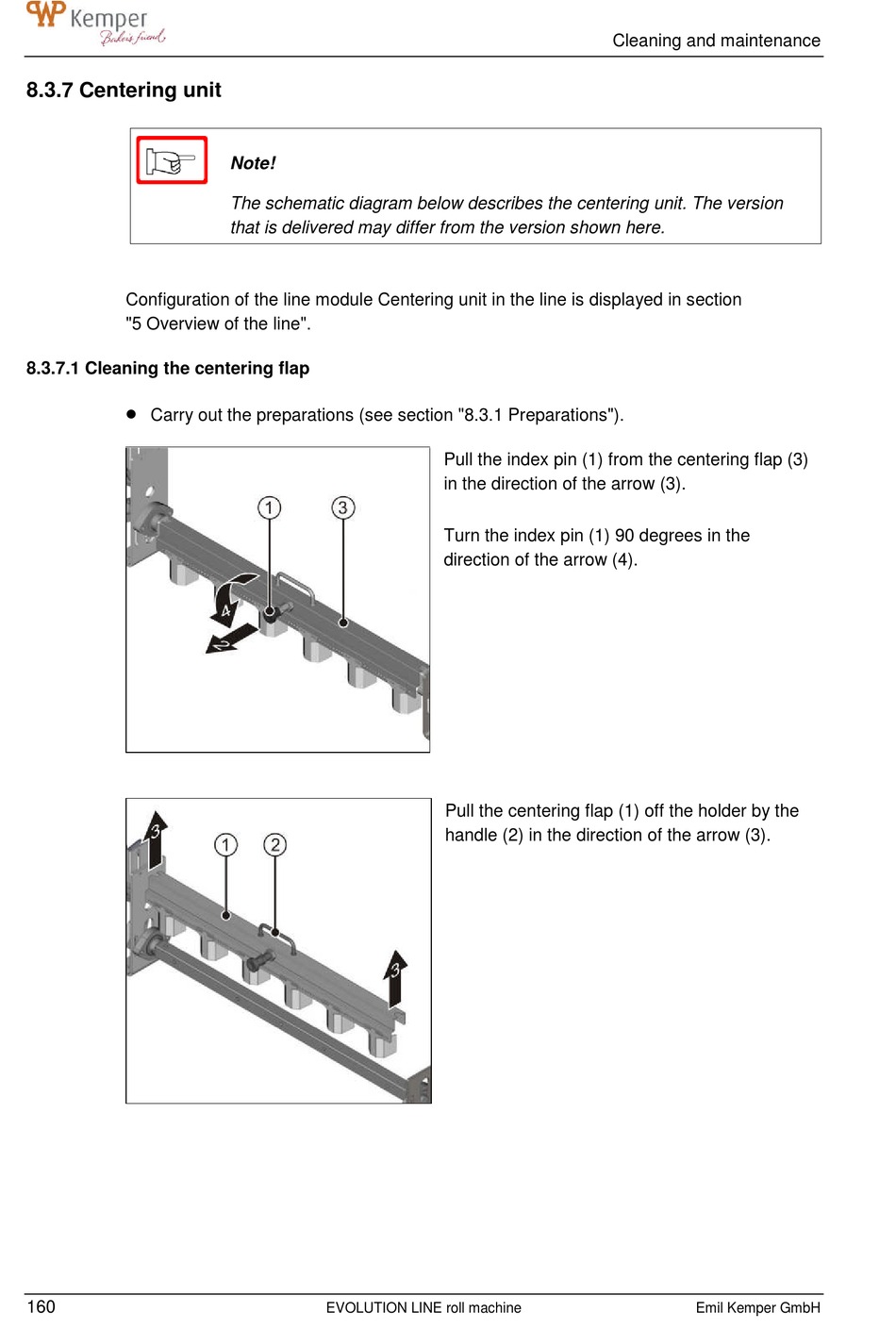

8.3.7 Centering unit

Configuration of the line module Centering unit in the line is displayed in section
"5 Overview of the line".

8.3.7.1 Cleaning the centering flap


Carry out the preparations (see section "8.3.1 Preparations").
160
Note!
The schematic diagram below describes the centering unit. The version
that is delivered may differ from the version shown here.
EVOLUTION LINE roll machine
Cleaning and maintenance
Pull the index pin (1) from the centering flap (3)
in the direction of the arrow (3).
Turn the index pin (1) 90 degrees in the
direction of the arrow (4).
Pull the centering flap (1) off the holder by the
handle (2) in the direction of the arrow (3).
