Tensioning And Lubricating The Drive Chain Of The Conveyor Belt Stroke - Kemper EVOLUTION LINE Operating Manual

Cleaning and maintenance

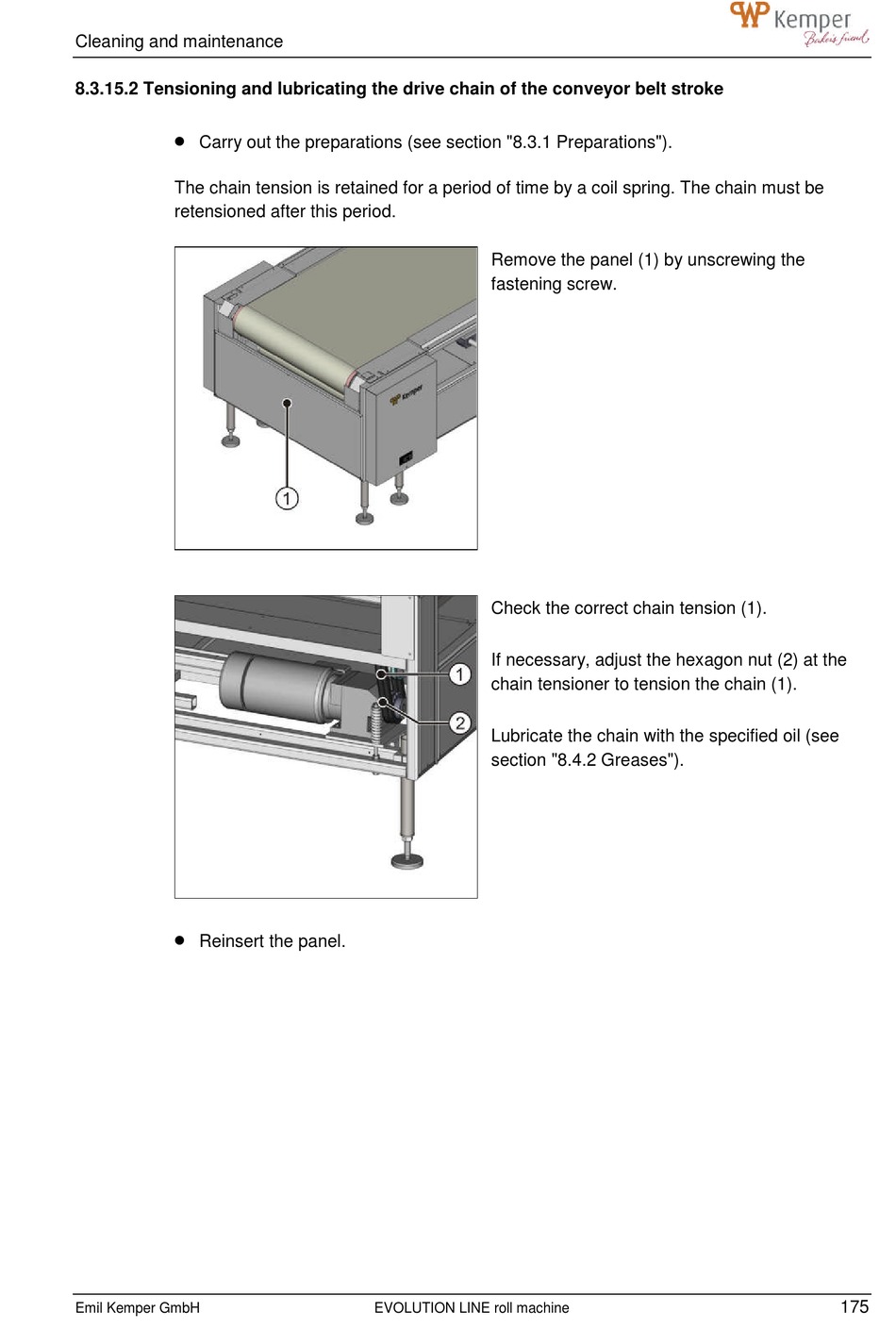

8.3.15.2 Tensioning and lubricating the drive chain of the conveyor belt stroke


Carry out the preparations (see section "8.3.1 Preparations").
The chain tension is retained for a period of time by a coil spring. The chain must be
retensioned after this period.

Reinsert the panel.
Emil Kemper GmbH
Remove the panel (1) by unscrewing the
fastening screw.
Check the correct chain tension (1).
If necessary, adjust the hexagon nut (2) at the
chain tensioner to tension the chain (1).
Lubricate the chain with the specified oil (see
section "8.4.2 Greases").
EVOLUTION LINE roll machine
175
