7.4.11 Setting the folding mats

Configuration of the line module Folding mats in the line is displayed in section
"5 Overview of the line".

7.4.11.1 Lifting folding mats out of the transport area

The function of the wire mesh belts can be deactivated by lifting them out of the transport
area. The folding flaps remain functional.

7.4.11.2 Setting the folding flaps

126

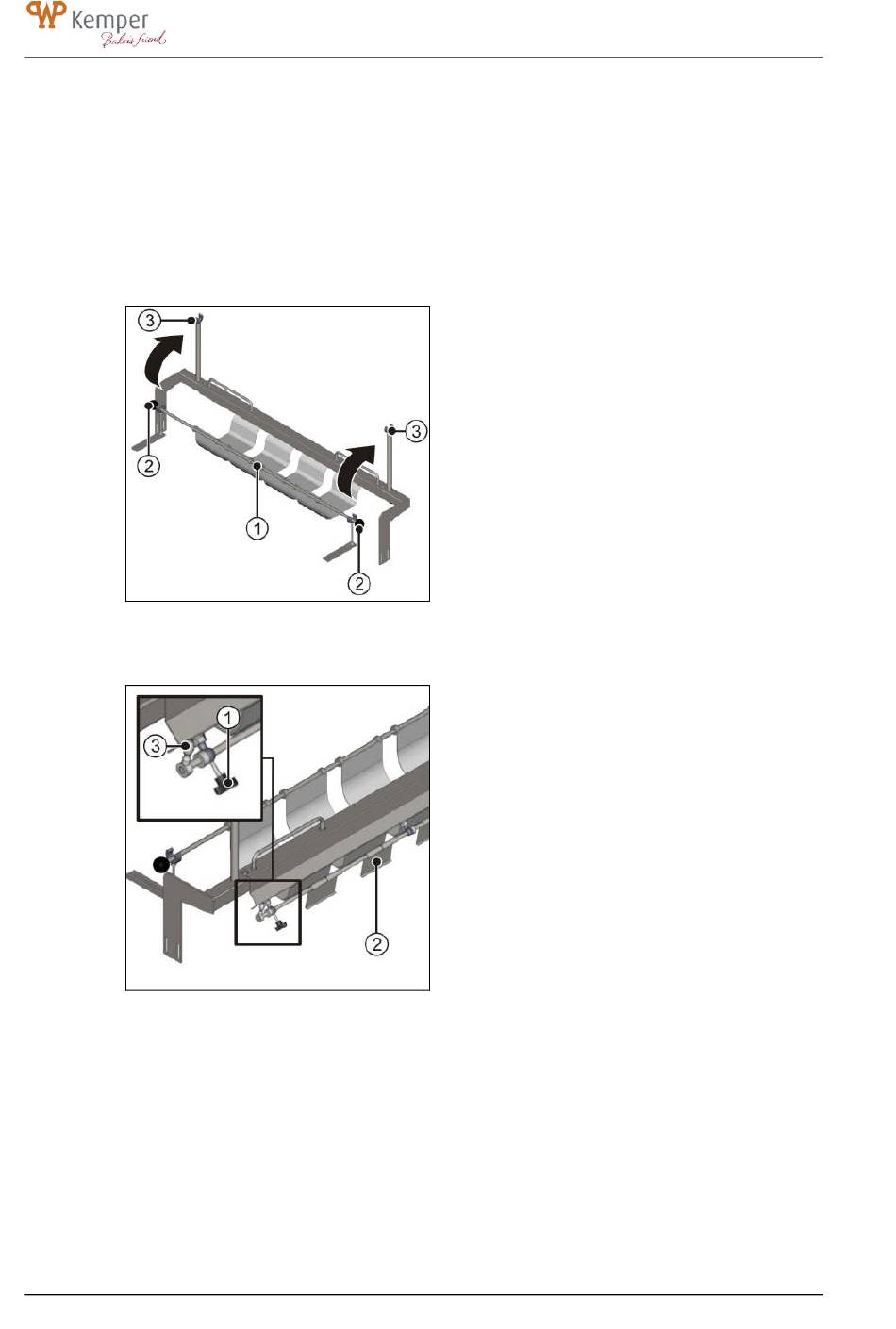

Take hold of the supporting shaft (1) for the
wire mesh belts with both hands at the ball
handles (2).
Place the supporting shaft for the wire mesh
belts (1) in the holder (3).
Use the star-shaped handle (1) to loosen the
clamp of the folding flaps.
Use the adjusting lever (3) to set the folding
flaps (2) to the desired position.
Retighten the star-shaped handle (1).
