7.4.6 Setting the cutting station

Configuration of the line module Cutting station in the line is displayed in section
"5 Overview of the line".

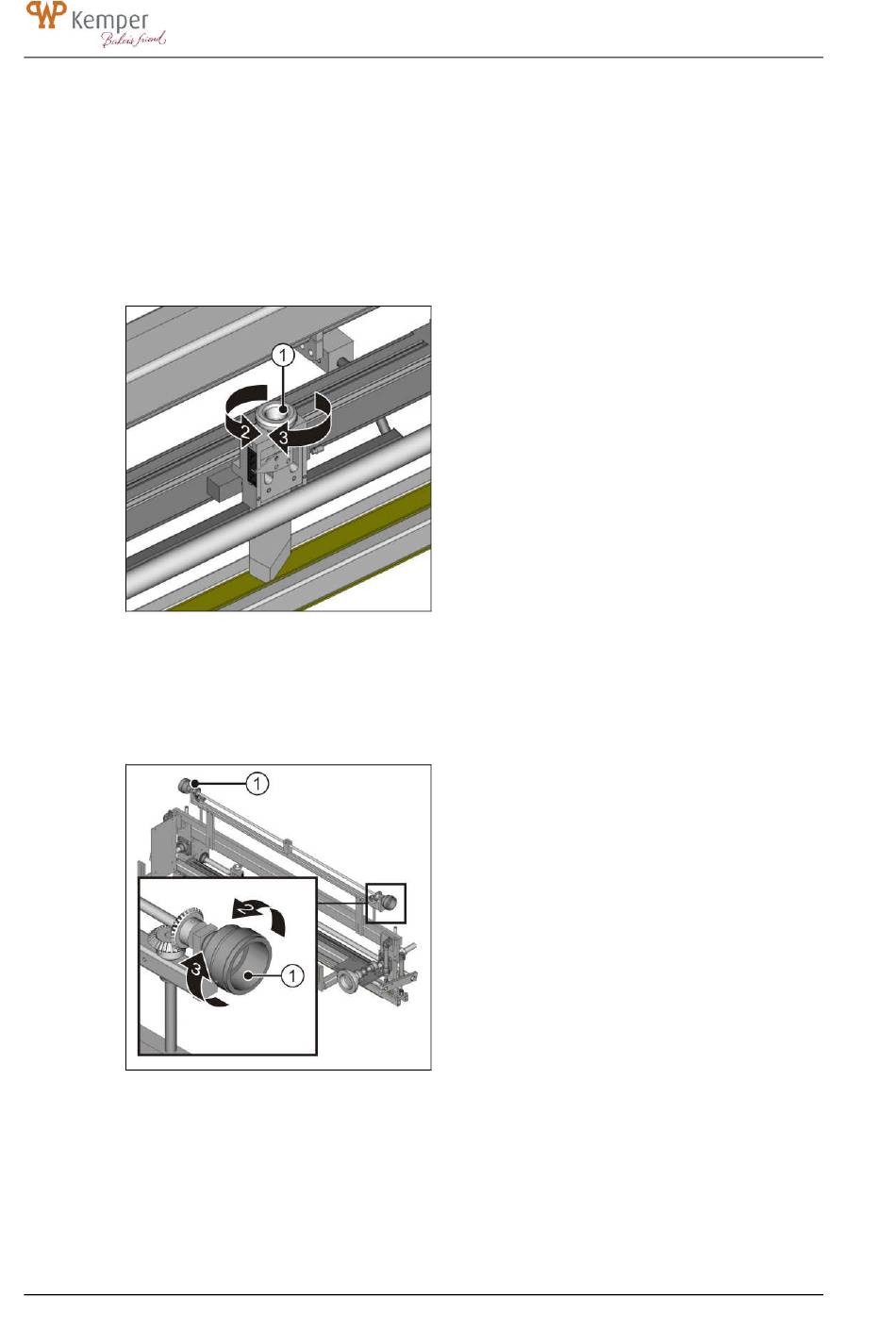

7.4.6.1 Setting the cutting depth

The cutting depth can be set via an adjusting wheel directly above the triangular knife.
The setting can be read on a scale.

7.4.6.2 Setting the hold-down

The hold-down is set via adjusting wheels on both sides of the cutting station. The setting
can be read on a scale at the adjusting wheels.
112
Turn the adjusting wheel (1) in the direction of
the arrow (2) to increase the cutting depth.
Turn the adjusting wheel (1) in the direction of
the arrow (3) to reduce the cutting depth.
Turn the adjusting wheels (1) in the direction of
the arrow (2) to move the hold-down up.
Turn the adjusting wheels (1) in the direction of
the arrow (3) to move the hold-down down.
