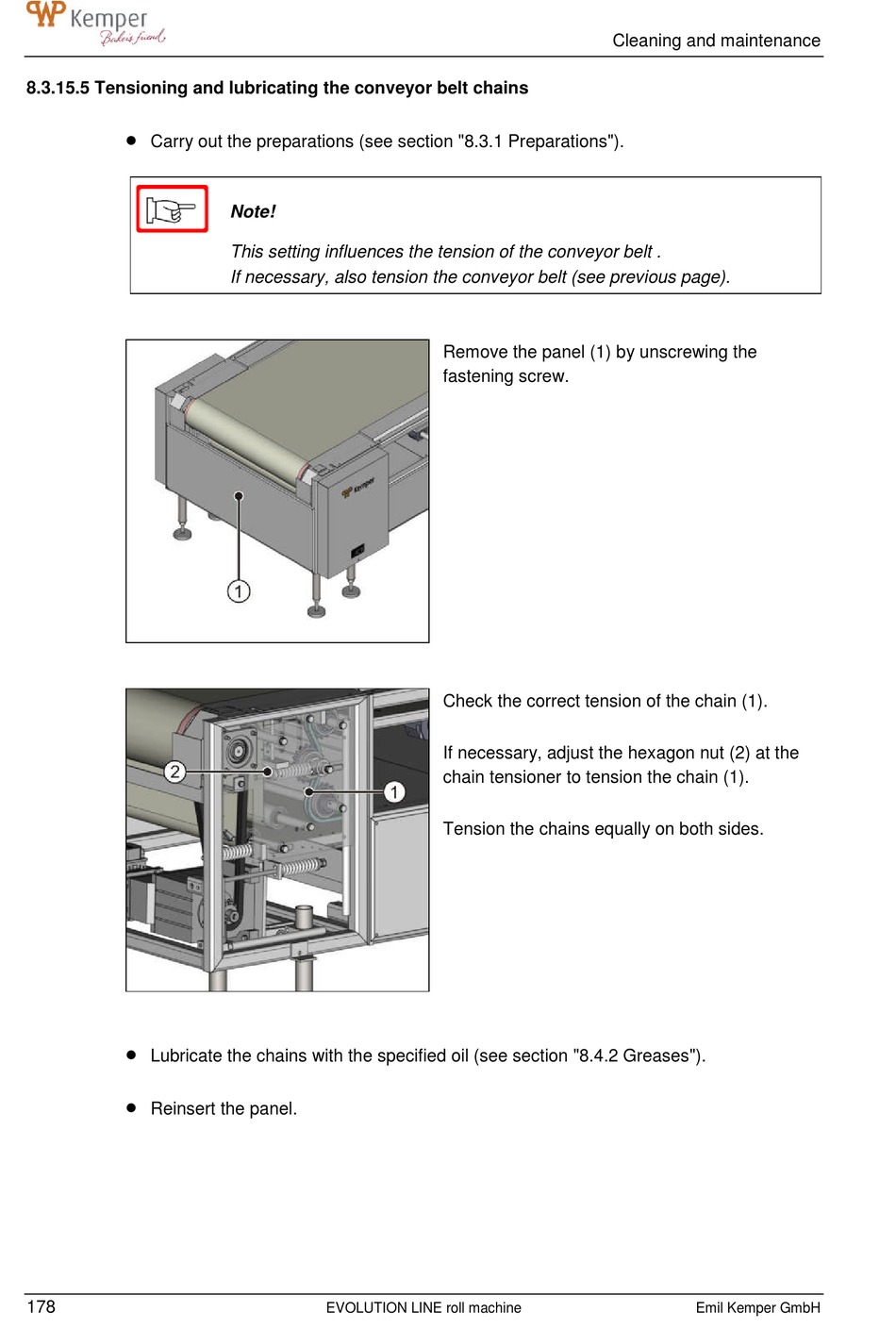

8.3.15.5 Tensioning and lubricating the conveyor belt chains


Carry out the preparations (see section "8.3.1 Preparations").

Lubricate the chains with the specified oil (see section "8.4.2 Greases").

Reinsert the panel.
178
Note!
This setting influences the tension of the conveyor belt .
If necessary, also tension the conveyor belt (see previous page).
EVOLUTION LINE roll machine
Remove the panel (1) by unscrewing the
fastening screw.
Check the correct tension of the chain (1).
If necessary, adjust the hexagon nut (2) at the
chain tensioner to tension the chain (1).
Tension the chains equally on both sides.
Cleaning and maintenance
Emil Kemper GmbH
