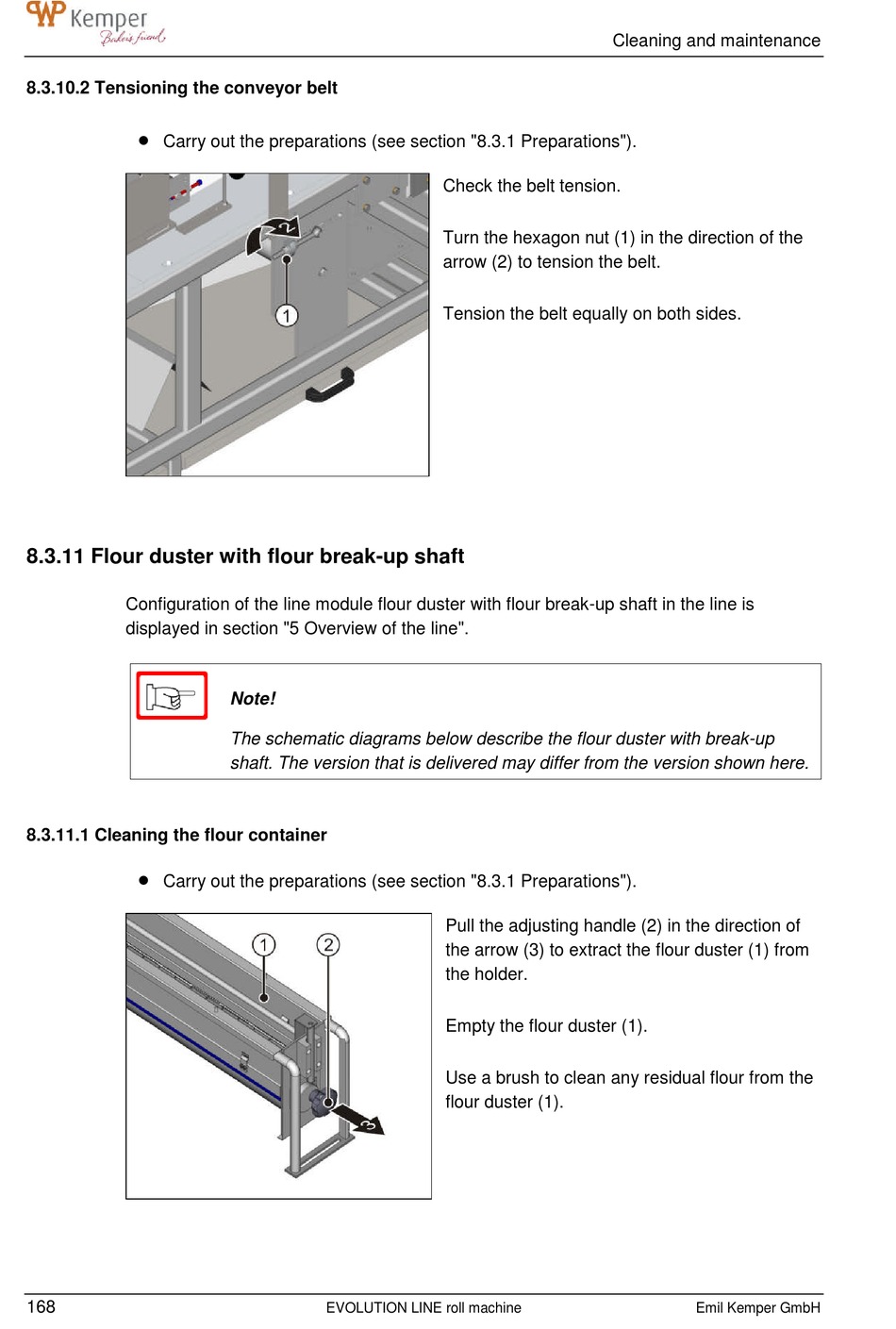

8.3.10.2 Tensioning the conveyor belt


Carry out the preparations (see section "8.3.1 Preparations").

8.3.11 Flour duster with flour break-up shaft

Configuration of the line module flour duster with flour break-up shaft in the line is
displayed in section "5 Overview of the line".

8.3.11.1 Cleaning the flour container


Carry out the preparations (see section "8.3.1 Preparations").
168
Note!
The schematic diagrams below describe the flour duster with break-up
shaft. The version that is delivered may differ from the version shown here.
EVOLUTION LINE roll machine
Check the belt tension.
Turn the hexagon nut (1) in the direction of the
arrow (2) to tension the belt.
Tension the belt equally on both sides.
Pull the adjusting handle (2) in the direction of
the arrow (3) to extract the flour duster (1) from
the holder.
Empty the flour duster (1).
Use a brush to clean any residual flour from the
flour duster (1).
Cleaning and maintenance
Emil Kemper GmbH
