7.4.7.2 Replacing the pre-pressing tool

The corresponding pre-pressing tool must be inserted to produce different stamped rolls.
118

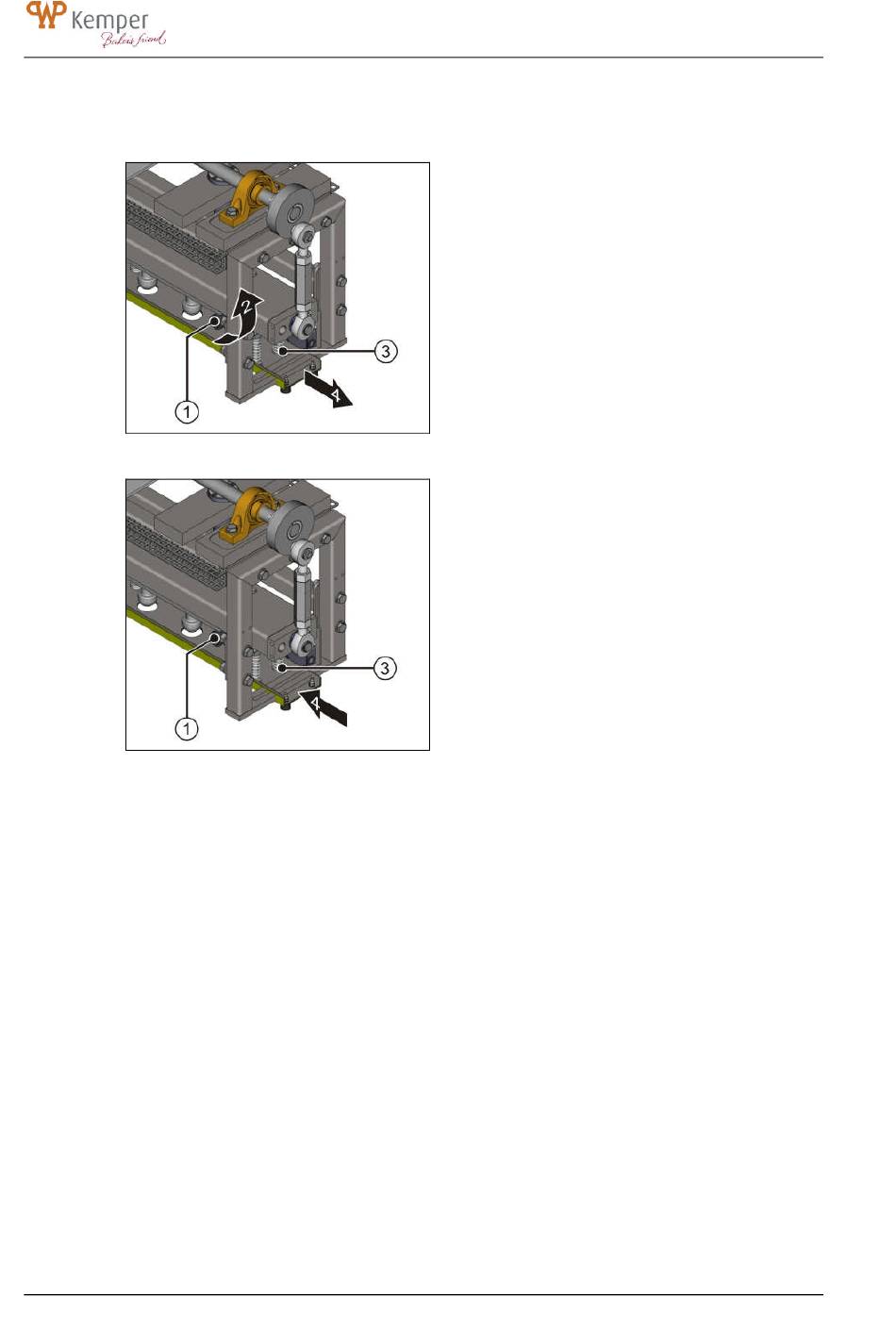

Removal
Turn the arresting pin (1) 90 degrees in the
direction of the arrow (2).
Pull the pre-pressing tool (3) out of the holder
in the direction of the arrow (4).
Fitting
Push the pre-pressing tool (3) into the holder in
the direction of the arrow (4).
Ensure that the arresting pin (1) engages in the
holder.
