7.4.2 Setting the discharge belt 1

Configuration of the line module Discharge belt 1 in the line is displayed in section
"5 Overview of the line".

7.4.2.1 Setting the pressure roller height on the pressure roller line module

Emil Kemper GmbH
Note!
The illustration of the discharge belt includes the pressure roller line
module.
Note!
The illustration of the pressure roller line module resembles the version
that is delivered. The version that is delivered may include a hand guard
and a flexible shaft to move the adjusting wheel to operate the adjustment
mechanism, which are not shown here.
EVOLUTION LINE roll machine

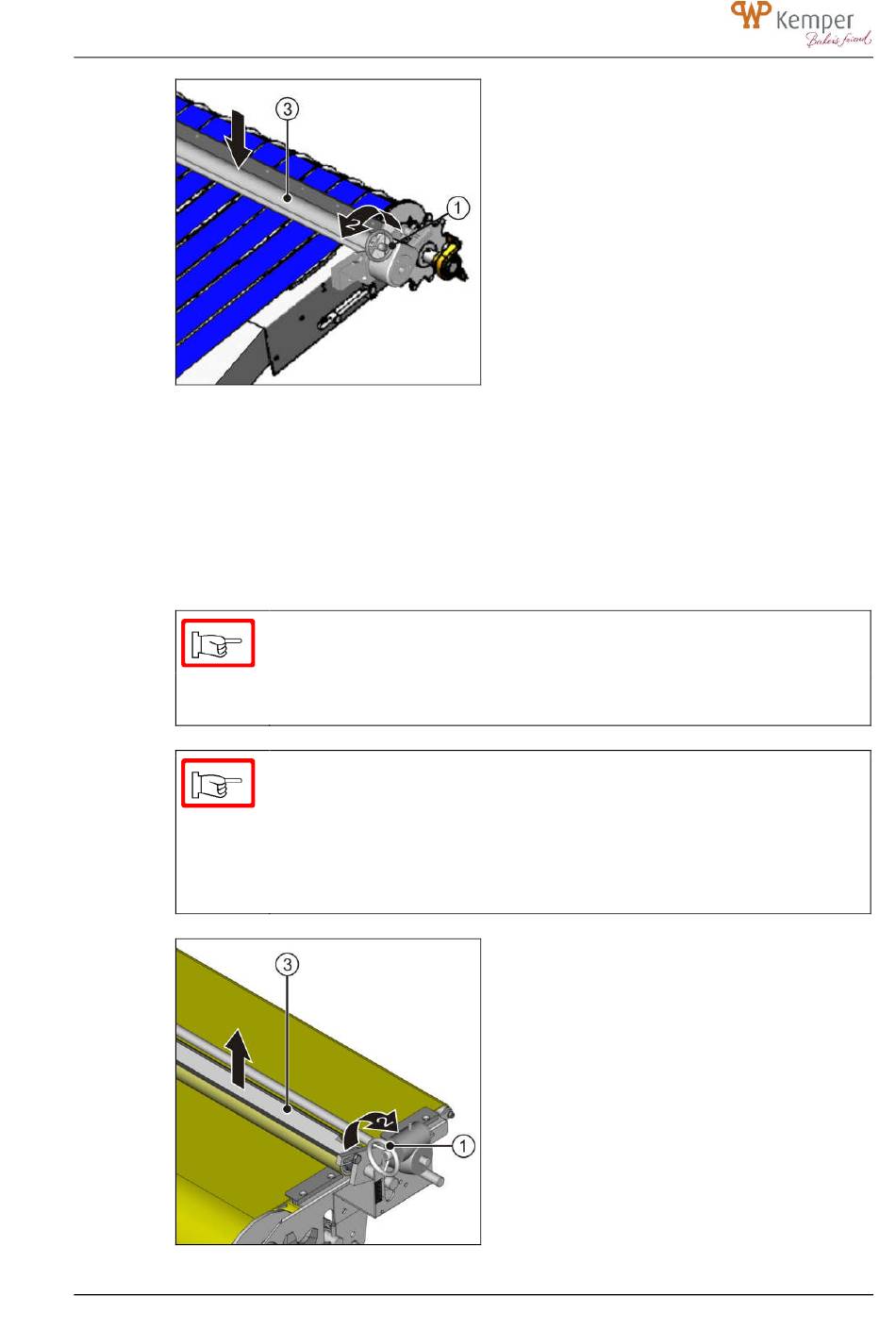

Turn the adjusting wheel (1) in the direction of
the arrow (2) to reduce the height of the
pressure roller (3) (see arrow).
Turn the adjusting wheel (1) in the direction of
the arrow (2) to increase the height of the
pressure roller (3) (see arrow).
