3. Parameter Description
NB!
Not visible in display, only in VLT Motion Control Tool, MCT 10.
Warnings are shown on display, programmed output or serial bus.
3
4-50 Warning Current Low
Range:
*
0.00A [0.00 - par. 4-51 A]
4-51 Warning Current High
Range:
*
par. 16-37 A [Par. 4-50 - par. 16-37
A]
4-52 Warning Speed Low
Range:
*
0 RPM [0 - par. 4-53 RPM]
4-53 Warning Speed High
Range:
*
par. 4-13 RPM [Par. 4-52 - par.
4-13 RPM]
NB!
Any changes in par. 4-13
If a different value is needed in par. 4-53, it must be set after programming of par. 4-13!
62
Function:
Enter the I value. When the motor current falls below this limit (I
LOW
signal outputs can be programmed to produce a status signal on terminal 27 or 29 and on relay output 01 or 02.

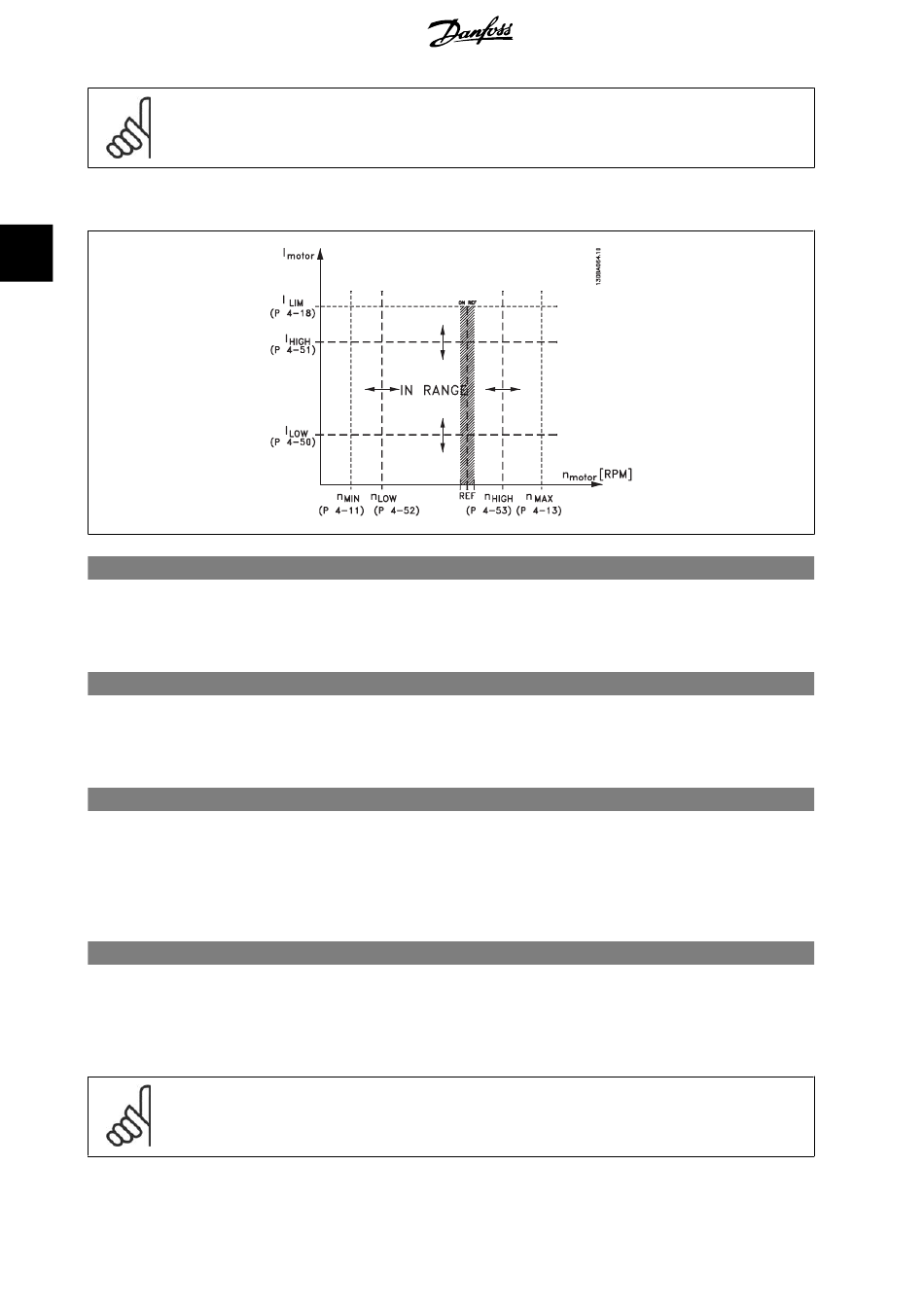

Refer to the drawing in this section.
Function:
Enter the I value. When the motor current exceeds this limit (I
HIGH
signal outputs can be programmed to produce a status signal on terminal 27 or 29 and on relay output 01 or 02.
Refer to the drawing in this section.
Function:
Enter the n value. When the motor speed falls below this limit (n
LOW
signal outputs can be programmed to produce a status signal on terminal 27 or 29 and on relay output 01 or 02.
Programme the lower signal limit of the motor speed, n
converter. Refer to the drawing in this section.
Function:
Enter the n value. When the motor speed exceeds this limit (n
HIGH
outputs can be programmed to produce a status signal on terminal 27 or 29 and on relay output 01 or 02.
Programme the upper signal limit of the motor speed, n
converter. Refer to the drawing in this section.
Motor Speed High Limit [RPM]
will reset the value in par. 4-53 to the same value as set in par. 4-13.
