Danfoss VLT FC 100 Series Programming Manual page 146

3. Parameter Description
16-68 Freq. Input 33 [Hz]
Range:
*
0 [0 - 0]
16-69 Pulse Output #27 [Hz]
Range:
*
0 [0 - 0]
3
16-70 Pulse Output 29 [Hz]
Range:
*
0 [0 - 0]

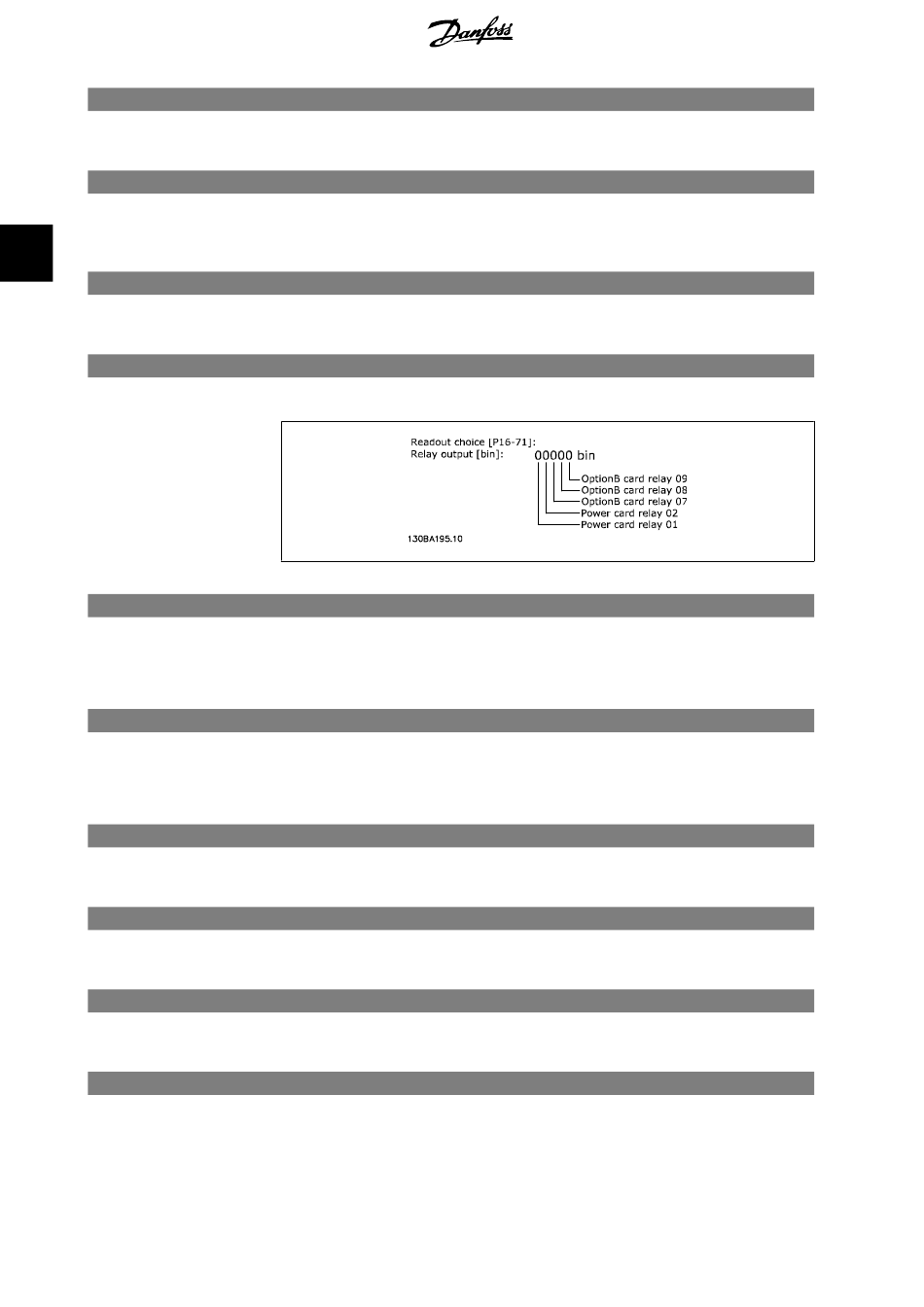

16-71 Relay Output [bin]
Range:
*
0 [0 - 31]
16-72 Counter A
Range:
*
0 [0 - 0]
16-73 Counter B
Range:
*
0 [0 - 0]
16-74 Precise Stop Counter
Range:
*
0 [-2147483648 - 2147483648]
16-75 Analog In X30/11
Range:
*
0.000 [0.000 - 0.000]
16-76 Analog In X30/12
Range:
*
0.000 [0.000 - 0.000]
16-77 Analog Out X30/8 16-77 [mA]
Range:
*
0.000 [0.000 - 0.000]
146
Function:
View the actual value of the frequency applied at terminal 33 as an impulse input.
Function:
View the actual value of impulses applied to terminal 27 in digital output mode.
Function:
View the actual value of pulses to terminal 29 in digital output mode.
Function:
View the settings of all relays.
Function:
View the present value of Counter A. Counters are useful as comparator operands, see par. 13-10.
The value can be reset or changed either via digital inputs (parameter group 5-1*) or by using an SLC action
(par. 13-52).
Function:
View the present value of Counter B. Counters are useful as comparator operands (par. 13-10).
The value can be reset or changed either via digital inputs (parameter group 5-1*) or by using an SLC action
(par. 13-52).
Function:
Returns the actual counter value of precise counter (par. 1-84).
Function:
View the actual value at input X30/11 of MCB 101.
Function:
View the actual value at input X30/12 of MCB 101.
Function:
View the actual value at input X30/8 in mA.
MG.11.C5.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive Programming Guide
