Function Setups - Danfoss VLT FC 100 Series Programming Manual

2. How to Programme

2.1.6. Function Setups

The Function set-up provides quick and easy access to all parameters required for the majority of VLT HVAC Drive applications including most VAV and
CAV supply and return fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications.
2
How to access Function Set-up - example

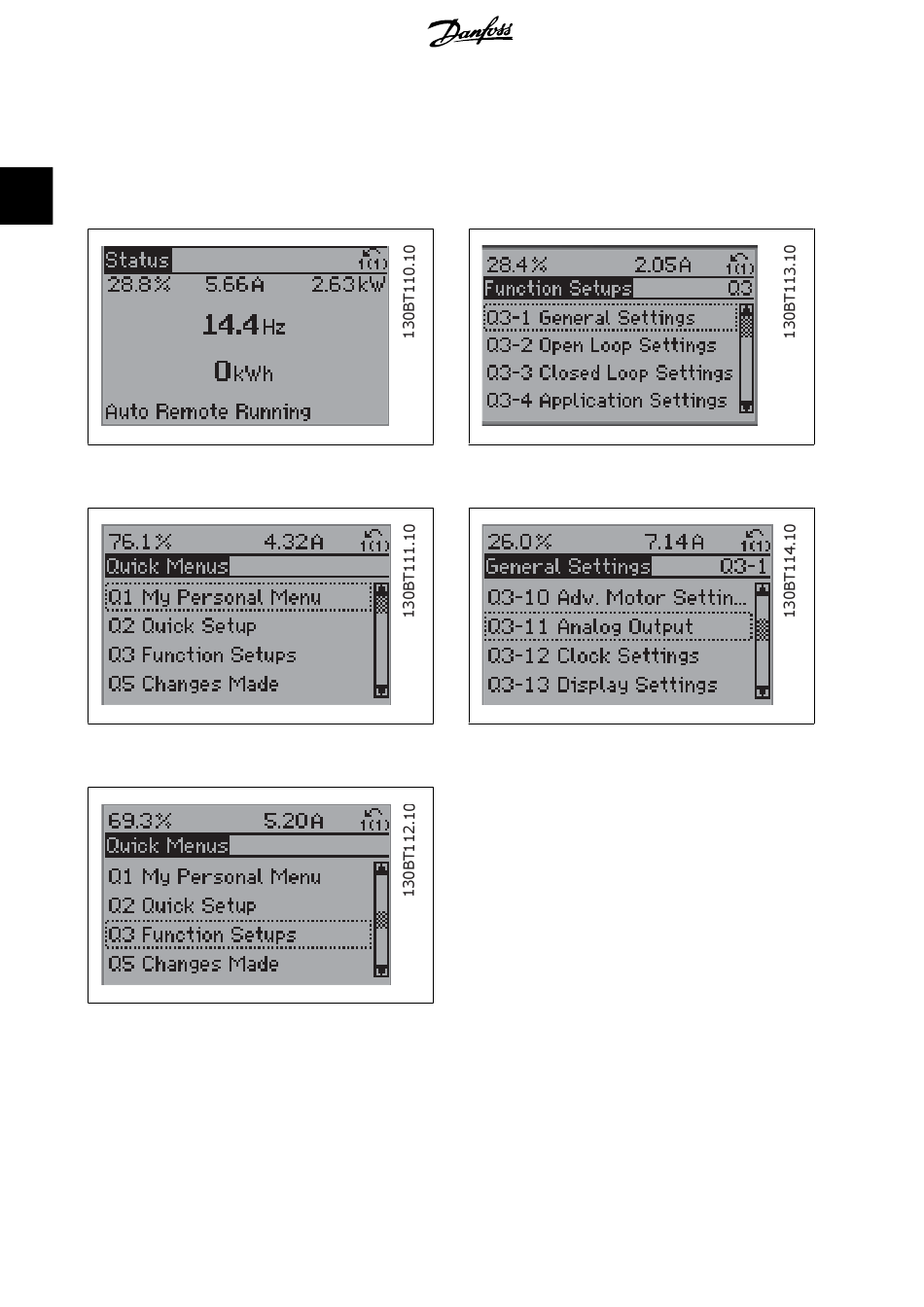

Illustration 2.7: Step 1: Turn on the frequency converter (yellow LED
lights)
Illustration 2.8: Step 2: Press the [Quick Menus] button (Quick Menus
choices appear).
Illustration 2.9: Step 3: Use the up/down navigation keys to scroll down
to Function Setups. Press [OK].
16
Illustration 2.10: Step 4: Function Setups choices appear. Choose 03-1
General Settings
Illustration 2.11: Step 5: Use the up/down navigation keys to scroll
down to i.e. 03-11
MG.11.C5.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive Programming Guide
. Press [OK].
Analog Outputs . Press [OK].
