VLT HVAC Drive Programming Guide
*
Set-up 1
[1]
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
0-13 Readout: Linked Set-ups
Array [5]
*
0 [0 - 255]
Index
0
1
2
3
4
Table 3.1: Example: Set-up 1 and Set-up 2 are linked
OR

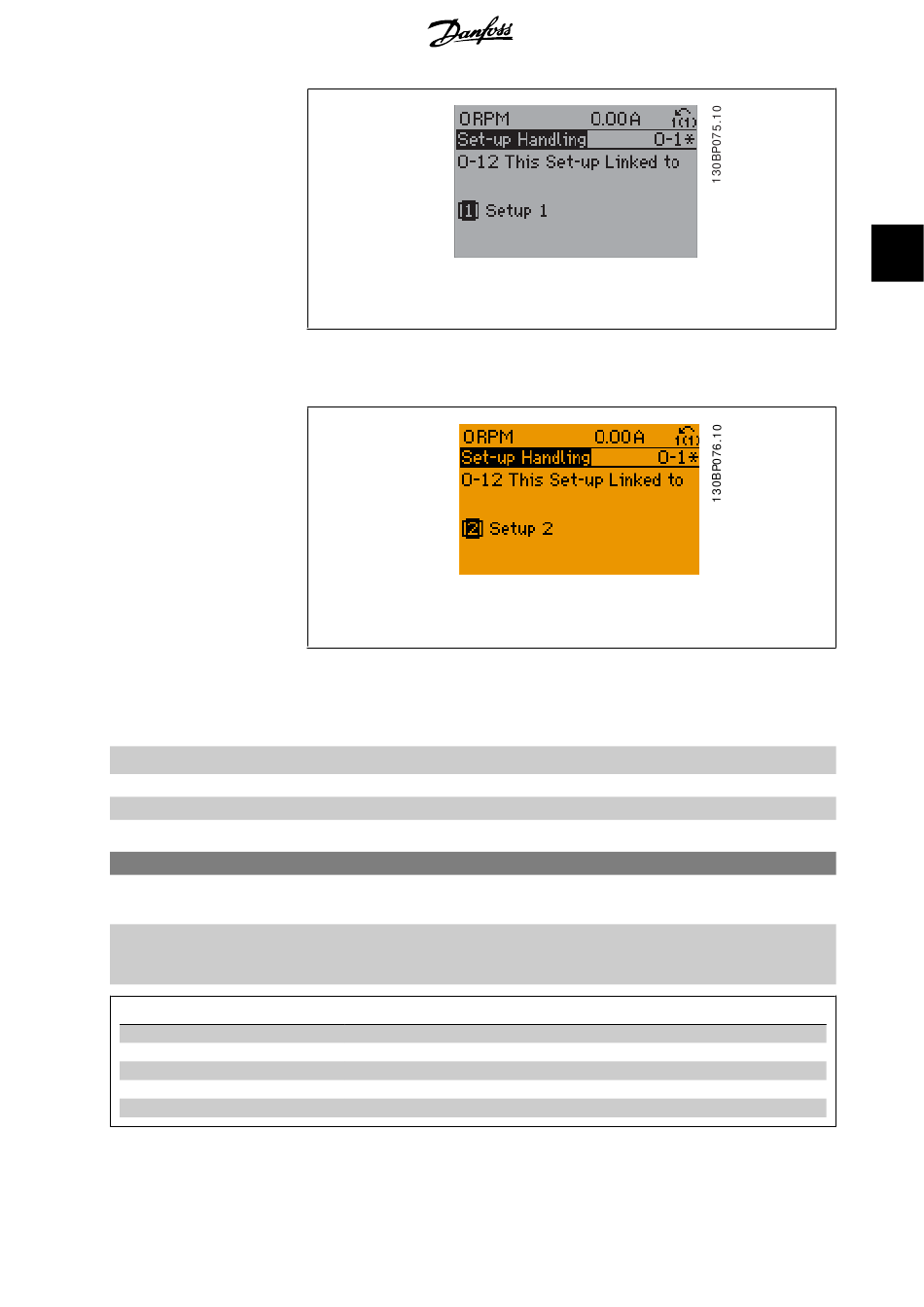

2. While still in Set-up 1, using par. 0-50, copy Set-up 1 to Set-up 2. Then set par. 0-12 to
will start the linking process.
After the link is complete, par. 0-13
during operation' parameters are now the same in Set-up 1 and Set-up 2. If there are changes to a 'not change-
able during operation' parameter, e.g. par 1-30
automatically in Set-up 1. A switch between Set-up 1 and Set-up 2 during operation is now possible.
View a list of all the set-ups linked by means of par. 0-12
for each parameter set-up. The parameter value displayed for each index represents which setups are linked to
that parameter setup.
LCP value
{0}
{1,2}
{1,2}
{3}
{4}
