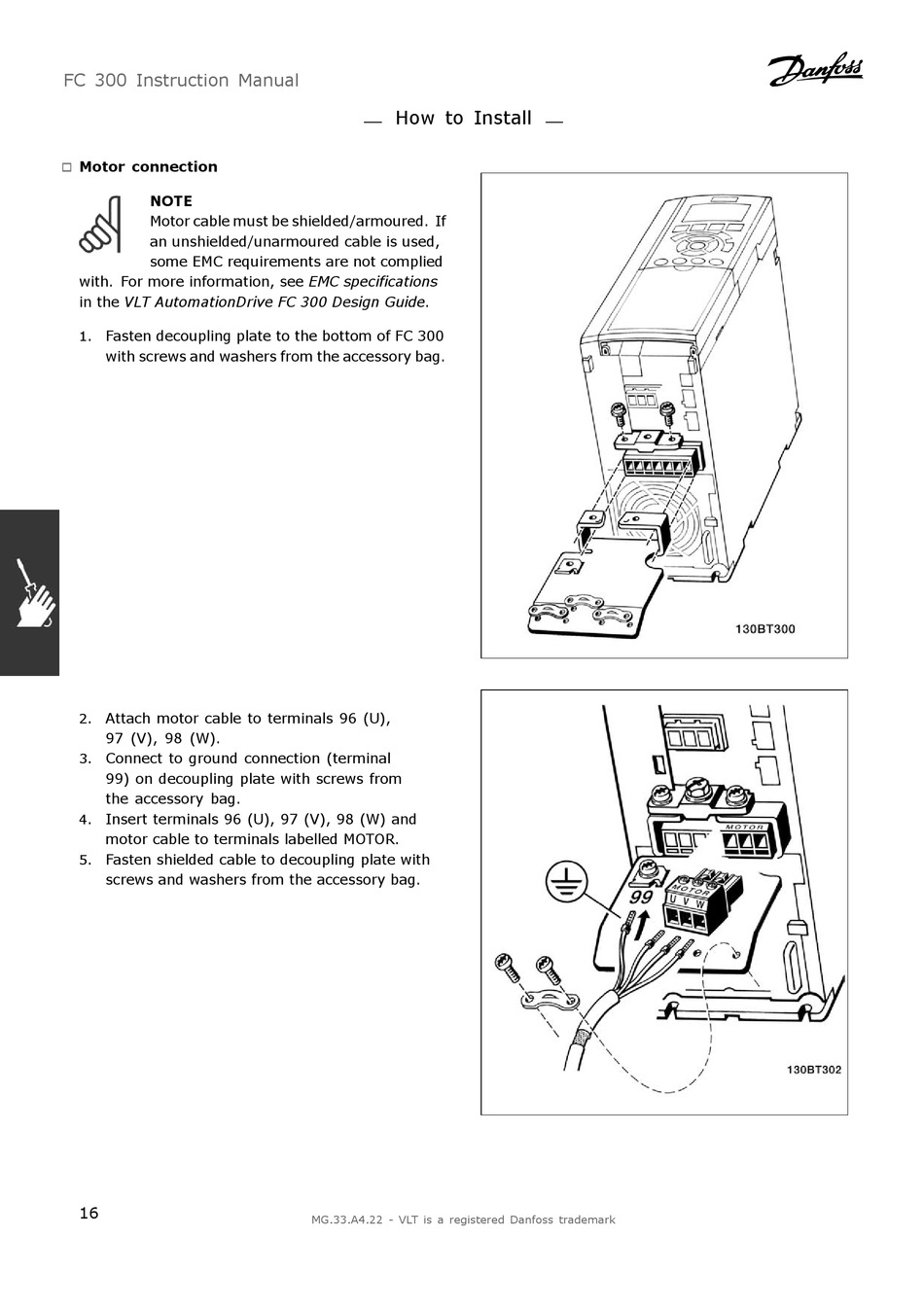

Motor connection

"
NOTE
Motor cable must be shielded/armoured. If
an unshielded/unarmoured cable is used,
some EMC requirements are not complied
with. For more information, see EMC specifications
in the VLT AutomationDrive FC 300 Design Guide.
Fasten decoupling plate to the bottom of FC 300
1.
with screws and washers from the accessory bag.
Attach motor cable to terminals 96 (U),
2.
97 (V), 98 (W).
Connect to ground connection (terminal
3.
99) on decoupling plate with screws from
the accessory bag.
4. Insert terminals 96 (U), 97 (V), 98 (W) and
motor cable to terminals labelled MOTOR.
Fasten shielded cable to decoupling plate with
5.
screws and washers from the accessory bag.
