Application Examples

6 Application Examples

6.1 Introduction

The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
0-03 Regional Settings).
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
6 6
Where switch settings for analog terminals A53 or
A54 are required, these are also shown.
NOTICE
When the optional Safe Torque Off feature is used, a
jumper wire may be required between terminal 12 (or
13) and terminal 37 for the frequency converter to
operate when using factory default programming values.

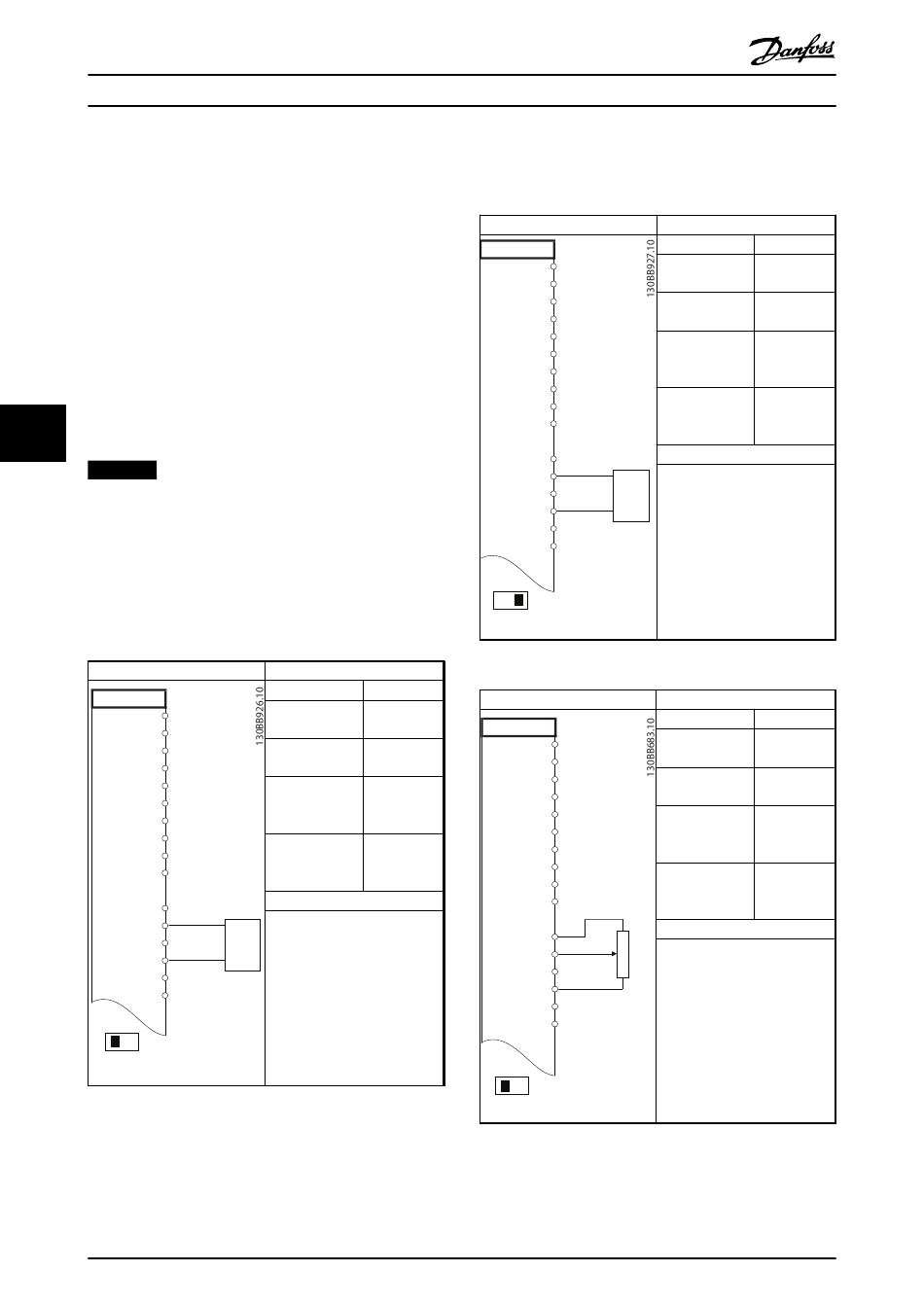

6.2 Application Examples

6.2.1 Speed

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.1 Analog Speed Reference (Voltage)
54
Operating Instructions
Parameters
Function Setting
6-10 Terminal 53 0.07 V*
Low Voltage
6-11 Terminal 53 10 V*
High Voltage
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 50 Hz
High Ref./Feedb.
Value
* = Default Value
+
Notes/comments:
D IN 37 is an option.
-
-10 - +10V
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 6.2 Analog Speed Reference (Current)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
≈ 5kΩ
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.3 Speed Reference (Using a Manual Potentiometer)
Parameters
Function Setting
6-12 Terminal 53 4 mA*
Low Current
6-13 Terminal 53 20 mA*
High Current
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 50 Hz
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
D IN 37 is an option.
Parameters
Function Setting
6-10 Terminal 53 0.07 V*
Low Voltage
6-11 Terminal 53 10 V*
High Voltage
6-14 Terminal 53 0 Hz
Low Ref./Feedb.
Value
6-15 Terminal 53 1500 Hz
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
D IN 37 is an option.
