7 Wiring Configuration Examples

7.1 Application Examples

The examples in this section are intended as a quick reference for common applications.
• Parameter settings are the regional default values unless otherwise indicated (selected in parameter 0-03 Regional Settings).
• Parameters associated with the terminals and their settings are shown next to the drawings.
• Required switch settings for analog terminals A53 or A54 are also shown.

7.1.1 Wiring Configuration for Automatic Motor Adaptation (AMA)

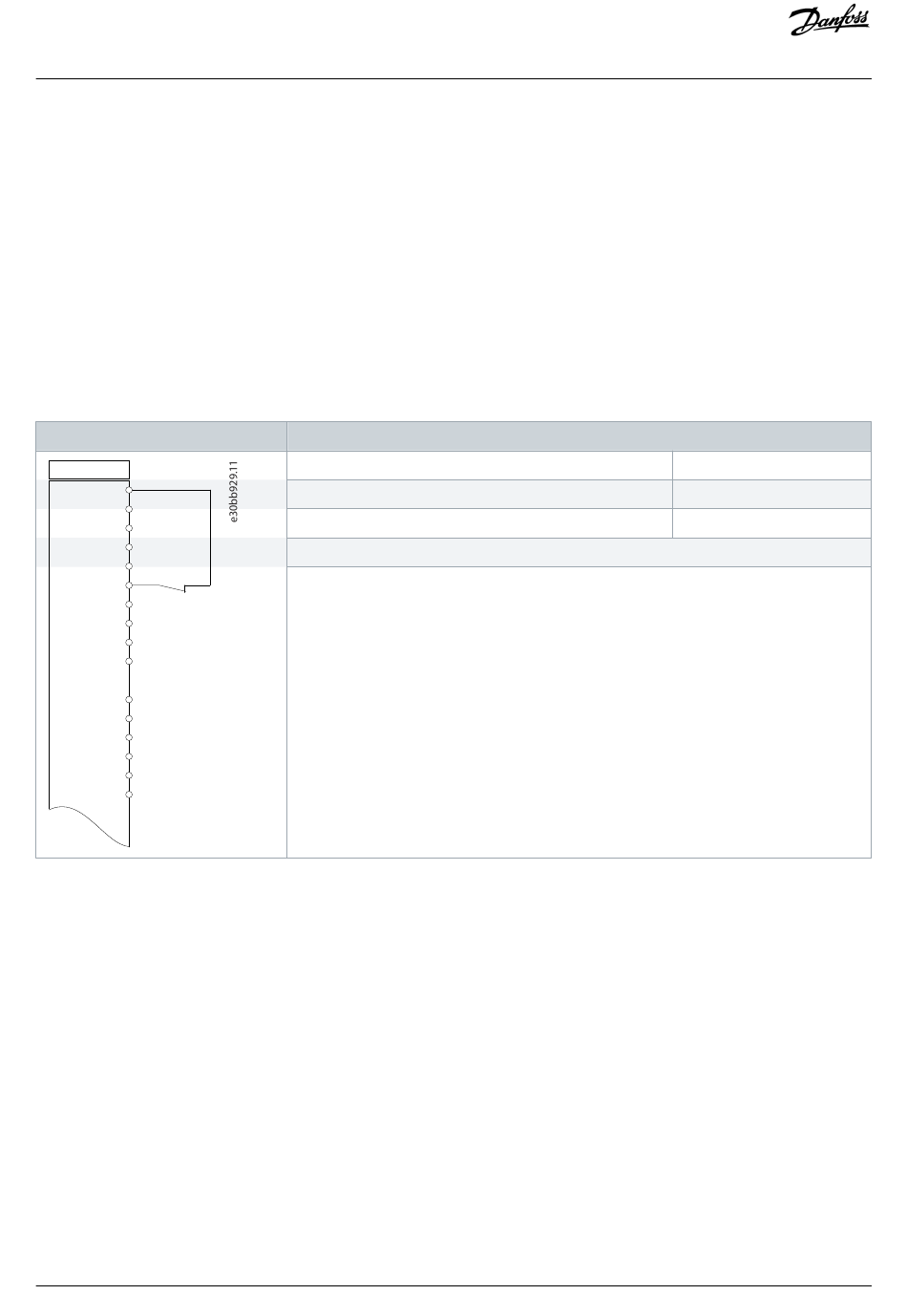

Table 16: Wiring Configuration for AMA with T27 Connected
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Danfoss A/S © 2020.01
Parameters
Function
Parameter 1-29 Automatic Motor Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Wiring Configuration Examples
Setting
[1] Enable complete AMA
[2]* Coast inverse
