How to Program
Status mode
Status mode shows the status of the frequency converter
2 2 or the motor.
If an alarm occurs, the NLCP automatically switches to
status mode.
Several alarms can be shown.
NOTICE
Parameter copy is not possible with LCP 101 numerical
local control panel.

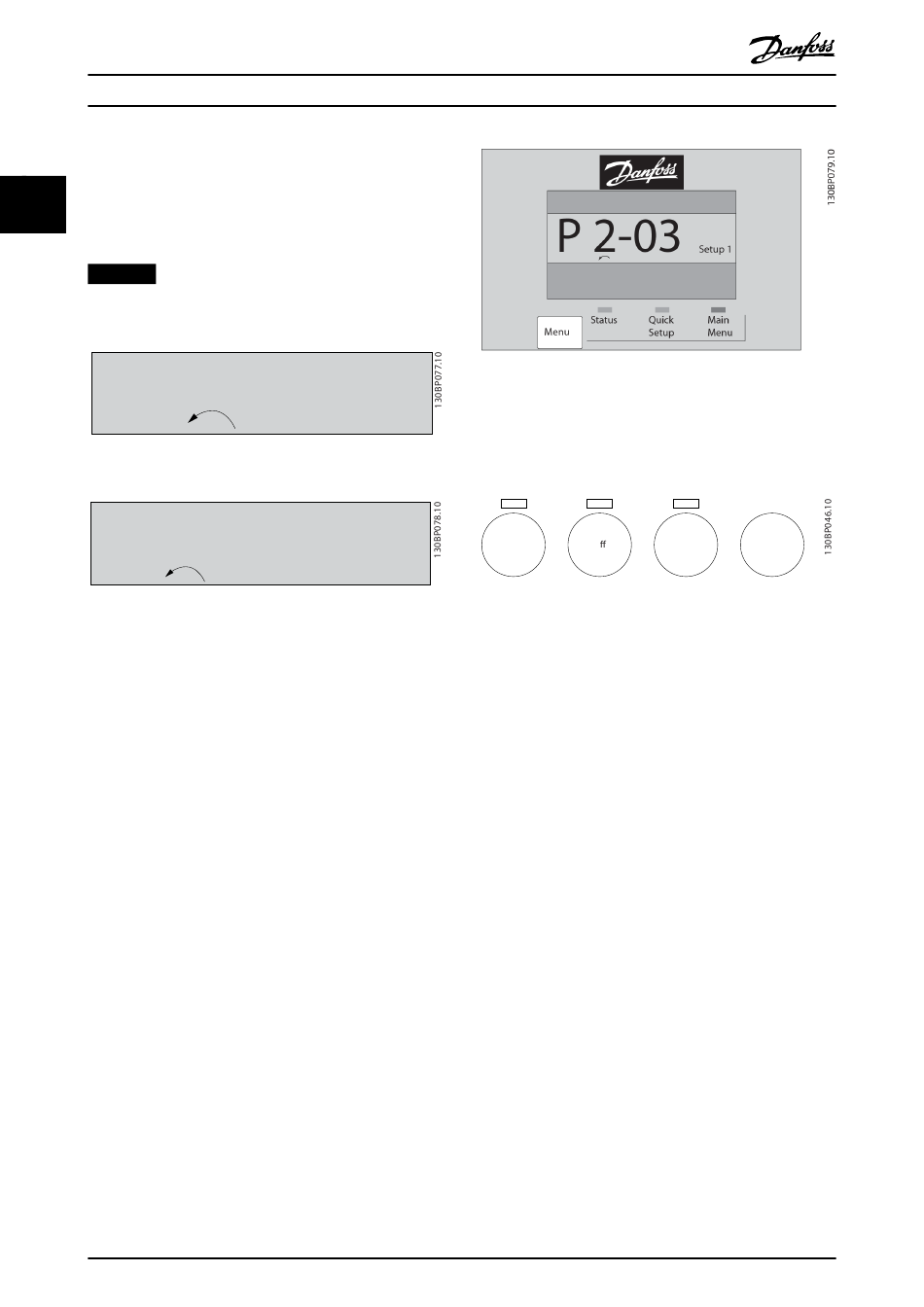

Illustration 2.22 Status Mode
Illustration 2.23 Alarm
Main Menu/Quick Set-up
Are used for programming all parameters or only the
parameters in the Quick Menu (see also description of the
LCP 102 in chapter 2.1 The Graphical and Numerical Local
Control Panels).
When the value flashes, press [
parameter values.
1. Press [Main Menu] to select main menu.
2. Select the parameter group [xx-__] and press
[OK].
3. Select the parameter [__-xx] and press [OK].
4. If the parameter is an array parameter, select the
array number and press [OK].
5. Select the required data value and press [OK].
Parameters with functional options show values such as
[1], [2], and so on. For a description of the different
options, see the individual parameter descriptions in
chapter 3 Parameter Descriptions.
[Back]
Used for stepping backwards.
▲ ▼
[ ] [ ] are used for maneuvering between commands and
within parameters.
26
VLT
22.8
A 17
▲ ▼
] or [ ] to change
Danfoss A/S © 02/2016 All rights reserved.
®
AutomationDrive FC 301/302
Illustration 2.24 Main Menu/Quick Set-up
rpm
Setup 1

2.1.17 LCP Keys

Keys for local control are at the bottom of the LCP.
Hand
on
Setup 1
Illustration 2.25 LCP Keys
[Hand On]
Enables control of the frequency converter via the LCP.
[Hand On] also starts the motor and it is now possible to
enter the motor speed data with the navigation keys. The
key can be selected as [1] Enable or [0] Disable via
parameter 0-40 [Hand on] Key on LCP.
External stop signals activated with control signals, or a
fieldbus, override a start command via the LCP.
The following control signals are still active when [Hand
On] is activated:
•
[Hand On] - [Off] - [Auto On].
•
Reset.
•
Coast stop inverse.
•
Reversing.
•
Set-up select lsb - Set-up select msb.
•
Stop command from serial communication.
•
Quick stop.
•
DC brake.
[Off]
Stops the connected motor. The key can be selected as [1]
Enable or [0] Disable via parameter 0-41 [Off] Key on LCP.
If no external stop function is selected and the [Off] key is
inactive, the motor can be stopped by disconnecting the
voltage.
Auto
O Reset
on
