Parameter Descriptions
Set-up
1
2
P 0-11
3
4
Set-up
1
2
P 0-11
3
4
Set-up
1
2
P 0-11
3
4
Set-up
1
2
P 0-11
3
4

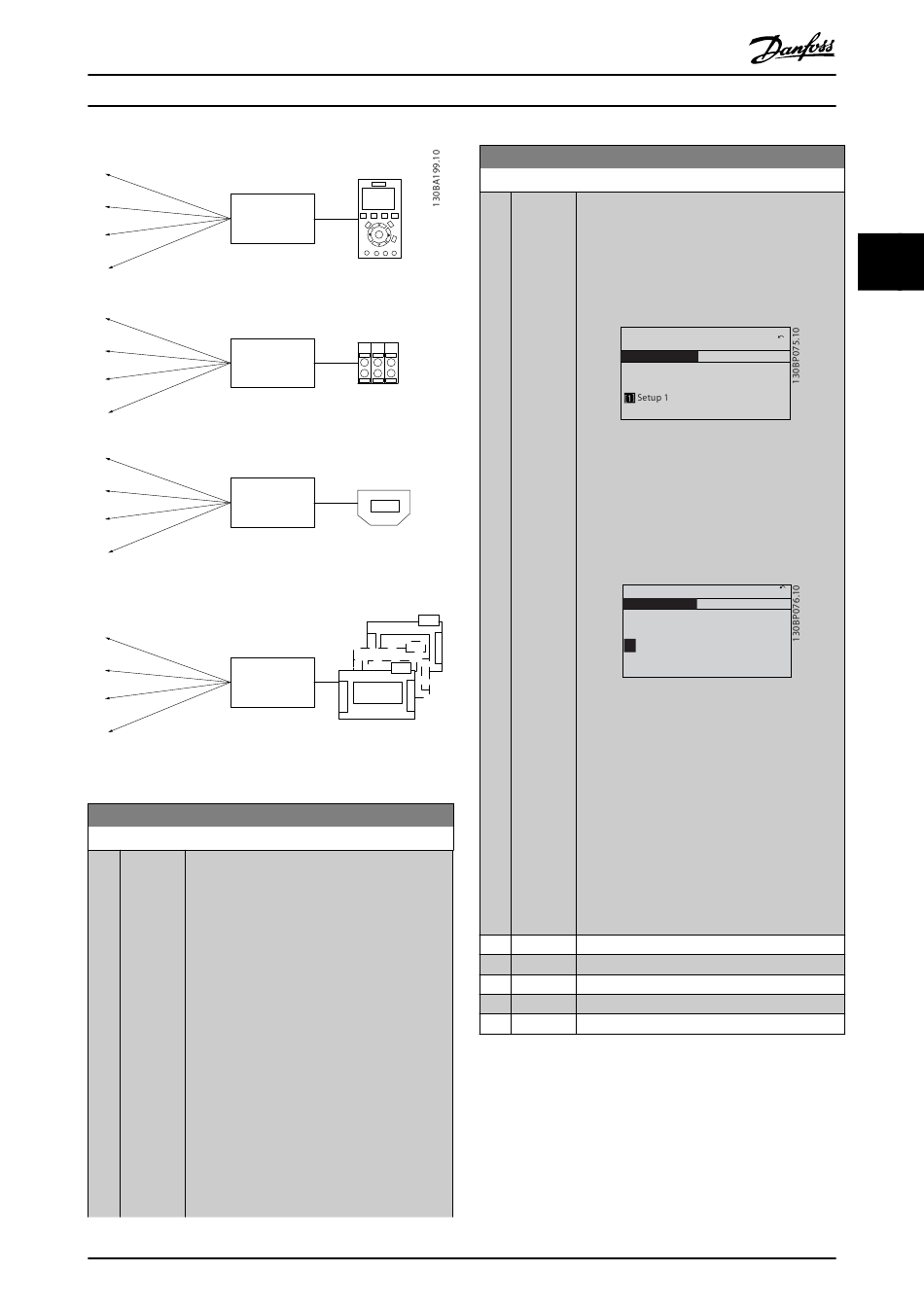

Illustration 3.1 Edit Set-up
0-12 This Set-up Linked to
Option:
Function:
To enable conflict-free changes from 1 set-up to
another during operation, link set-ups
containing parameters which are not
changeable during operation. The link ensures
synchronizing of the not changeable during
operation-parameter values when moving from
1 set-up to another during operation. Not
changeable during operation-parameters can be
identified by the label FALSE in the parameter
lists in chapter 4 Parameter Lists.
Parameter 0-12 This Set-up Linked to is used by
[9] Multi set-up in parameter 0-10 Active Set-up.
Multi set-up is used to move from 1 set-up to
another during operation (that is while the
motor runs).
Example:
Use multi set-up to shift from set-up 1 to Set-
up 2 while the motor runs. Program in set-up 1
first, then ensure that set-up 1 and set-up 2 are
MG33ML02
Programming Guide
0-12 This Set-up Linked to
Option:
PLC Fieldbus
[0]
*
[1]
[2]
[3]
[4]
Danfoss A/S © 02/2016 All rights reserved.
Function:
synchronized (or linked). Synchronization can be
performed in 2 ways:
1. Change the edit set-up to [2] Set-up 2 in
parameter 0-11 Edit Set-up and set
parameter 0-12 This Set-up Linked to to [1] Set-up
1. This starts the linking (synchronizing) process.
0 RPM
Set-up Handling
0-12 This Set-up Linked to
Illustration 3.2 Set-up 1
OR
2. While still in set-up 1, copy set-up 1 to set-up
2. Then set parameter 0-12 This Set-up Linked to
to [2] Set-up 2. This starts the linking process.
0 RPM
Set-up Handling
0-12 This Set-up Linked to
[2]
Setup 2
Illustration 3.3 Set-up 2
When completed, parameter 0-13 Readout:
Linked Set-ups reads {1,2} to indicate that all not
changeable during operation parameters are now
the same in set-up 1 and set-up 2. If there are
changes to a not changeable during operation
parameter, for example parameter 1-30 Stator
Resistance (Rs), in set-up 2, they are also
changed automatically in set-up 1. A switch
between set-up 1 and set-up 2 during
operation is now possible.
Not linked
Set-up 1
Set-up 2
Set-up 3
Set-up 4
3
0.00A
1(1)
0-1*
0.00A
1(1)
0-1*
31
3
