Parameter Descriptions
16-65 Analog Output 42 [mA]
Range: Function:
0 [0 - 30] View the actual value at output 42 in mA. The
*
value shown reflects the selection in
parameter 6-50 Terminal 42 Output.
16-66 Digital Output [bin]
Range: Function:
0 [0 - 15] View the binary value of all digital outputs.
*
16-67 Pulse Input #29 [Hz]
Range: Function:
0 [0 - 130000 ] View the actual frequency rate on terminal 29.
*
16-68 Freq. Input #33 [Hz]
Range: Function:
0 [0 - 130000] View the actual value of the frequency applied
*
at terminal 33 as an impulse input.
16-69 Pulse Output #27 [Hz]
Range: Function:
0 [0 - 40000] View the actual value of pulses applied to
*
terminal 27 in digital output mode.
16-70 Pulse Output #29 [Hz]
Range: Function:
NOTICE
0 [0 - 40000]
*
This parameter is available for FC 302
only.
View the actual value of pulses at terminal 29 in
digital output mode.
16-71 Relay Output [bin]
Range: Function:
0 [0 - 511 ] View the settings of all relays.
*

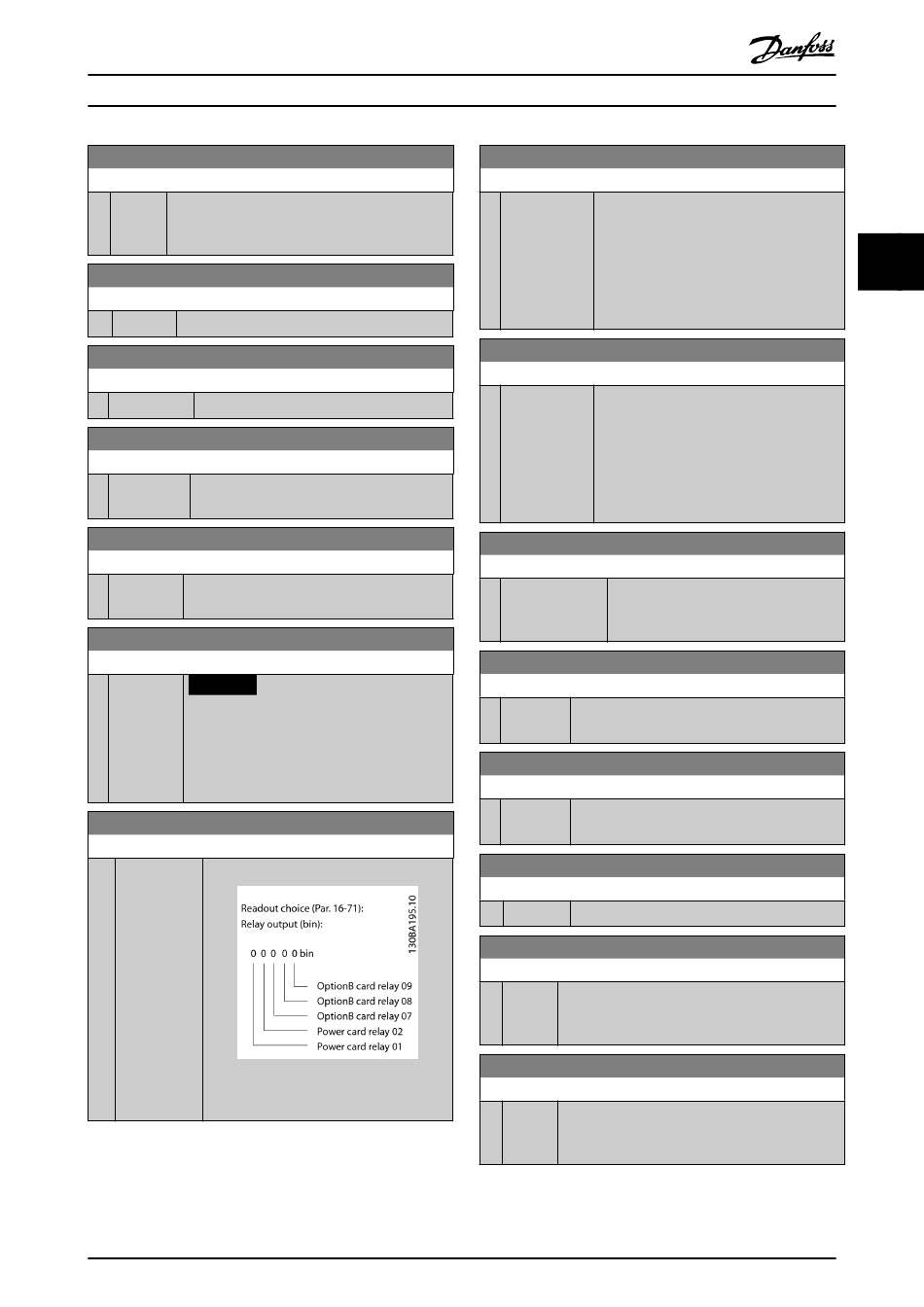

Illustration 3.64 Relay Settings
MG33ML02
Programming Guide
16-72 Counter A
Range:
0 [-2147483648
*
- 2147483647]
16-73 Counter B
Range:
0 [-2147483648
*
- 2147483647]
16-74 Prec. Stop Counter
Range:
0 [0 - 2147483647] Returns the actual counter value of
*
16-75 Analog In X30/11
Range:
0 [-20 - 20 ] View the actual value at input X30/11 of VLT
*
16-76 Analog In X30/12
Range:
0 [-20 - 20 ] View the actual value at input X30/12 of VLT
*
16-77 Analog Out X30/8 [mA]
Range:
0 [0 - 30 ]
*
16-78 Analog Out X45/1 [mA]
Range:
0 [0 - 30] View the actual value at output X45/1. The value
*
16-79 Analog Out X45/3 [mA]
Range:
0 [0 - 30] View the actual value at output X45/3. The value
*
Danfoss A/S © 02/2016 All rights reserved.
Function:
View the present value of counter A.
Counters are useful as comparator operands,
see parameter 13-10 Comparator Operand.
Reset or change the value either via digital
inputs (parameter group 5-1* Digital Inputs)
or by using an SLC action
(parameter 13-52 SL Controller Action).
Function:
View the present value of counter B.
Counters are useful as comparator operands
(parameter 13-10 Comparator Operand).
Reset or change the value either via digital
inputs (parameter group 5-1* Digital Inputs)
or by using an SLC action
(parameter 13-52 SL Controller Action).
Function:
precise counter (parameter 1-84 Precise
Stop Counter Value).
Function:
General Purpose I/O MCB 101.
Function:
General Purpose I/O MCB 101.
Function:
View the actual value at input X30/8 in mA.
Function:
shown reflects the selection in
parameter 6-70 Terminal X45/1 Output.
Function:
shown reflects the selection in
parameter 6-80 Terminal X45/3 Output.
