Parameter Descriptions
3 3
-100

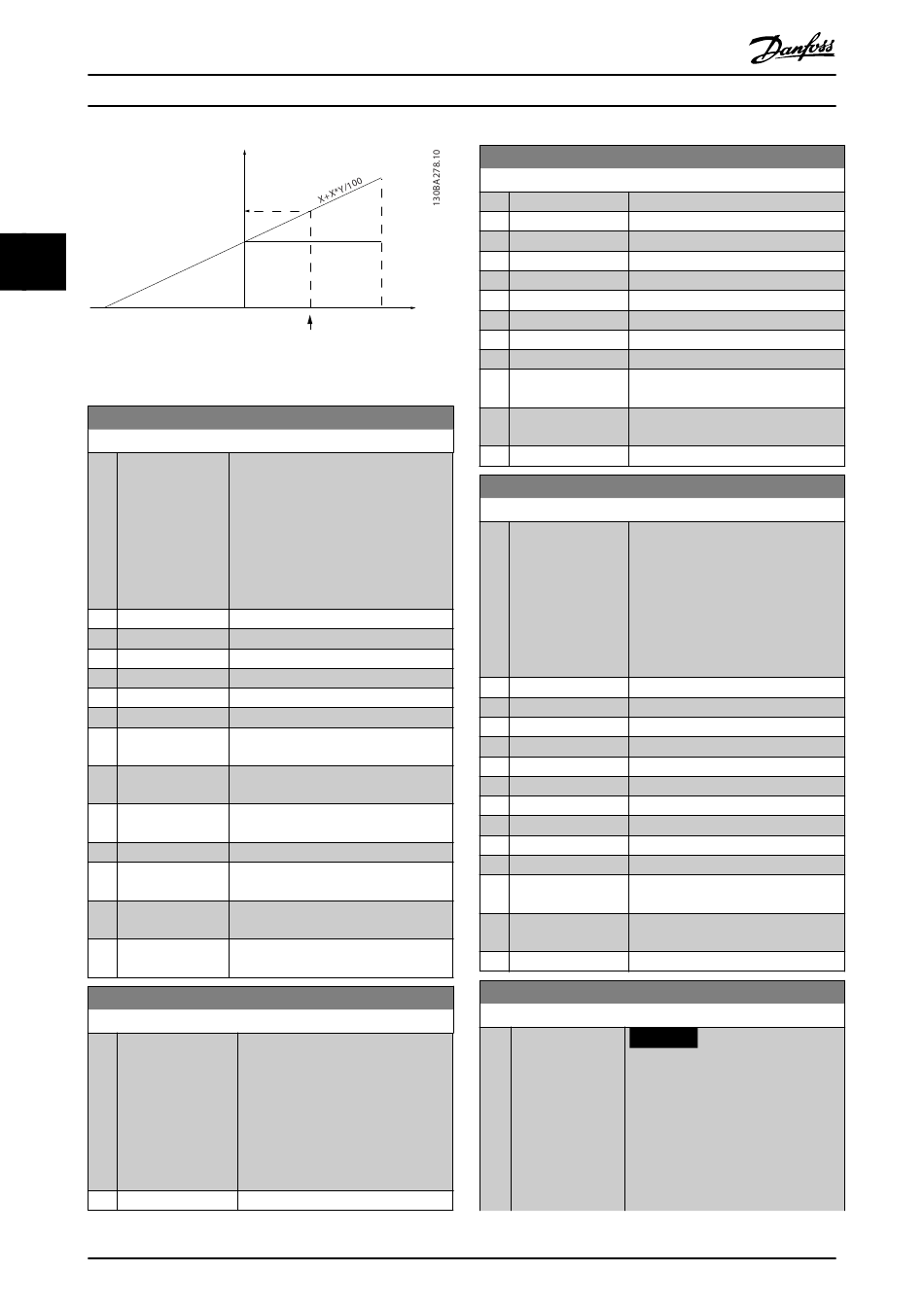

Illustration 3.23 Actual Reference
3-15 Reference Resource 1
Option:
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[3] 24V encoder
[4] MCB 102
[5] MCB 103
[7] Frequency input
29
[8] Frequency input
33
[11] Local bus
reference
[20] Digital pot.meter
[21] Analog input
X30/11
[22] Analog input
X30/12
[29] Analog Input
X48/2
3-16 Reference Resource 2
Option:
[0] No function
74
®
VLT AutomationDrive FC 301/302
Z
X
Y
0 100 %
P 3-14
Function:
Select the reference input to be used
for the first reference signal.
Parameter 3-15 Reference Resource 1,
parameter 3-16 Reference Resource 2,
and parameter 3-17 Reference Resource 3
define up to 3 different reference
signals. The sum of these reference
signals defines the actual reference.
®
VLT General Purpose I/O MCB 101
®
VLT General Purpose I/O MCB 101
Function:
Select the reference input to be used
for the 2 nd reference signal.
Parameter 3-15 Reference Resource 1,
parameter 3-16 Reference Resource 2,
and parameter 3-17 Reference Resource
3 define up to 3 different reference
signals. The sum of these reference
signals defines the actual reference.
Danfoss A/S © 02/2016 All rights reserved.
3-16 Reference Resource 2
Option: Function:
[1] Analog Input 53
[2] Analog Input 54
[3] 24V encoder
[4] MCB 102
[5] MCB 103
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input
X30/11
[22] Analog input
X30/12
[29] Analog Input X48/2
3-17 Reference Resource 3
Option: Function:
Select the reference input to be used
for the third reference signal.
Parameter 3-15 Reference Resource 1,
parameter 3-16 Reference Resource 2,
and parameter 3-17 Reference Resource
3 define up to 3 different reference
signals. The sum of these reference
signals defines the actual reference.
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[3] 24V encoder
[4] MCB 102
[5] MCB 103
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input
X30/11
[22] Analog input
X30/12
[29] Analog Input X48/2
3-18 Relative Scaling Reference Resource
Option: Function:
NOTICE
This parameter cannot be
adjusted while the motor is
running.
Select a variable value to be added to
the fixed value (defined in
parameter 3-14 Preset Relative
Reference). The sum of the fixed and
