B.2.3 OC-3 Single/Multi Mode PIIC Module Kits (CEFD P/N KT-000025X)
Quantity
Item
KT-0000256
1 1
1
2
–

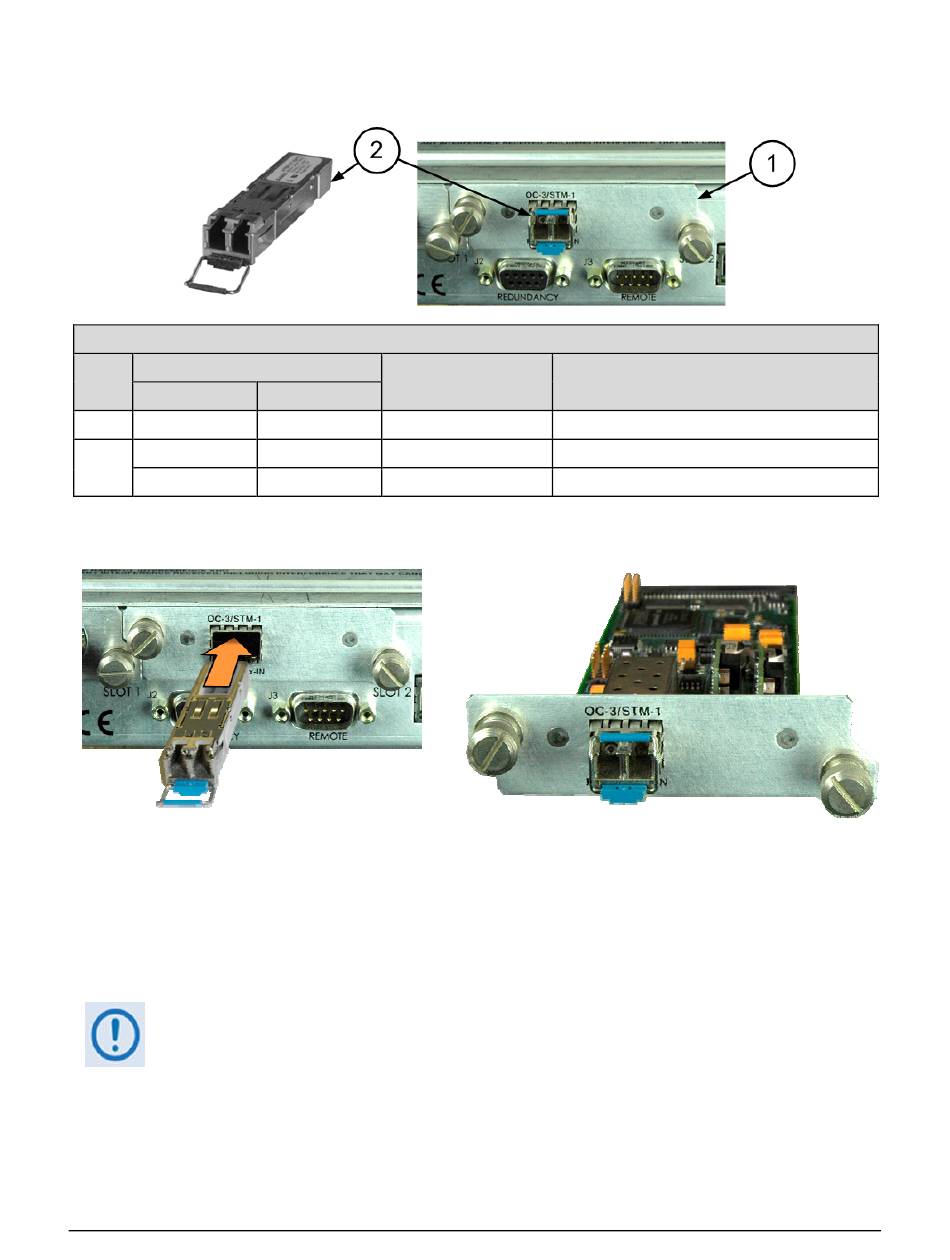

Figure B-7. OC-3 Single Mode or Multi Mode PIIC Module Kit (CEFD P/N KT-000025X)
Figure B-8. OC-3 Single Mode or Multi Mode PIIC Module – SFP Installation
Use the OC‐3 Single or Multi Mode PIIC module in either of the CDM‐750 rear panel interface option
slots. The PIIC module features an SFP (Small Form Factor Pluggable) docking cage that accepts either
the Comtech EF Data OC‐3 Single Mode or Multi Mode SFP transceiver module (Figure B‐8).
User‐supplied standard modules (SFP Multi‐Source Agreement (MSA) SFF‐8074i and SFF‐
8472 Rev. 9.3) may be used, but Comtech EF Data does not guarantee interoperability.
See Figure B‐1 for installation of a PIIC module into an available PIIC interface slot.
KT-00025X OC-3 Single Mode or Multi Mode PIIC Module Kits
CEFD Part Number
KT-0000257
1 PL-0001067
– IC-0000687
1 IC-0000690
B–8
Description
PIIC Module
SFP OC-3 Single Mode Optical Transceiver Module
SFP OC-3 Multi Mode Optical Transceiver Module
