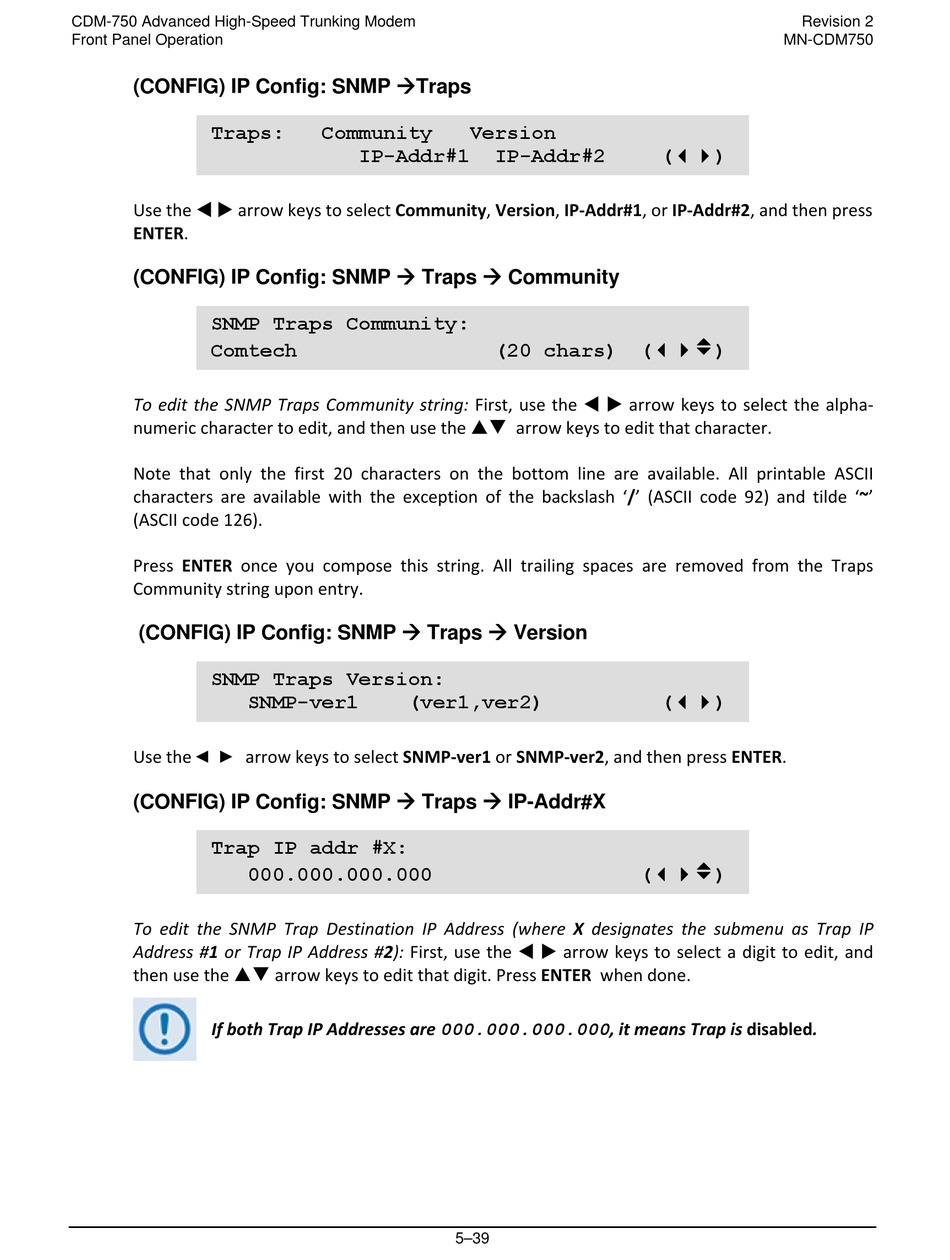

Comtech EF Data CDM-750 Installation And Operation Manual page 115

CDM-750 Advanced High-Speed Trunking Modem
Front Panel Operation
(CONFIG) IP Config: SNMP
Traps:
Use the arrow keys to select Community, Version, IP‐Addr#1, or IP‐Addr#2, and then press
ENTER.
(CONFIG) IP Config: SNMP
SNMP Traps Community:
Comtech
To edit the SNMP Traps Community string: First, use the arrow keys to select the alpha‐
numeric character to edit, and then use the
Note that only the first 20 characters on the bottom line are available. All printable ASCII
characters are available with the exception of the backslash '/' (ASCII code 92) and tilde '~'
(ASCII code 126).
Press ENTER once you compose this string. All trailing spaces are removed from the Traps
Community string upon entry.
(CONFIG) IP Config: SNMP
SNMP Traps Version:
SNMP-ver1
◄ ►
Use the arrow keys to select SNMP‐ver1 or SNMP‐ver2, and then press ENTER.
(CONFIG) IP Config: SNMP
Trap IP addr #X:
000.000.000.000
To edit the SNMP Trap Destination IP Address (where X designates the submenu as Trap IP
Address #1 or Trap IP Address #2): First, use the arrow keys to select a digit to edit, and
then use the
If both Trap IP Addresses are 000.000.000.000, it means Trap is disabled.
Traps
Community
IP-Addr#1
Traps
Traps
(ver1,ver2)
Traps
arrow keys to edit that digit. Press ENTER when done.
Version
IP-Addr#2
Community
(20 chars)
arrow keys to edit that character.
Version
IP-Addr#X
5–39
Revision 2
MN-CDM750
( )
